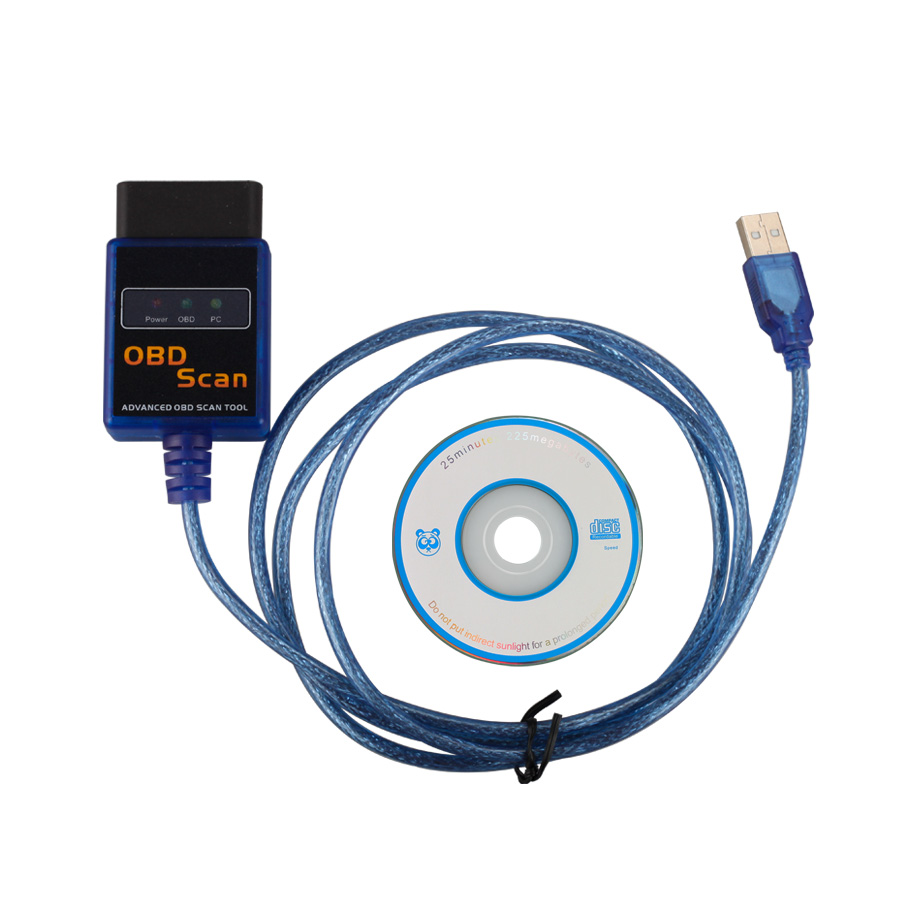

ELM327 Plastic OBDII EOBD CANBUS Scanner V1.5 with 2102 Chip
prev zoom next
ELM327 Plastic OBDII EOBD CANBUS Scanner V1.5 with 2102 Chip
  • Item NO. OBDAPK0162
  • History: 25 sold
  • Market Price: USD$12.00
    Shop Price: USD$10.00

    Quantity:

    Total:

  • Weight: 300.0g

    Rank: comment rank 5




  • Description:

    Attribute


     ELM327 Plastic OBDII EOBD CANBUS Scanner V1.5 with 2102 Chip


    Top 5 Reasons to Get Plastic USB ELM327:

    1. Supports protocols - ISO 9141-2 and ISO 14230-4 as well as CAN Bus ISO 15765-4.
    2. Internal EEPROM can remember the last protocol.
    3. Precision-moulded diagnostic connector made to fit all VW/Audi vehicles, even those with "tight" trim around diagnostic socket.
    4. ELM327 with USB port, software install easily.
    5. Voltage input monitors your vehicle's battery.

    USB ELM327 Technical Specifications:

    ELM327 Based - Datasheet
    OBDII Plug: J1962 16-Pin Male (to Car)
    USB Port : (to Computer or PDA)
    High quality UL certified USB Cable (equivalent to CE).
    CAN (ISO 15765-4)

    ISO 9141-2

    ISO 14230-4
    Automatically searches for the correct protocol or can be configured manually.
    USB Port
    Serial Interface uses AT commands to look like a modem.
    Status LED
    Length with USB Lead : 1.5 metres

    What's New for elm327:

    RS232 baud rates to 500 Kbps
    Adaptive Timing automatically adjusts ST timeouts
    Power up to AT MA is selectable
    Source (tester) address can be changed
    Can reset all PPs with a jumper
    Receive addresses can be independently set
    Power Control with a low power standby mode
    A 4800 baud ISO option
    A non-volatile memory location for storing user data
    CAN extended addressing support
    You can now perform ISO/KWP bus initializations without having to send a request
    An SS command allows searching through the OBD protocols sequentially
    A new TA command allows the Tester Address to be easily changed
    Factory calibration for the voltage reading circuit can be easily restored


    ISO 9141 and ISO 14230:


    The slow initiation address can now be varied
    Control over key word checking
    KWP protocols can now transmit 3 or 4 byte headers

    CAN:

    New J1939 protocol
    Two user-definable CAN protocols
    Improved error handling and recovery
    Extended addressing support

    How To Use USB ELM327?

    1. Turn the car's ignition switch ON. No need to start the engine.
    2. Start the software program, click "Options", select the correct communications port.
    3. Your interface now works! Make sure the software can reliably access all the control modules that it should in your car.

    Package List:

    1pc x ELM327 Interface
    1pc x CD Driver
