VVDI PROG Programmer

Latest Software Version: V3.4.0
Firmware Version: 1.2.2



Main Feature:

1. The built-in update software allows user to update VVDIProg firmware timely.
2. High-speed USB communication interface enable the software automatically connect.
3. Smart operation mode: the possible causes of error will be listed
4. Reserve ports: for future update.
5. The self-test function enable you check if the machine works well.
6. Can supply power via USB cable, the software will automatically prompt if the external USB power supply is needed.

Update Information:

V3.4.0  Update            (2015-09-10):

* This version DON't need update firmware

+ Add Porsche BCM (1L15Y/2M25J/5M48H) options

+ Add MC9S12XEQ512,MC9S12XET512 options in <2-MCU>-->Motorola

+ Add BENZ EIS-W203 in <4-IMMOBILIZER>

* Fix some display BUGs in EnglishVersion

* Change the name of upgrade button as "Start Firmware Upgrade"

* Change the Voltage name as "VCC" "VPP"



Adapters Detailed Description:

16Pin Locking Socket
Read the common EEPROOM, note: please insert the chip by following the below picture.


1.3.2 MCU Reflash Cable
Used to program MCU on board



1.3.3 ECU Reflash Cable
Used to program ECU

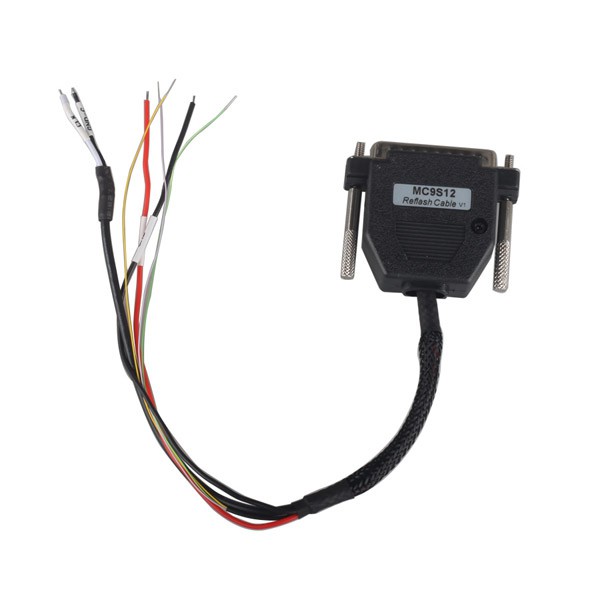

 1.3.4  MC9S12 Reflash Cable
Used to program MC9S12 series chip

Supported chip list

EEPROM

Manufactures	Types	Support	Remark
ATMEL	AT24CXX	R
	AT25XXX	R
	AT93CX6	R
BOSCH	B3XX	R
	B4XX	R
	B5XX	R
	B58XXX	R
CATALYST	CAT24CXX	R
	CAT24WXX	R
	CAT93CX6[A]	R
EXEL	XL[S]24CXX	R
	XL[S]93CX6	R
FAIRCHILD	FM24CXX	R
	NM24CXX	R
	NM93CX6	R
GRUNDIG	GRXX	R
HOLTEK	HT93CX6	R
MICROCHIP	24AAXX	R
	24[L]CXX	R
	93[L]CX6	R
	93AAX6	R
MITSUBISHI	M6M800X1	R
SEIKO	S-24CXX	R
	S-93CX6	R
ST	D80/D160	R	Can erase the first 32 bytes
	M35080	R	Can erase the first 32 bytes
NEC	M24CXX	R
ST	ST24CXX	R
	ST24EXX	R
	ST24WXX	R
	ST25CXX	R
	ST25EXX	R
	ST95P0X	R

Note: R means the type is supported, £ means the type will be supported soon in the future

MCU

Manufactures	Types	Support	Remark
MOTOROLA	MC9S12XEP	R	Can automatically determine D-FLASH/EEE space
	MC9S12XA	R
	MC9S12XB	R
	MC9S12XD	R
	MC9S12XDT	R
	MC9S12XDP	R
	MC9S12XDQ	R
	MC9S12DG	R
	MC9S12DT	R
	MC9S12P	R
	MC9S12H	R
	MC9S12HY	£
	MC9S12HA	£
	MC9S12HZ	£
	MC9S12XHZ	£
	MC9S12B	£
	MC9S12GC	£
	MC9S12XS	£
	MC9S12K	£
	MC9S12Q	£
	MC9S12C	£
	MC9S12P	£
	MC9HC(9)08	£
ATMEL	ATTINY	£
	ATMEGEA	£
NEC	uPD70F	£
ST	TMS370	£

Note: R means the type is supported £ means the type will be supported soon in the future.

 ECU

Manufactures	Types	Support	Remark
VAG	MED17.1-TC1796	£
	MED17.11-TC1796	£
	VAG MEG17.5-TC1766	£
	VAG MED17.5.1-TC1796	£
	VAG MED17.5.2-TC1767	£
	VAG MED17.5.5-TC1766	£
	VAG MED17.5.20-TC1766	£
	VAG EDC17 CP14/CP20-TC1796	£
	VAG EDC17 CP04-TC1796	£
	VAG EDC17 C46-TC1767	£
	VAG EDC17 CP24-TC1796	£
	VAG EDC17 CP44-TC1797	£
	VAG EDC17 U01-TC1766	£
	VAG EDC17 U05-TC1796	£
	VAG/Porsche Siemens Continental SDI 3- TC1796	£
BMW	MEVD172(N55)	R
	MEVD172P(N20)	R
	MEVD172G(N55)	R
	MEVD172S(N55)	R
	MEVD1724(N20)	R
	MEVD1725(N13)	R
	MEVD1726(N55)	R
	MEVD1729(N20)	R
	MEVD1728(N63/S63)	R

Note: R means the type is supported £ means the type will be supported soon in the future.

Package List:

Parts	Number	Remark
Programmer multiplexer	1
Square USB cable	1
SOP16 test socket	1
16pin converter	1	Support SOP/SOT/SSOP
MCU reflash cable	1
ECU reflash cable	1
MC9S12 reflash cable	1	Used to program MC9S12 series chip
12V3A power adapter	1	High quality power supply
