OEM Orange5 Professional Programming Device with Basic module
  • Item NO. OBDAPK0511
  • History: 3 sold
  • Market price:USD$335.98
    Shop price:USD$279.99

    Quantity:

    Total:

  • Freight Inquiry

    Weight:1.0Kg

    Rank:comment rank 5




  • Goods Brief:

    Attribute

    Video


     Original Orange5 Professional Programming Device


    Software Version: V1.34, Software Does not Support Update.

    Notice:It is just for booking now,will have stock on 19th,Apr.

    Language: English and Russian

    Additional Supported Software:

    Immo HPX 9V0
    NEC V850ES/SJ3 V850ES/SG3  UART
    NEC V850E2 NEW

    Software Licenses:

    MTRK (Included in Orange-5 base)
    TMS (Included in Orange-5 base)
    M08V NEW

    Orange5 Technical Info:

    * USB power supply (USB2.0/3.0)
    * Universal easy to plug panel ZIF16 for EEPROM
    * Control of contacts in the sockets

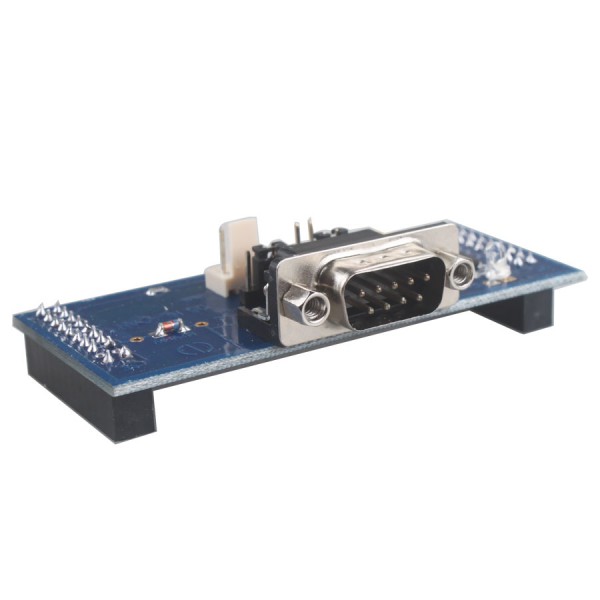

    * Two expansions compatible with Orange4 and Omega MTRK
    * Protection against overcurrent
    * Overload voltage protection
    * Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
    * Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
    * High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
    * Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
    * Capability of functional emulation of class CDC USB devices
    * Built-in 32-bit virtual machine
    * Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
    * Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
    - Installation and Work with Orange-5 under Windwos 7 and Windows 8.1

    CnCterm - Terminal program for work with COM ports.

    Feature:

    Supports any COM ports, incuding virtual ones from 1 to 20
    Works with text (ASCII) and HEX mode
    Creating a list of commands that allows editing and fast sending
    Fine-tuning the exchange rate
    Saving files including command and port settings.
    Saving incoming data in binary files
    File transfer via serial port.
    Delay settings for bytes and blocks
    "Echo" mode
    Delay settings between incoming data
    Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
    Program doesn't need to be installed
    Supports Orange5 programmer in emulation mode.

    Orange-5 Chip list v1.34 [November 2015]

    Immo HPX 9V0

    PCF
    PCF7941 Reset

    Alfa Romeo
    BSI
    147

    Audi
    BCM2
    Ver.1 uPD70F3239
    Ver.1 uPD70F3380
    Ver.2 uPD70F3380
    Ver.1 uPD70F3634
    Dash
    A2 VDO crypto 93C86
    A3 UKNSI 93C56
    A3 VDO '97/99 93C66
    A3 VDO crypto 93C86
    A3 MM 912DG128
    A4 UKNSI 0012-003 93C56
    A4 UKNSI 0014-001 93C56
    A4 UKNSI 0016-001 93C56
    A4 UKNSI '97/98 93C56
    A4 VDO '97/99 93C66
    A4 VDO '99/01 93C86
    A4 MM 912DG128
    A6 UKNSI 0012-001 93C56
    A6 UKNSI 0014-001 93C56
    A6 UKNSI 0016-001 93C56
    A6 VDO '97/99 93C66
    A6 VDO '99/01 93C86
    A6 VDO crypto 93C86
    A6 MM 912DG128
    S3/S6 MM 912DG128
    TT MM 912DG128
    Immo
    '94/97 4A0 953 234 93C46
    Delphi 8D0 953 234 93C46
    ECU
    '00/04 ECU EDC15 24C04
    A3 1.8T 0261204678 24C02
    A4 1.8T 0261204778 24C02
    A4 '02 8E0 909 xxx 95040

    ELV
    MC68HC908GR16A[4L35K]
    MC68HC908GR16A[0M76Z]

    BMW
    Dash
    Dash with M35080
    Immo
    EWS-3 HC11EA9 clips [0D46J]
    EWS-3 HC11EA9 wires [0D46J]
    EWS-3 HC11EA9 adap [2D47J]
    EWS-3+ HC11EA9 clip [0D46J]
    EWS-3+ HC11EA9 adap [2D47J]

    Chery
    All Chery with 0L72A
    All Chery with 0L59X

    Chevrolet
    Immo
    Captiva MC9S08DZ60 [3M05C]

    Chrysler
    Immo
    SKIM immobox 24C02
    Ram uPD70F3626

    Citroen
    BSI
    Berlingo 03/06 BSI v1 95160
    Berlingo 03/06 BSI v2 95160
    Berlingo 03/09 BSI v3 95160
    C2 '03/04 BSI 95160
    C3 '02/04 BSI v1 95160
    C3 '02/04 BSI v2 95160
    C5 '01/04 BSI 912DG128
    C5 '02/04 BSI 95160
    C8 '03/04 BSI 912DG128
    Picasso '03/04 BSI 95160
    Xsara II '01/03 BSI 95040
    Immo
    Berlingo Valeo 93C46
    Jumper '99/06 Delphi 93C56
    Jumpy 705E6 [F82B]
    Relay Delphi 93C56
    ECU
    Xsara ECU EDC15C2 95P08

    DAF
    Immo
    MC68HC908AZ60 [2J74Y]
    MC68HC08AZ32A [2L52H]

    Dodge
    Immo
    SKIM immobox 24C02

    Fiat
    Automotive K/CAN
    IMM 009.10
    BSI
    Albea 912DG128 [3K91D]
    Panda '02 BSI [1L40K]
    Stilo 912DG128 [3K91D]
    Stilo BSI [1K79X]
    Strada BSI [1K79X]
    Immo
    IMM001.11 [1K59H]
    IMM009.01 [1K59H]
    IMM009.01 [0L72A]
    IMM100.01 [1K59H]
    IMM110.01 [1K59H]
    Bravo 705E6 [G72G]
    Bravo 705E6 Clips [G72G]
    Bravo 08AZ32 [1H56A]
    Cinquecento '96 93C46
    Coupe '96 immobox BOSCH 93C46
    Ducato Delphi 93C56
    Marea 08AZ32 [1H56A]
    Punto 93C46
    Punto Delphi 93C66
    Scudo 705E6 [F82B]
    Palio '09 [0L72A]
    Seicento Delphi 93C56
    ECU
    Scudo '01 JTD EDC15C2 95P08

    Ford
    BSI
    Focus '03- 9S12XEP768 [5M48H]
    Dash
    4M5T MC9S12H128[1K78X]
    8VT4 MC9S12XHZ256[1M80F]
    ECU
    Focus '00 ECU 77012

    Gilera
    ECU
    Fouco 500 [ST10F269]

    Great Wall
    Immo
    With 0L72A

    Hyundai
    ECU
    Accent KEFICO ECU M95160
    Elantra KEFICO ECU M95160

    Honda
    Immo
    Acord '06 Immo HIS-5 93C46
    Legend '07 Immo HIS-5 93C46
    Valeo HC05B6 [0F10V]
    Valeo HC05B8 [3D33J]
    Valeo HC705B16 [0D28J]
    KEIHIN 38770-MFJ-D04 93C66

    Jeep
    Immo
    Grand Cherokee 08AZ32 0J66D
    Grand Cherokee '13 uPD70F3626
    Grand Cherokee '09 uPD70F3629
    SKIM immobox 24C02

    KIA
    Immo
    '99/01 Immobox 93C46
    ECU
    Cerato KEFICO ECU M95160

    Lancia
    Immo
    Kappa immobox BOSCH 93C46

    Mahindra
    Automotive K/CAN
    XYLO
    Mazda
    Immo
    Lucas 19AS HC05B8 [3D33J]
    SKLC
    2 '09- MC9S12XDT384
    Demio '09- MC9S12XDT384
    ECU
    6 ECU 93A66

    Mercedes Benz
    Immo
    Sprinter 05X16 [0D62J]
    Sprinter/Vito 08AZ32 [0J66D]
    Sprinter/Vito 08AZ32A [L52H]
    EZS
    W203 908AZ60 [1J35D]
    W203 908AZ60 [1J35D]
    W203 908AZ60 [4J74Y]
    W220 908AZ60 [1J35D&4J74Y]
    W639 Vito '03/up [1L02M]
    W639 Vito '03/up [3K85K]
    W639 Vito '03/up [4J74Y]

    Nissan
    Immo
    Immobox with TMS370Cx2x
    BSI
    Skyline [1L15Y] Wires
    Automotive K/CAN
    NATS-2 (Motorola)
    NATS-2+ 5WK4 652
    NATS-4 (TMS)
    NATS-5 (TMS)
    NATS-5 (ST)
    NATS-5 (TMS in 5WK48645)

    Opel
    Immo
    Immo HC05B6 [0F10V]
    Immo TMS370C002 (PLCC28)
    Immo 5WK4 7631[0L72A]

    Peugeot
    BSI
    307 '01/03 BSI 912DG128
    307 '01/03 BSI 912DG128A
    307 '02/05 BSI 95160
    807 '04/05 BSI 912DG128
    807 '05/06 BSI 95128
    Immo
    Boxer Delphi 93C56
    106 Valeo 93C46,
    Partner Valeo 93C46

    Piaggio
    Immo
    Vespa '95 AEC302C 705E6 [0F82B]

    Renault
    Immo
    Clio-I immobox Sagem 93C46
    Clio-II '98 BMT Sagem 93C46
    Kangoo immobox Sagem 93C46
    Master '99-01 immobox Sagem 93C46
    UCH
    Clio III Sport [3L91N]
    Megane [4L91N]
    IR key
    Clio key with MC68HC05K3

    Rover
    Immo
    Valeo HC05B6 [0F10V]
    Valeo HC05B8 [3D33J]
    Valeo HC705B16 [0D28J]
    EWS 9S12DG128 [3L40K]

    Seat
    Dash
    Cordoba VDO '99/01 93C86
    Cordoba VDO '03/05 93C86
    Cordoba MM 9S12H256
    Ibiza VDO '00 93C66
    Ibiza VDO '99/01 93C86
    Ibiza VDO '03/04 93C86
    Ibiza VDO crypto 93C86
    Ibiza MM 9S12H256
    Ibiza 6J0 920 801A 24C32
    Ibiza 6J0 920 802H 24C64
    Ibiza 6J0 920 804L 24C64
    Leon VDO v.1 93C86
    Leon VDO v.2 93C86
    Leon VDO v.3 93C86
    Leon VDO v.4 93C86
    Toledo VDO v.1 93C86
    Toledo VDO v.2 93C86
    Toledo VDO v.3 93C86
    ECU
    EDC15 '00/04 24C04
    EDC16U1 '04/06 95320
    EDC16U31 '03/05 95320

    Skoda
    Dash
    Fabia VDO '00/01 v1 93C86
    Fabia VDO '00/01 v2 93C86
    Fabia VDO '04 93C86
    Fabia VDO crypto 93C86
    Felicia VDO 93C66,
    Felicia VDO '01/02 93C86
    Oktavia VDO 93C66
    Oktavia VDO '00/05 93C86
    Oktavia VDO crypto 93C86
    Roomster VDO crypto 93C86
    SuperB VDO '02/04 93C86
    SuperB VDO crypto 93C86
    ECU
    '00/04 ECU EDC15 24C04
    '05/06 ECU EDC16U1 95320

    SsangYong
    Immo
    87110-0930 MSP430F1232
    87110-0910 MSP430F1232
    MSP430F1232 (universal)
    VDO MC68HC05B16 [0D60J]

    Suzuki
    Immo
    Baleno '99- 93C66
    Swift '99- 93C66
    Alto 24C01
    Ignis 24C01
    Jimny 24C01
    SX4 [0L72A]

    Toyota
    Immo
    Immobox 89780-12070 93C66
    Immobox 89780-20010 24C04
    Immobox 89780-42030 93C66
    ECU
    ECU 89661-50440 93C56

    VW
    BCM2
    uPD70F3634
    VW Beetle dash
    Beetle 912D60
    Beetle '03/05 912DG128
    Beetle 03/05 912DG128C L05H
    Beetle 05/06 9S12H256 K78X
    VW Beetle ECU
    Beetle EDC16U31 95320
    VW Bora dash
    Bora MOT'99/00 24C02
    Bora VDO 93C66
    Bora VDO '99/00 93C86
    Bora VDO '01 93C86
    Bora VDO '01/03 93C86
    Bora VDO '03/05 93C86
    VW Caravelle ECU
    T5 '04/06 EDC16U1 95320
    T5 '04/06 EDC16U31 95320
    VW Fox dash
    Fox MM 9S12H256
    VW Golf dash
    G4 MOT 24C02
    G4 MOT '01/03 24C08
    G4 BOSCH '02/03 24C08
    G4 VDO 93C66
    G4 VDO '99/00 93C86
    G4 VDO '01 93C86
    G4 VDO '01/03 93C86
    G4 VDO '02/03 93C86,
    G4 MOT addr.line 24C02
    G6 5K0 920 870C 24C32
    G6 5K0 920 872A 24C64
    G6 5K0 920 873A 24C64
    VW Jetta dash
    Jetta VDO '00 93C66
    Jetta VDO '99/01 93C86
    Jetta VDO '01 93C86
    VW Passat dash
    Passat B5 MM HC11KG4
    B5 VDO 93C66
    B5 VDO '99/01 93C86
    B6 VDO '01/02 93C86
    B6 VDO '03/04 93C86
    MOT addr. line 24C02
    VW Pointer dash
    Pointer '05/06 93C66
    VW Polo dash
    Polo VDO '01/02 93C86
    Polo VDO '01/04 93C86
    Polo VDO crypto 93C86
    VW Polo ECU
    Polo '04 ECU 1.4 MM 95320
    VW Sharan ECU
    Sharan '00/04 EDC15 24C04
    Sharan 06/07 EDC16U31 95320
    VW Touran ECU
    ECU EDC16U34 '06/07 95320
    VW Transporter dash
    T4 VDO '01/03 93C86
    T5 VDO '03/07 93C86
    VW Transporter ECU
    '00/04 ECU EDC15 24C04
    '03/06 ECU EDC16U1 95320
    '03/07 ECU EDC16U31 95320
    Immo
    Fox '08 Brazil 93LC56
    Immo HC05B6 [0F10V]
    Immo HC05B6 [0B91T]
    Immo HC05B8 [3D33J]
    Immo TMS370C002 (PLCC28)
    ECU
    00/04 ECU EDC15
    03/06 ECU EDC16U1
    03/07 ECU EDC16U31
    06/07 ECU EDC16U34

    EEPROM
    I2C
    24C01
    24C02
    24C04
    24C08
    24C16
    24C32
    24C65
    24C128
    24C256
    24C512
    24LC21

    MicroWire
    93C06
    93S06
    93C46
    93C46
    93S46
    93C56
    93C56
    93S56
    93C66
    93C66
    93S66
    93C76 WP0
    93C76 WP1
    93C76 WP0
    93C76 WP1
    93C86 WP0
    93C86 WP1
    93C86 WP0
    93C86 WP1

    4Wire
    59C11
    59C22
    64C10
    64C20
    64C40
    64C80
    SPI
    25C010
    25C020
    25C040
    25C080
    25C160
    25C320
    25C650
    25C128
    25C256

    Adesto
    AT25SF041

    AKM
    AK6410
    AK6420
    AK6440
    AK6480
    AK93C55
    AK93C65

    Altera
    EPCS1
    EPCS4
    EPCS16
    EPCS16
    EPCS128

    Amic
    A25L512
    A25L40
    A25L080
    A25L80
    A25L016
    A25L16
    A25L032
    A25LQ16
    A25LQ32

    Atmel
    AT17C65 FPGA configurators
    AT17C128
    AT17C256
    AT17LV65
    AT17LV128
    AT17LV256
    AT24C01
    AT24C01A
    AT24C02
    AT24C04
    AT24C08
    AT24RF08
    AT24C16
    AT24C164
    AT24C21
    AT24C32
    AT24C64
    AT24C128
    AT24C256
    AT24C512
    AT24C1024
    AT25010(8)
    AT25020(8)
    AT25040(8)
    AT25080
    AT25160
    AT25320
    AT25640
    AT25128
    AT25256
    AT25DF021
    AT25DF041
    AT25DF081
    AT25DF161
    AT25DF321
    AT25F512
    AT25F1024
    AT25F2048
    AT26DF081
    AT26DF161
    AT26DF321
    AT26F004
    AT34C02
    AT45D011 * Data Flash
    AT45DB011 *
    AT45D021 *
    AT45DB021 *
    AT45D041 *
    AT45DB041 *
    AT45D081 *
    AT45DB081 *
    AT45DB161 *
    AT59C11
    AT93C46
    AT93C56
    AT93C56A
    AT93C56B
    AT93C57
    AT93C66
    AT93C66A
    AT93C66B
    AT93C86

    BOSCH
    B34AB
    B43AB
    B46AJ
    B49AJ
    B52AP
    B54AH
    B81AB
    B58252
    B58253
    B58256
    B58258
    B58379
    B58380
    B58608
    B58813

    Catalyst
    CAT1023
    CAT1024
    CAT1025
    CAT24WC08
    CAT24FC32
    CAT24WC32
    CAT24C44
    CAT24WC64
    CAT25C32
    CAT34C02
    CAT35C102
    CAT35C102
    CAT35C104
    CAT35C104
    CAT59C11
    CAT64LC10
    CAT64LC20
    CAT64LC40
    CAT93C46
    CAT93C56
    CAT93C57
    CAT93C57
    CAT93C66
    CAT93C76
    CAT93C86

    Chingis
    Pm25LD512
    Pm25LD010
    Pm25LD020
    PM25LV512
    PM25LV010
    PM25LV020
    PM25LV040
    PM25W020

    Dallas/Maxim
    DS1307
    DS18B20
    DS18B20U (uSOP)
    DS18B20Z (SOIC)
    DS1973
    DS1990
    RW1990
    DS1992
    DS1993
    DS2401
    DS2430
    DS2432
    DS2433
    DS2502
    DS Id

    EON
    EN25B05
    EN25B05T
    EN25F10
    EN25P10
    EN25F20
    EN25B40
    EN25B40T
    EN25F40
    EN25F40 + OTP
    EN25S40
    EN25S40 + OTP
    EN25B80
    EN25B80T
    EN25D80
    EN25D80 + OTP
    EN25F80
    EN25F80 + OTP
    EN25T80
    EN25T80 + OTP
    EN25B16
    EN25F16
    EN25F16 + OTP
    EN25T16
    EN25T16 + OTP
    EN25QH16
    EN25QH16 + OTP
    EN25F32
    EN25F32 + OTP
    EN25M32
    EN25Q32
    EN25Q32 + OTP
    EN25B64 + OTP
    EN25Q64
    EN25Q64 + OTP

    ESMT
    F25L004A
    F25L08PA
    F25L016A

    EXEL
    XLS24C02
    XLS24C04
    XL93LC06
    XL93LC46A
    XL93LC46B
    XLS93LC46
    XL93LC56
    XL93LC56A
    XL93LC56B

    Fairchild
    FM24C02
    FM24C03
    FM24C04
    FM24C08
    FM24C09
    FM24C16
    FM24C17
    FM93C66
    FM93C66A
    NM24C02
    NM24C03
    NM24C04
    NM24C05
    NM24C08
    NM24C09
    NM24C16
    NM24C17
    NM24U17
    NM24C32
    NM24C65
    NM34C02
    NM34W02
    NM93C86

    Ford
    7002MN010
    77005MC
    77005PC
    77007MC
    77014

    Fujitsu
    MB85RC04
    MB85RC16

    GI
    BAW574252
    BAW658049
    ER59256
    ER59C11
    ER1400
    ER1450
    PCD85C82

    GigaDevice
    GD25Q40
    GD25Q80
    GD25Q16
    GD25Q32

    Grundig
    GRN-001
    GRN-002
    GRN-005
    GRS-003
    GRX-008

    HOLTEK
    HT93C46
    HT93C66

    Hynix
    H27U2G8F ECC
    HY27UF081G
    HY27UF081G ECC
    HY27UF084G 512MB, 4 pages
    HY27UF084G ECC 512MB, 4 pages
    HY27UH088G 1GB - 8 pages
    HY27UH088G ECC 1GB - 8 pages
    HY27US08121
    HY27US08121 ECC
    HY27US08281
    HY27US08281 ECC
    HY27US08561
    HY27US08561 ECC
    HY27UT084G 512MB, 4 pages
    HY27UT084G ECC 512MB, 4 pages
    HY27UT088G 1024MB, 8 pages
    HY27UT088G ECC 1024MB, 8 pages

    ITT
    NVM3060
    MDA2061
    MDA2062

    KHIC
    KH25L4005
    KH25L8036

    Macronix
    MX25L512
    MX25L1005
    MX25L2005
    MX25L2006
    MX25L2025
    MX25L2026
    MX25L4005
    MX25L4006
    MX25L8005
    MX25L8006
    MX25L1605
    MX25L1606
    MX25L1608
    MX25L1635
    MX25L1636
    MX25L3205
    MX25L3205D
    MX25L3205D + OTP
    MX25L3206
    MX25L6405D
    MX25L6405D + OTP
    MX25L6406
    MX25L6445
    MX25L6445 + OTP
    MX25L12805D *
    MX25L12835E
    MX25L12835E + OTP
    MX25L12845E
    MX25L12845E + OTP
    MX25L25635F

    MicroChip
    24LC00
    24LC01B
    24AA02
    24C02
    24LC02
    24AA04
    24C04
    24LC04
    24AA08
    24LC08
    24AA16
    24LC16
    24AA164
    24LC164
    24LC21
    24AA32
    24C32
    24LC32
    24LC64
    24AA65
    24LC65




    Contact Information:


    Whatsapp: +86-18627085849

    Live Support: Chat with us online

    E-mail: sale@obdtools.net

    Skype: jansonsh@hotmail.com


    If you have any problem, please do not hesitate to contact us.

    User Comment(Total0User Comment Num)

    • No comment
    Total 0 records, divided into1 pages. First Prev Next Last
    Username: Anonymous user
    E-mail:
    Rank:
    Content:
    Verification code: captcha
    Company Info
    Why Shop at obdtools.net
    About obdtools.net
    Working Hours
    Our Guarantee
    Payment & Shipping
    Delivery Options
    Payment Methods
    Shopping Guide
    Delivery Cost
    Customs & Import Tax
    Other
    Customer Service
    Contact us
    Forget your account password
    Track Your Order
    Tips to use OBDTOOLS.NET
    Company Policies
    Products Warranty
    Refund Policy
    Return Policy
    Privacy Policy
    Return for repair
    Other Business
    Dropship
    Wholesale
    Home | Shopping Guide | Delivery Options | Return Policy | Contact US | About
