ELM327 WiFi with Switch Work with iPhone OBD2
prev zoom next

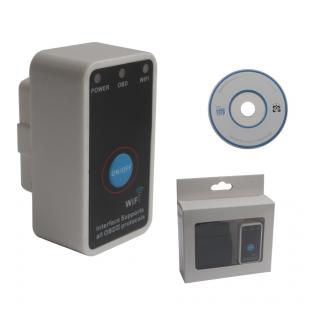

ELM327 WiFi with Switch Work with iPhone OBD2
  • Item NO. OBDAPK0080
  • History: 26 sold
  • Market Price: USD$33.60
    Shop Price: USD$28.00

    Quantity:

    Total:

  • Weight: 600.0g

    Rank: comment rank 5




  • Description:

    Attribute


    2014 New Arrival Code reader Diagnostic Tool Super mini ELM327 WiFi with Switch work with iPhone OBD-II OBD Can


    Software Version: V2.1
    Hardware version: V1.5

    Descriptions:
    WI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following protocols:
    ISO 9141
    ISO 11898(aka. CAN)
    ISO 14230(aka. KWP2000)
    ISO 15765(aka. CAN)
    SAE J1939

    WI-FI OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. WI-FI OBD AUTO CHECKER is measuring only 2.7 x 1.25x 0.9 inches. It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles. Connecting to your iPhone / iPod touch /iPad is made by WIFI connection in adHoc mode.

    Elder OBD compatible vehicles has a sticker indicates that the vehicle is OBD compatible.  Model year 1996 and newer vehicles are compliant by default, and will not have this sticker.

    Following are Some of The Parameters Which Could be Read From The Vehicle:
    Vehicle Speed
    RPM
    Fuel Consumption*
    Engine Coolant Temp
    Fuel Pressure
    Calculated Engine Load
    Throttle Position
    Intake Manifold Pressure
    Air Intake Temp
    Timing Advance
    Mass Air Flow
    Fuel Level
    Barometric Pressure
    EVAP System Vapor Pressure
    Fuel Trim

    Note: Your vehicle may not support all above parameters. How many parameters you can get is depended on the vehicle manufacturer’s implementation.

    Vehicles Supported

    Our device works on all 1996 to 2010 cars and light trucks sold in the United States, including:

    Acura
    Alfa Romeo
    Ariel Atom
    Aston Martin
    Audi
    Bentley
    BMW
    Buick
    Cadillac
    Chevrolet
    Chrysler
    Citroen
    Daewoo
    Daihatsu
    Daimler
    Dodge
    Ferrari
    Fiat
    Ford
    Geo
    GMC
    Holden
    Honda
    Hummer
    Hyundai
    Infiniti
    Isuzu
    Jaguar
    Jeep
    Kia
    Lamborghini
    Lancia
    Land Rover
    Lexus
    Lincoln
    Lotus
    Maserati
    Mazda
    McLaren
    Mercedes
    Mercury
    MG
    Mini
    Mitsubishi
    Nissan
    Oldsmobile
    Opel
    Pagani
    Panoz
    Peugeot
    Plymouth
    Pontiac
    Porsche
    Regal
    Renault
    Rolls-Royce
    Roush
    Rover
    Saab
    Saleen
    Saturn
    Seat
    Scion
    Shelby
    Skoda
    Smart
    Subaru
    Suzuki
    Tesla
    Toyota
    Triumph
    TVR
    Vauxhall
    Volkswagen
    Volvo
    Yugo
    ……
    ……





    Technical Specifications
    SSID: WiFiOBD
    IP: 192.168.0.10
    Subnet: 255.255.255.0
    Port: 35000
    Range: 50 ft (Line of sight)
    Antenna: Internal
    Power Consumption: 0.75 Watts (With Power Switch)
    Wifi Standard: 802.11a/b/g
    Operating Temperature: -15 to 100 Deg Celsius
    Plastic: Automotive Grade
    Physical Dimensions: 2.75 x 1.25 x 1.2 inches

    Compatible Software and Features:
    What features you can have depended on what software you install on iPhone /iPod touch /iPad/ PC. There are a lot of commercial or free software.
    The features of the software differ from one another. User should choose his own software by his preference. For more details about the software,
    please consult the software vendors.





    Contact Information:


    Whatsapp: +86-18627085849

    Live Support: Chat with us online

    E-mail: sale@obdtools.net

    Skype: jansonsh@hotmail.com


    If you have any problem, please do not hesitate to contact us.
