Original Launch X431 V(X431 Pro) Wifi/Bluetooth Tablet Full System Diagnostic Tool Multi-languages Support Online One-Click Update
  • Item NO. OBDAPK0144
  • Brand: Launch X431
  • History: 24 sold
  • Market Price: USD$1199.98
    Shop Price: USD$999.99

    Quantity:

    Total:

  • Weight: 5.0Kg

    Rank: comment rank 5




  • Description:

    Attribute


     Launch X431 V Wifi/Bluetooth Tablet Full System Diagnostic Tool


    Top 7 Reasons to Get Launch X431 V:

    1. Supported Languages:
    English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Japanese, Traditional Chinese
    2. Wi-Fi: Supported
    3. Bluetooth: Supported
    4. Dealer Code: 86A or 86K
    5. Easy to Update: Support Online One-Click Update, No Need to Download Software to CF Card.
    6. There is User Manual in the Multiplexer, you can check it when you use the device. it is in "cnlaunch" file.
    7. Built-in battery 3000mha, Endurance 4 hours


    Notice:
    1. When you receive the device, please pass us Serial Number, Country and Language you want, we will get you authorization first, after that, you can log on Launch DBSCar Website to register CC account and download software you want
    2. One Year free update, after 1 year update cost is 650USD

    Description:

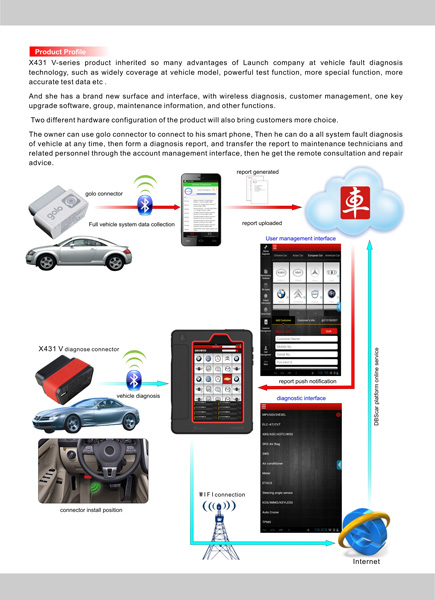

    Launch X431 V (X431 Pro) with Bluetooth/Wifi based on Android system, is a new car malfunction diagnostic device developed by Launch Tech for internet application. X-431 V completely substitutes X431 IV and X431 Diagun III. It passes on Launch advantages in car fault diagnostic technology, such as vast car model coverage, powerful test function, special function and accurate tast data, etc.,  X-431 V achieves the full car model and full system fault diagnosis through the bluetoooth communication between DBSCar connector and intelligent mobile terminal. X-431 V taking the advantage of mobile internet, can share maintenance data and case library, provide instant maintenance information, and build public and private maintenance social circle,etc.,thus lead to wide car diagnostic community.
    It is a typical diagnostic device contributed by Launch to diagnostic industry concerning internet application.

    X431 V Product Features:

    Panel PC: High configuration of hardware , fast running speed
    Capacitor Screen: Multi-touch capacitor screen, more smooth operation
    WIFI Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth
    Portable: Reasonable PDA design, small size for easy carry
    Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier
    Wifi communication: Support WIFI network
    Android System: Users can install and Android software
    Numerous Additional Functions: Photo, video, multimedia, other software application,etc.

    X431 V Original Supported Car Models:

    Acura, Changan, Daweoo, Gaz, Hafei, Huachen, Jiao, Lexus, Xiali, Xinkai, Benz, Fiat, Holden, Maruti, Opel, Peugeot, Saab, Ssangyong, Tata, Changhe, Flyer, GMSA, Infiniti, Mahindra, Perodua, Proton, Qirui, Tlisuzu, Zhongshun, EOBD2, Euroford, GM, Jagar, Renault, Smart, Sprinter, USA Ford, VAZ, VW, Changcheng, Dacia, Ford, HaoQing, Jinlong, Liuwei, Rover, ZhongTai, ZhongXing, Bxfiat, HM, Isuzu, Jacty, JPIsuzu, Mazda, Seat, Skoda, Suzuki, BMW, Daihatsu, Mitsubishi, Porsch, Toyota, Volvo, Audi, Chrysler, Citroen, Hyundai, Kia, Lancia, Landrover, Nissan, Romeo and Subaru.

    Pannel PC Parameters:

    Operating System: Android
    CPU: Dual core 1GHz
    Battery: 3000mh, rechargeable polymer lithium battery
    Standby time: it is subject to the using environment. Generally it can keep working for 4 hours.
    Extension memory card: 32G Micro SD(TF) card supported
    Memory: 512MB
    Storage capacity: 2GB
    LCD: 7.0 inch
    LCD resolution: 1024X600
    Touch screen: 5 points capacitive touch screen
    Cameras: 2 mega rear and 0.3 mega front
    Working temperature: -10°C ~ 55°C (14°F to 131°F)
    Storage temperature: -20°C ~ 70°C (-4°F to 158°F)

    DBSCar Connector Parameters:

    Working Voltage: 9 ~15V
    Average working current: about 35mA
    Standby current: about 25mA
    Working temperature: -20 to 55°C (-4°F to 131°F)
    Storage temperature: -30 to 70°C (-22°F to 158°F)
    Storage humidity: <80%
    Working humidity: <60%
    Net weight: about 26g
    Bluetooth Distance: 10M (without obstacle)

    What is Difference Between X431 V and X431 IV?

    Operation System:
    X431 IV: LINUX
    X431 V: Android

    Screen
    X431 IV: LCD Touch with backlight, 240*320
    X431 V: 7 inch Capacitive Touch

    Processor:
    X431 IV: 72MHz 32-bit ARM7
    X431 V: 1GHz Dual Core

    Memory:
    X431 IV: 16M
    X431 V: 512M

    Storage:
    X431 IV: 1GB CF Card
    X431 V: 2GB, extendible to 32G

    Battery
    X431 IV: No
    X431 V: 3000mAh, Endurance: 4h

    Printer:
    X431 IV: Thermal Printer
    X431 V: NO

    Diagnostic Method:
    X431 IV: Test Cable
    X431 V: Bluetooth/WIFI

    Diagnosis
    X431 IV: Wired diagnosis, independently diagnose full system and analysis & display through smart terminal.
    X431 V: Bluetooth diagnosis, independently diagnose full system and analysis & display through smart terminal

    Diesel Vehicle
    X431 IV: Yes, 12V
    X431 V: NO

    Upgrade method
    X431 IV: Download to CF Card
    X431 V: Online one-click upgrade

    Multi Group Display
    X431 IV: 2
    X431 V: 4,6,12

    Camera:
    X431 IV: NO
    X431 V: Front: 0.2 megapixel, Rear: 2.0 megapixel

    Startup Time:
    X431 IV: 35s
    X431 V: 25s

    Picture/Audio/Video/Instant Chat
    X431 IV: NO
    X431 V: YES

    Design Feature:
    X431 IV: Encapsulate design at side and bottom, anti-knock, powerful function, economical cost
    X431 V: Tablet, Multi-touch, Customer Management

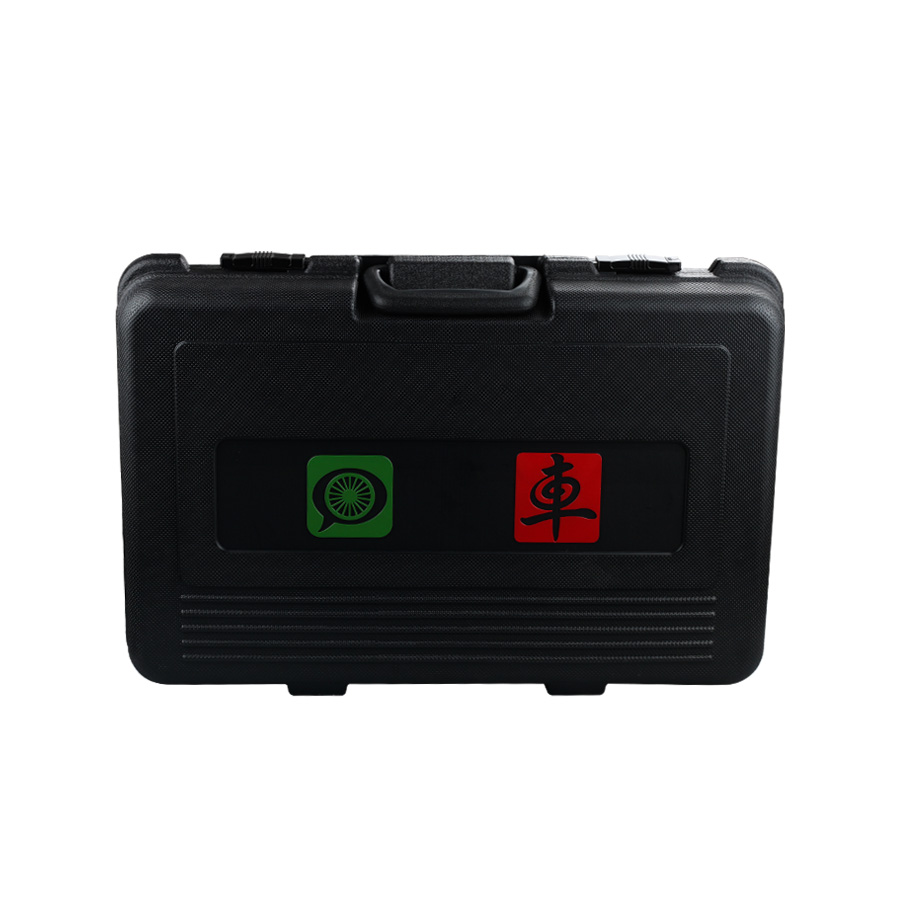

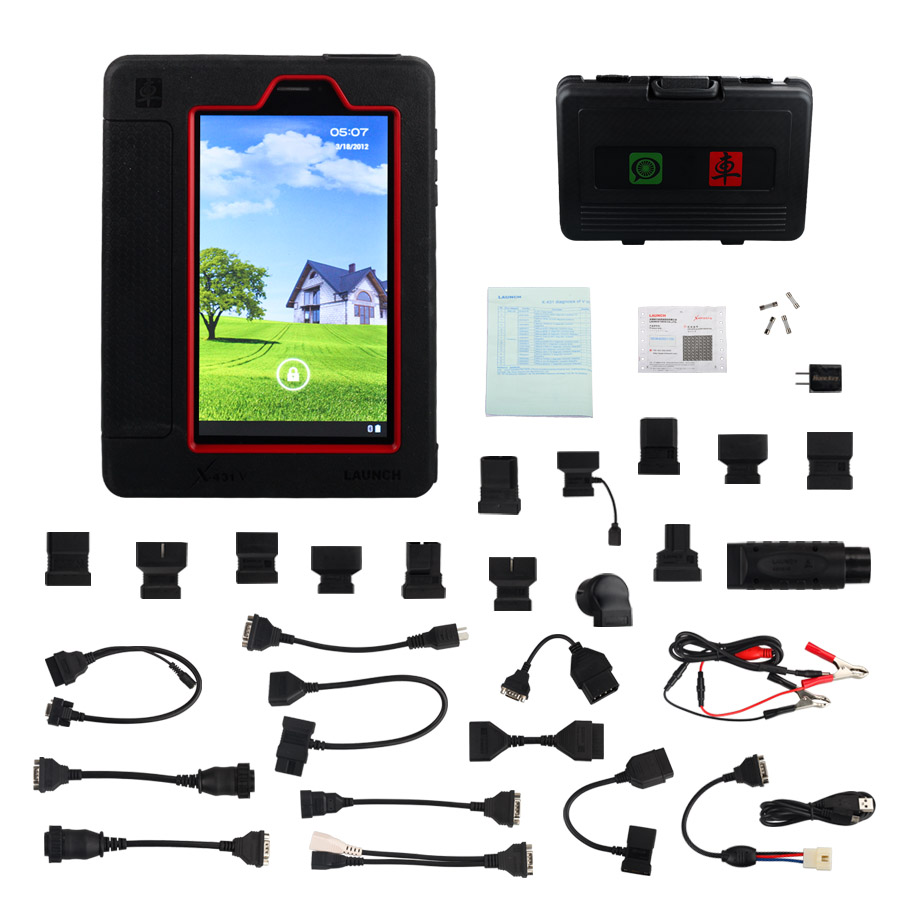

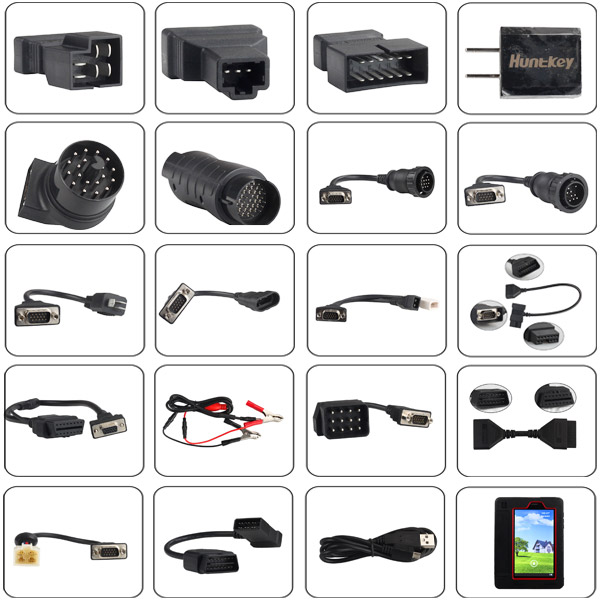

    Packing List:

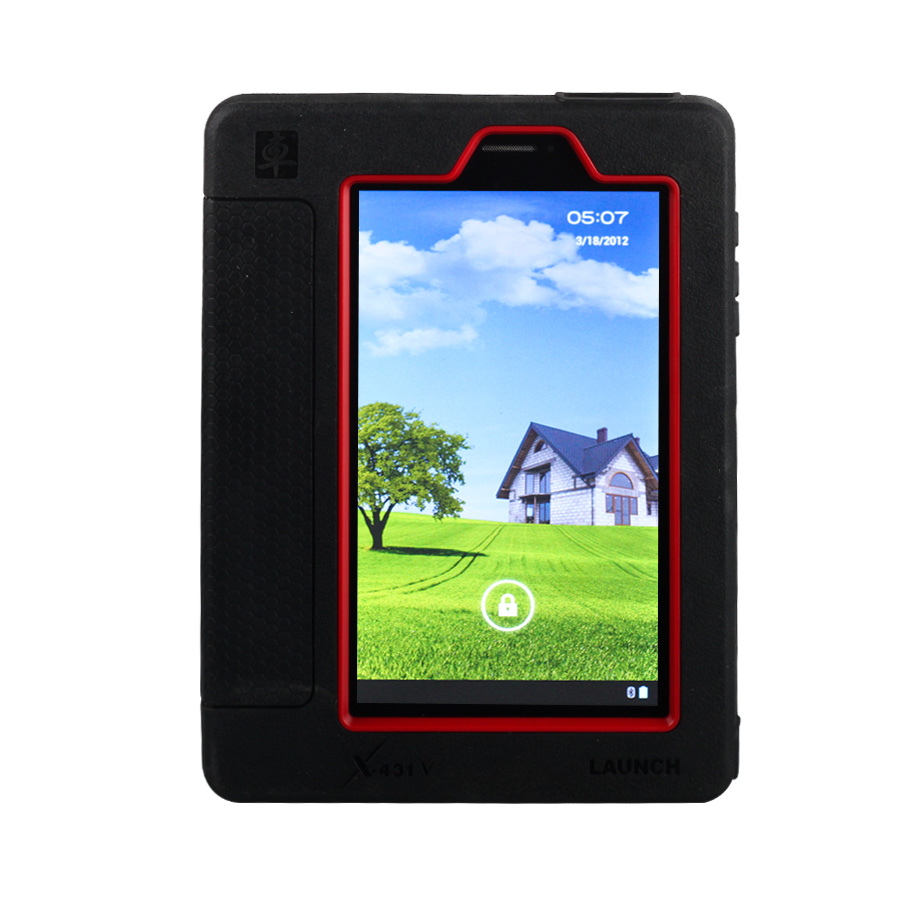

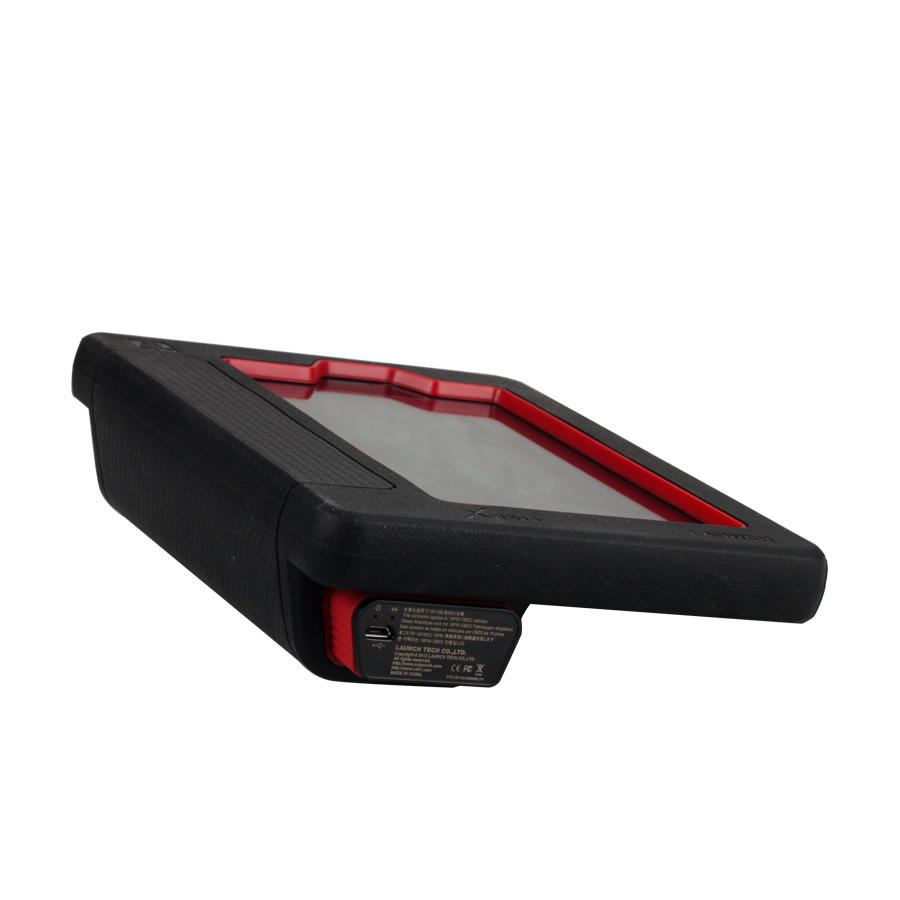

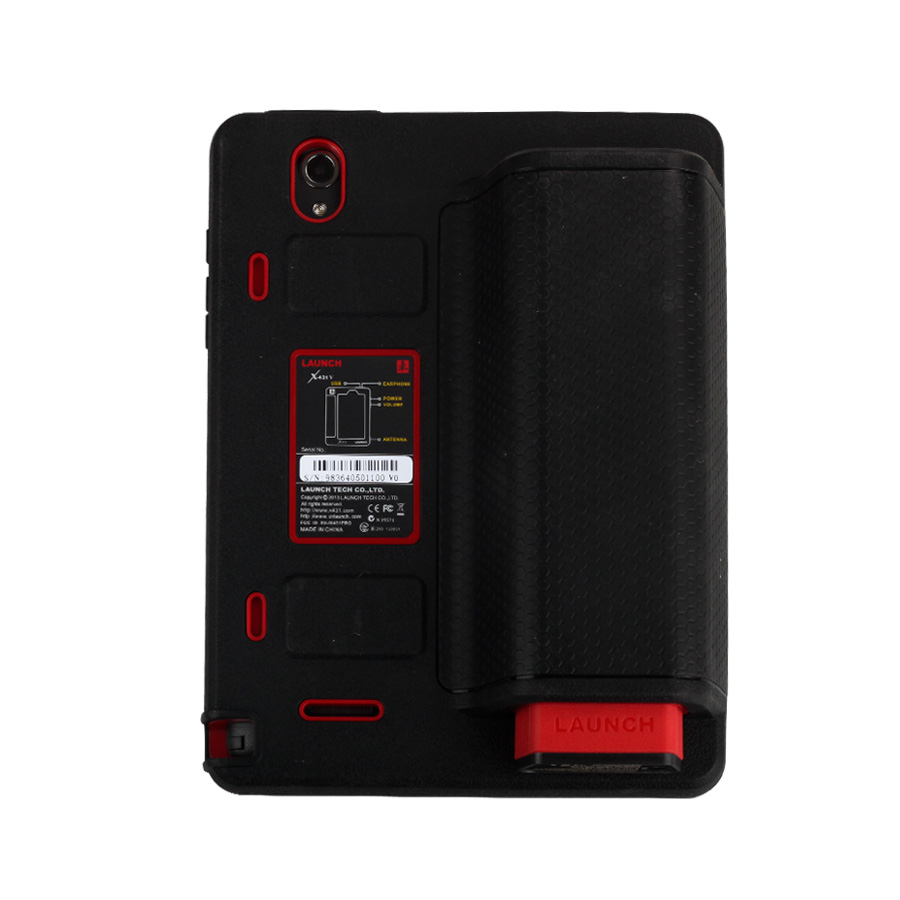

    X-431 V Pad Computer

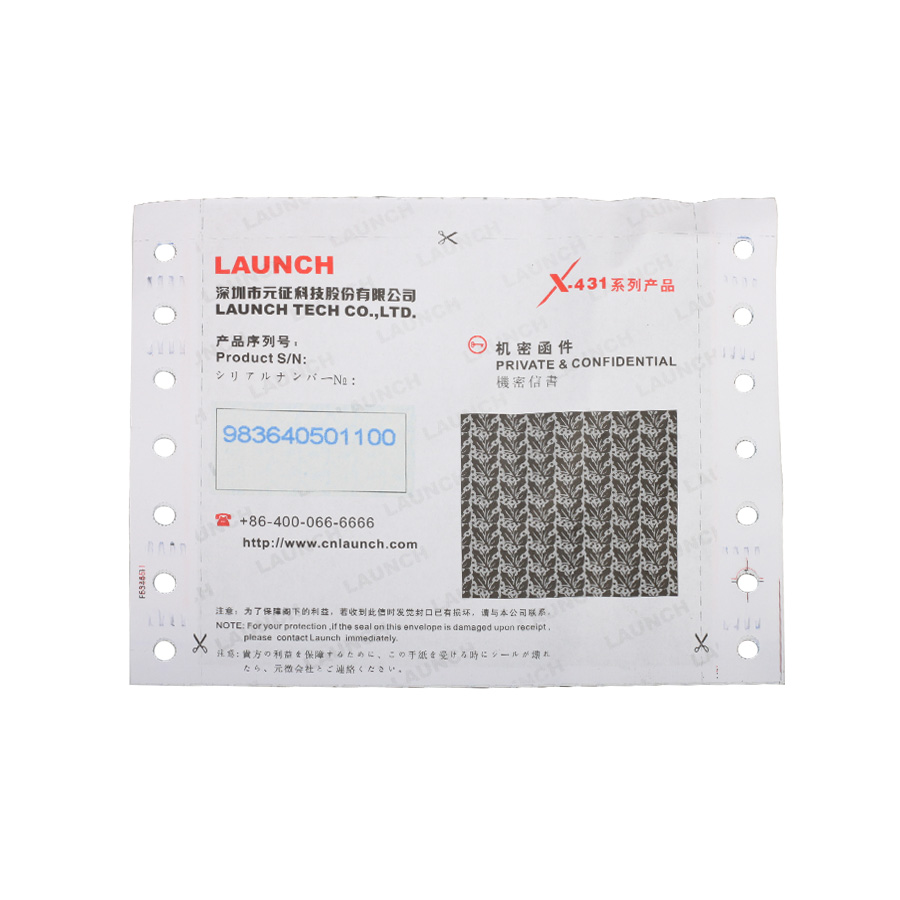

    Password Envelope
    X-431 V Protection Sleeve

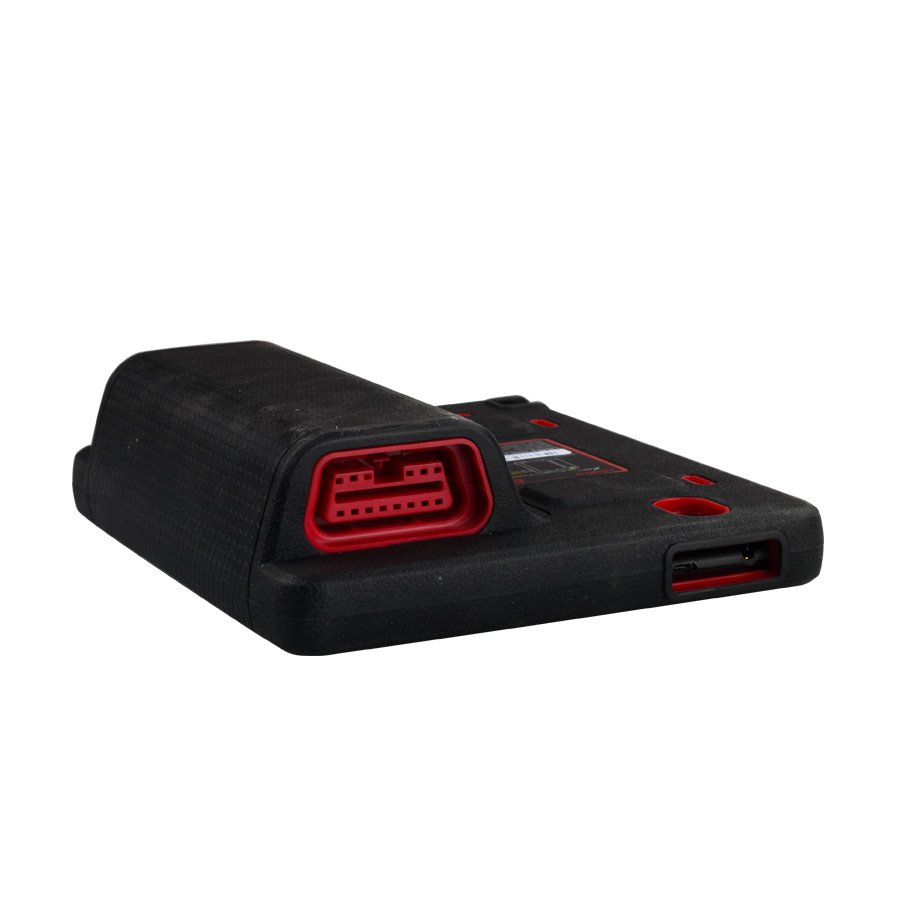

    DBScar Diagnostic Connector

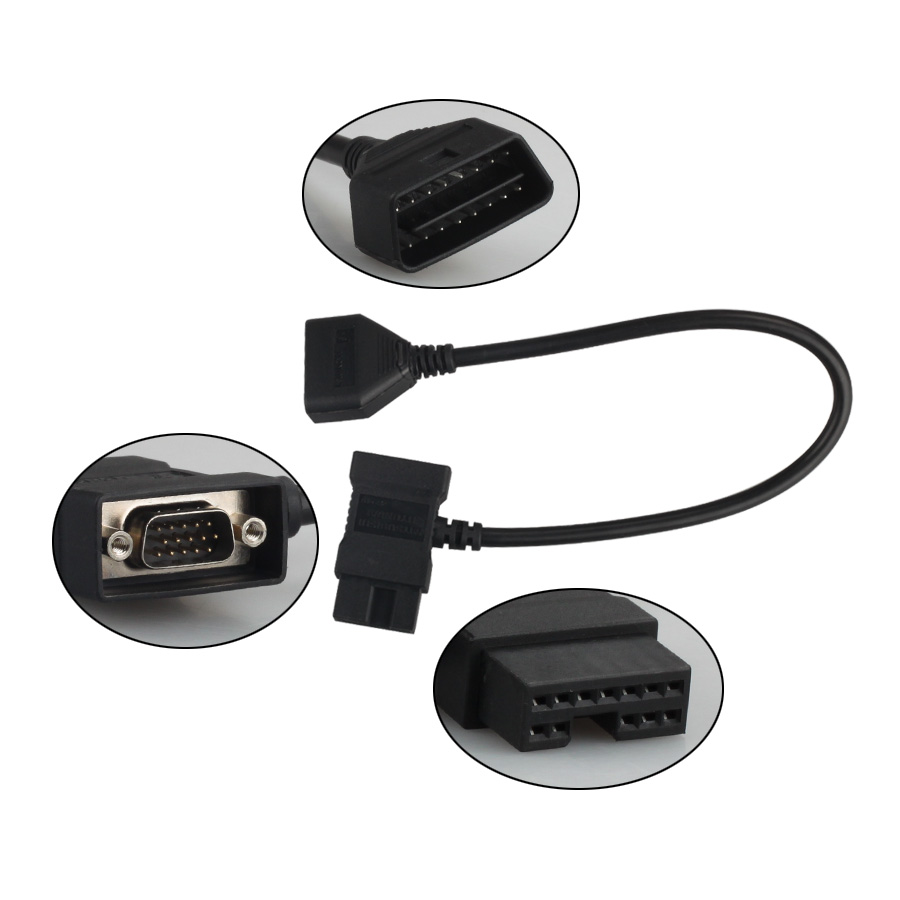

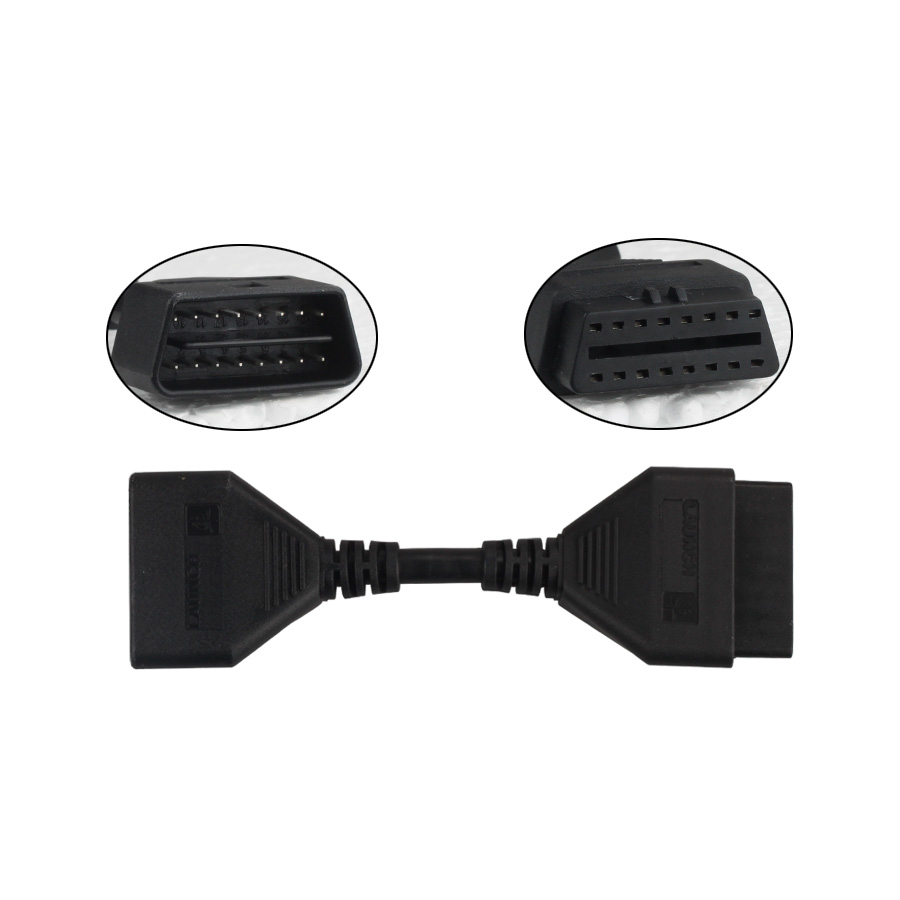

    OBD II Extension Cable
    Cigarette Lighter Cable
    Power Adaptor
    USB Data Cable
    Non-16Pin Connector

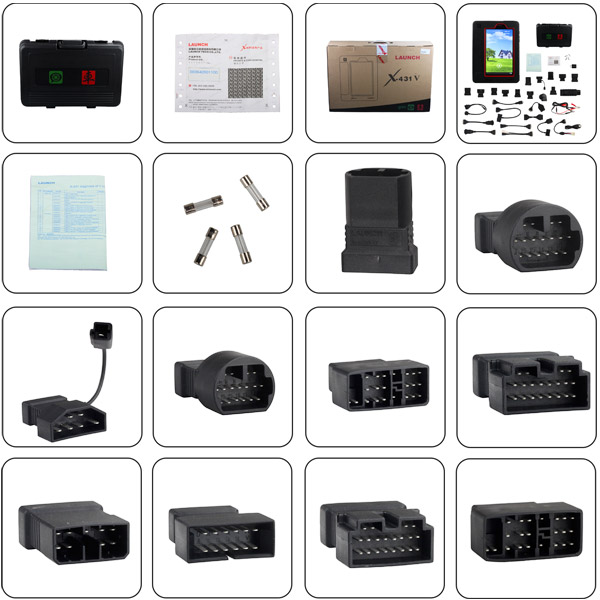

    Launch X431 V-1

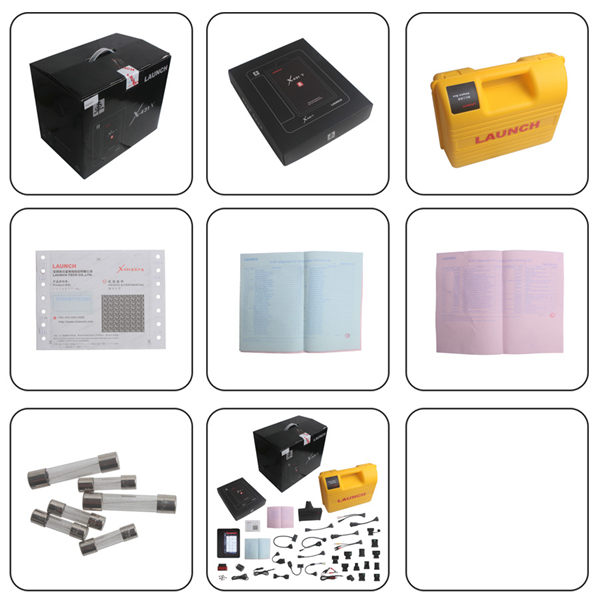

    launch X431 V Package List-1
    launch X431 V Package List-2
    launch X431 V Package List-3
