Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM
  • Item NO. OBDAPK0836
  • History: 66 sold
  • Market price:USD$3911.99
    Shop price:USD$3259.99

    Quantity:

    Total:

  • Freight Inquiry

    Weight:9.5Kg

    Rank:comment rank 5




  • Goods Brief:

    Attribute

    Video

    Download

    Auro OtoSys IM600 Diagnostic Key Programming ECU Coding Tool Same as Autel MX808IM Free Update online For 1 year



    Auro presents the OtoSys IM600 as the most advanced and smart key programming tool that combines the most powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android based 10.1-inch touchscreen tablet. With the included key programmer UP400, OtoSys IM600 is destined to be the unprecedented key programming tool that you ever wanted!

    Top Features of Auro IM600

    • ● Support IMMO functions for over 80 worldwide makes and models.
    • ● Equipped with UP400 to support PIN/CS read, transponder read/write/identification, MCU/EEPROM chip read/write and IMMO ECU Reset/Adaption.
    • ● Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes.
    • ● Complete capabilities for codes, live data, actuation tests, adaptations.
    • ● Displays live data in text, graph, analog and digital gauge for easy data review and analysis.
    • ● Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time.
    • ● Quick access for more than twelve common service functions including Oil reset, EPB, DPF, BMS, SAS, TPMS and more.
    • ● Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes.
    • ● Remote technical support for convenient demonstration, training and increased customer satisfaction.
    • ● Print out recorded data anytime and anywhere with Wi-Fi technology.
    • ● Automatic Wi-Fi updates available in new software releases.

    Auro IM600 Tablet Outlook

    • ● Functional Description

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    1. 1. 10.1-inch LCD Capacitive Touch screen
    2. 2. Ambient Light Sensor – detects ambient brightness.
    3. 3. Power LED – indicates battery level & charging or system status.
    4. 4. Microphone



    The power LED displays green, yellow or red depending on power level and operating state.

    1. 1. Green

         Illuminates green when the Display Tablet is charging and the battery level is above 90%.

         Illuminates green when the Display Tablet is powered on and the battery level is above 15%.

    1. 1. Yellow

         Illuminates yellow when the Display Tablet is charging and the battery level is below 90%.

    1. 1. Red

         Illuminates red when the Display Tablet is powered on and the battery level is below 15%.



    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    1. 5. Collapsible Stand – extends from the back to allow hands-free viewing of the Display Tablet.
    2. 6. Built-in Battery
    3. 7. Loudspeaker
    4. 8. Camera Lens
    5. 9.Camera Flash



    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    1. 10. DC Power Supply Input Port
    2. 11. Headphone Jack
    3. 12. USB Port
    4. 13. HDMI (high-definition multimedia interface) Port
    5. 14. USB Port
    6. 15. Mini USB Port
    7. 16. Lock/Power Button – turns the device on & off with long press, or locks the screen with short press.

    Auro IM600 VS Auro IM100

    First of all, post a table to compare Auro IM100 and Auro IM600 to see how powerful IM600 is.

      OtoSys IM100 OtoSys IM600
    IMMO
    Smart Mode (Guided and Automated Key Learning Function)
    Auto Detect Make/Model/Year/System
    Read PIN/CS
    Read PIN/CS (All Keys Lost)
    Key Learning
    IMMO ECU Reset/Adaption
    IMMO ECU Refresh/Coding
    Remote Learning
    AUDI Q5/A4/A5 2015-2017 Read PIN/CS ×
    BMW FEM/BDC Key Learning and Adaption
    Mercedes Key Learning ×
    Programming
    EEPROM Read/Write
    MCU Read/Write Basic Advanced
    Key Programming
    IC Card Read/Write ×
    Mercedes Infrared Key Read/Write ×
    Remote Frequency Detect ×
    OE-Level Diagnostics
    All Systems for Over 80 Makes and Models
    OtoFlash (J2534 ECU Reprogrammer) ×
    Advanced Service Functions
    Oil Serive Reset
    Parking Brake Pad Relearn After Replacement
    Steering Angle Sensor Relearn
    Battery Registration and Reset
    Diesel Particulate Filter Regeneration
    Tire Pressure Monitoring System
    ECU Coding ×
    VW/Audi Component Protection ×
    Complete Service Functions ×
    Tool Features
    Built-in Rechargeable Li-ion Battery 5000 mAh 15000 mAh
    Internet Updatable Wi-Fi Wi-Fi
    Multilingual Support
    Limited One Year Warranty
    Touchscreen 7-inch 10.1-inch
    Memory 32 GB 64 GB
    Processor Quad-core processor Hexa-core processor
    Camera × 8.0 Megapixel
    Resolution 1024×600 1920×1200

    Official website: www.aurodiag.com
    Update Online: 1 Year for Free
    Language: English



     Photos we took in the factory:




    auro-otosys-im600-scanner-7
    auro-otosys-im600-scanner-9

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM







    Auro IM600 Functions Overview

    Note: if you want to check the detail vehicle model workable function list, please click Auro OtoSys IM600 Function and Vehicle Model List



    Smart Mode

    • Smart Mode for guided and automated key learning

    Expert Mode for key learning functions, including:

    Read PIN/CS

    Read PIN/CS (All Keys Lost)

    IMMO ECU Reset/Adaption

    IMMO ECU Reflash/Coding

    Remote Learning

    Backup/restore EEPROM data

    Backup/restore IMMO data

    BMW FEM/BDC Key Learning and Adaption

    Audi Q5/A4/A5 2015-2017 Read PIN/CS



    Reliable Programming Tool

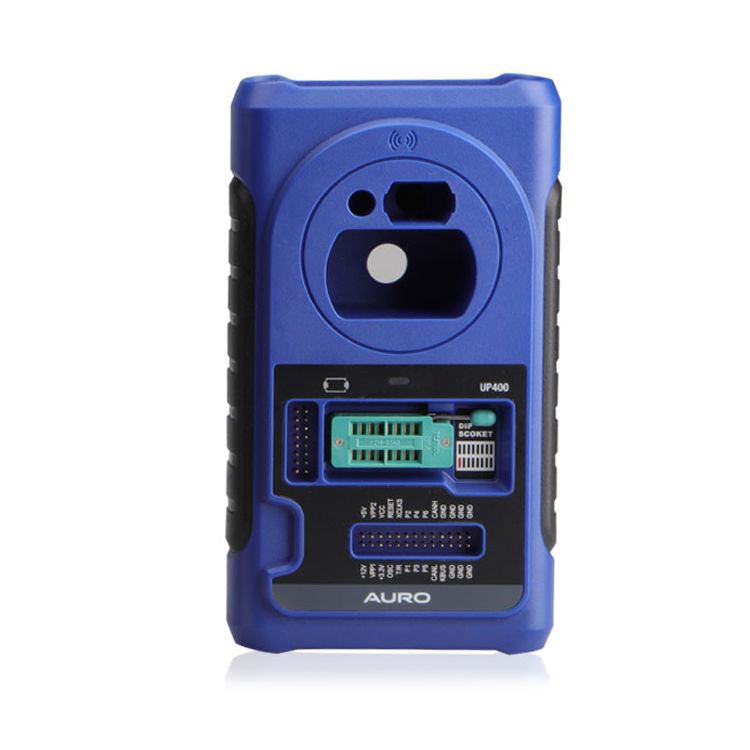

    Equipped with the competent key programmer UP400, the OtoSys IM600 is a reliable key and chip programming tool that covers most of the aftermarket keys and fobs as well as MCU & EEPROM chips.

    • ● Key read/write
    • ● MCU & EEPROM chips read/write
    • ● IC card read/write
    • ● Remote control frequency detect
    • ● Mercedes infrared key read/write



    IM600 Advanced Service Functions:

    The OtoSys IM600 offers time-saving shorcuts to access all the commom service functions with one touch of the screen.

    Direct access to complete service functions including:

    • ● Relearn parking brake pad after replacement (EPB)
    • ● Support forced DPF regeneration and adjusting injectors (DPF)
    • ● Reset Steering angle sensor (SAS)
    • ● Reset service mileage and service intervals (Oil Reset)
    • ● Support TPMS sensor relearn (TPMS)
    • ● Support battery registration and reset (BMS)

    and more

    Auro OtoSys IM600 Specification:

    Operating System Android™ 4.4.2, KitKat
    Processor Samsung Exynos hex-core Processor
    (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
    Memory 2GB RAM & 64GB On-board Memory
    Display 10.1-inch LED capacitive touch screen with 1920×1200 resolution
    Connectivity Wi-Fi (802.11 a/b/g/n/ac)
    USB 2.0
    BT v.2.1 + EDR
    SD Card (Support up to 32GB)
    HDMI
    Camera (rear) 8.0 Megapixel, AF with Flashlight
    Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
    Audio input/output Microphone
    Dual Speakers
    3-Band 3.5 mm stereo/standard headset jack
    Power and Battery 15000 mAh 3.8 V lithium-polymer battery
    Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
    Input Voltage 12 V (9-24 V)
    Power Consumption 6.5 W
    Operating Temp. 0 to 50°C (32 to 122°F)
    Storage Temp. -20 to 60°C (-4 to 140°F)
    Dimensions (W x H x D) 300 mm (11.81”) x 220.0 mm (8.66”) x 50.0 mm (1.97”)
    Weight NW: 1.42 kg (3.13 lb.)
    GW: 8.655 kg (19.08 lb.)
    Protocols ISO9141-2, ISO14230-2,ISO15765-4, K/L-Line,
    Flashing Code,SAE-J1850 VPW, SAE-J1850PWM,
    CAN ISO11898, Highspeed, Middlespeed,
    Lowspeed and Singlewire CAN,GM UART,UART
    Echo Byte Protocol,Honda Diag-H Protocol, TP2.0,
    TP1.6SAE J1939, SAE J1708, Fault-Tolerant CAN

    Official website: www.aurodiag.com
    Update Online: 1 Year for Free
    Language: English

    Built with both busy technicians and professional locksmith in mind, Auro comes up with in the innovative Smart Mode and Expert Mode solution in one tool. With the help of the automated and guided Smart Mode, busy technicans can now confidently work with OEM and aftermarket keys and fobs. While the professional locksmith are still open to the choice of jumping between the functions they desire with the Expert Mode.

    ●Over 80 worldwide vehicle coverage

    ●Smart Mode for guided and automated key learning

    ●Expert Mode for advanced key learning functions, uncluding:

    Read PIN/CS
    Read PIN/CS (All Keys Lost)
    IMMO ECU Reset/Adaption
    IMMO ECU Reflash/Coding
    Remote Learning
    Backup/restore EEPROM data
    Backup/restore IMMO data
    BMW FEM/BDC Key Learning and Adaption
    Audi Q5/A4/A5 2015-2017 Read PIN/CS

    Reliable Programming Tool

    Equipped with the competent key programmer UP400, the OtoSys IM600 is a reliable key and chip programming tool that covers most of the aftermarket keys and fobs as well as MCU & EEPROM chips.
    ●Key read/write

    ●MCU & EEPROM chips read/write

    ●IC card read/write

    ●Remote control frequency detect

    ●Mercedes infrared key read/write

    IM600 Advanced Service Functions:

    The OtoSys IM600 offers time-saving shorcuts to access all the commom service functions with one touch of the screen.

    ●Direct access to complete service functions including:

    ●Relearn parking brake pad after replacement (EPB)

    ●Support forced DPF regeneration and adjusting injectors (DPF)

    ●Reset Steering angle sensor (SAS)

    ●Reset service mileage and service intervals (Oil Reset)

    ●Support TPMS sensor relearn (TPMS)

    ●Support battery registration and reset (BMS)

    and more






    Comparison:

    Special Declaration:

    Some of the listed functions are manufacture dependent. The functions and vehicle coverage expand with new update release

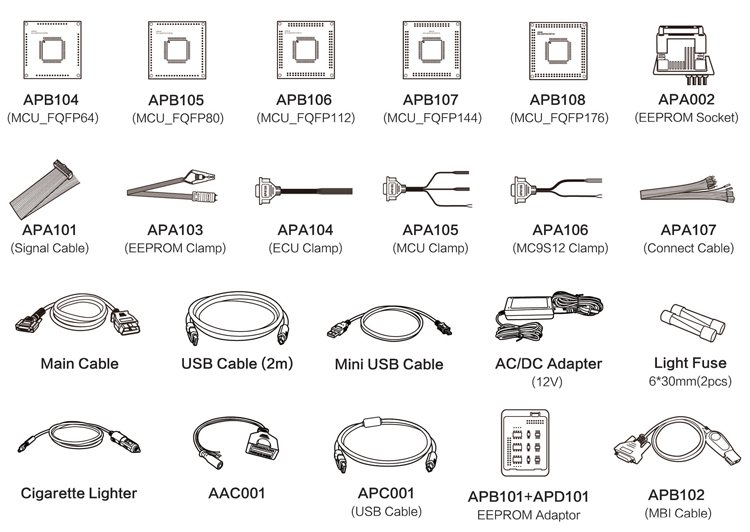

    Package List:

    1pc x OtoSys IM600 main unit
    1pc x Main cable
    1pc x USB External Power Adaptor
    1pc x Mini USB Cable
    1pc x AAC001 Adapter
    1pc x APA002 Adapter
    1pc x AC/DC Adapter
    1pc x APA101 Adapter
    1pc x APA103 Adapter
    1pc x APA104 Adapter
    1pc x APA105 Adapter
    1pc x APA106 Adapter
    1pc x APA107 Adapter
    1pc x APB101+APD101 Adapter
    1pc x APB102 Adapter
    1pc x APB104 Adapter
    1pc x APB105 Adapter
    1pc x APB106 Adapter
    1pc x APB107 Adapter
    1pc x APB108 Adapter
    1pc x APC001 Adapter
    1pc x Cigarette Lighter
    1pc x Light Fuse

    Auro OtoSys IM600 Diagnostic Key Programming and ECU Coding Tool Update Online Same as Autel MX808IM

    AURO OtoSys IM600
    AURO OtoSys IM600
    AURO OtoSys IM600 cable connect
    AURO OtoSys IM600 cable connect
    AURO OtoSys IM600 cable connect

    APD101/APA002
    APD101/APA002

    APB104-APB108
    APB104-APB108
    APB104-APB108

    APA104
    APA104

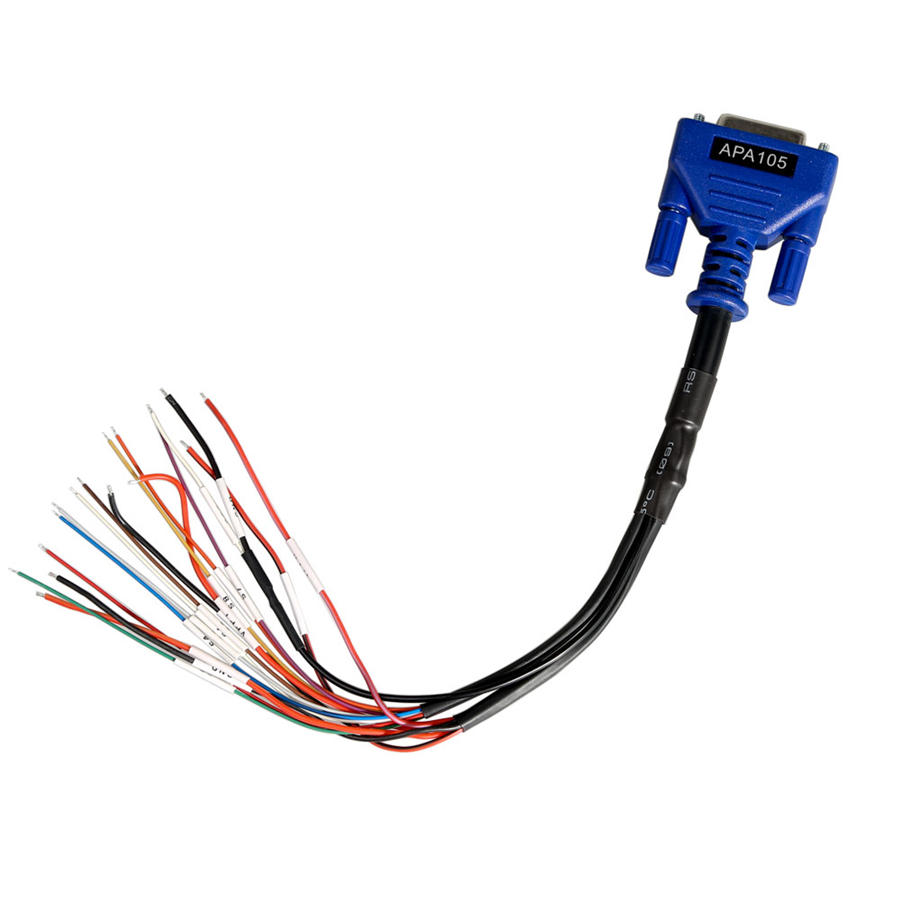

    APA105
    APA105

    APA106
    APA106

    APA103
     APA103
     APA103
     APA103

    APB102
    APB102

    APA101 APA107
    APA101 APA107

    AAC001
    AAC001

    auro otosys im600
    auro otosys im600
    auro otosys im600
    auro otosys im600
    auro otosys im600
