Download

  xhorse-vvdi-key-tool-user-manual.pdf

  vvdi-key-tool-remote-unlock-wiring-diagram.pdf

  vvdi-key-tool-vehicle-type.pdf

Original Xhorse VVDI Key Tool Remote Key Programmer Specially for America Cars

Top 6 Reasons to Get VVDI Key Tool:

1. Latest version: V2.3.9,Firmware Version: 1.1
2. Xhorse VVDI Key Tool remote maker supports most common remote types in the market; it is reliable and easy to use.
3. VVDI key tool remote generator can perform these functions:edit transponder, clone transponder, test frequency, clone Remote, generate remote, generate garage door remote controller, unlock smart card etc.
4. In a word, Xhorse VVDI Key Tool is a device with multi-functions.
5. With VVDI Key Tool Adapters, can renew different kind of original used remote key(The Adapters need to buy separately,not include in the package).
6. Specially for America Cars, if you want for European cars, please choose VVDI Key Tool European Version

VVDI KEY TOOL APP latest version update (IOS version 1.2.0 Android version 1.2.1)
---------------------------------------------------------
IOS update
APP available only after update
1.add query bonus points function;
2.prepare remote add feedback function;
3.optimized interface.

Android update
Android system 8.0 version might be with problem when updating, if update failed please search VVDI or KEY TOOL to download the latest APP version at google play.
1.add query bonus points function;
2.prepare remote add feedback function;
3.optimized interface.
4.fix 96bit copy 48 online calculation problem
5.fix other bugs

Notes: please use the latest software version.
IOS please download from APP store search 'VVDI' or 'KEYTOOL'
Android download from google play search 'VVDI'

Free Download:

VVDI Key Tool Unlock Wring Diagram
VVDI Key Tool Vehicle List
VVDI Key Tool V2.3.9 Update Tool Software

Xhorse VVDI Key Tool Function:

Eifficiency Device,simple and easy for getting your work
Support nearly all common remote types that can be generated in the market

Transponder Edit
Support data edit of 36 46 47 60 70 common transponder & prepare parts of special transponder.

Transponder IC Duplicate
Support 46 42 11 12 4D immobilizer transponder IC duplicate.

Frequency & Power Measure
Support frequency test of 27-900MHz & power measure 300-450Hz.

Duplicate Remote
Support duplicate parts of keeloq roll code & fixed code remote key with arbitrarily frequency.

Prepare Remote
Support prepare up to 400 types of vehicle remote keys.

Prepare Garage Door
Support prepare more than 100 types of garage doors remote.

Renew Remote
Support renew parts of NXP keylessgo keys & normal keys.

How to use VVDI Key Tool:

(Here take Generation of MG3 433 Remote Key for example)
1.Open VVDI Key Tool remote maker, select “Remote Generation”
2.Select vehicle country/ region,i.e China
3.Select Vehicle Make:MG
4.Select model: Old MG3 433
5. Connect VVDI key tool with vvdi mini remote programmer
6.Select corresponding remote type, wireless or wire remote
7. After select generation remote, vvdi key tool will generate barcode automatically , take a photo of the barcode
8.Use decode device to decode the remote key with the barcode.
The new generated remote is almost the same as original remote with barcode

VVDI Key Tool Remote Programmer Update Plan:

VVDI Key Tool V2.3.8 Update Feature [2017-07-16]
* * * * * * * * * * * * * *
Firmware version: V2.0.2
Attention: This update only for North American or India English version(na,na-en,in,in-en). Other languages will be released on next week, please get Device Info to check language version.
This version must be updated with V2.3.8 and above. The upgrade may take about 30 minutes
1.transponder clone
+add chrysler 4D-64(4E) clone
+add toyota-G offline clone
+add hyundai ID-70 online clone(Use Calculate option in upgrade software)
+add ford ID-83 online clone(Use Calculate option in upgrade software)
+add ID-4A identify
2.generate transponder
+add toyota-G to generate special transponder
3.remote renew
+add more than 86 remote&keyless go prox unlock
4.remote prepare
*fixed XN serial keys problem on ID47 such as suzuki
5.add more vehicles data and fixed some bugs

VVDI Key Tool V1.2.8(2017-04-26)
+ Remote Renew
-BMW-F.315*
-BMW-F-434*
-BMW-F-868*
-BMW-CAS-315
-BMW-CAS-868
-8k0959754-C (Does not turn on the LED light of the remote) - Possibility Incorrect firmware
-8k0959754-J (Does not turn on the LED light of the remote) - Possibility Incorrect firmware
-8k0959754-D (LED light is OK) - Not tested yet in car
-Hyundai (Do not detail model)
* Sure some models like F series, will not work, like to passed with VVDIprog. And Audi see error in the (C and J).
+ Remote Prepare. V4
-Iden KEYDIE - (PCF7947) None Remote.

VVDI Key Tool V1.2.7(2017-04-02)
*Must be used 2.1.2 version upgrade software to update the firmware
*Must be used [fixed] function to update the firmware
1 fixed the remoter database damaged bug
2 fixed the internal firmware damaged bug
3 fixed the remoter clone bug
4 added the calculation of hundyai keylessgo password

VVDI Remote Maker V1.2.6 (2017-3-25)
1, repair the 46 clone bug on part of models
2, add TPX3(ID46) in clone transponder list
3, add to view the ID46 detail data in TP-clone dialog(after clone success,press [right] button to check data)
4, fixed bug of 4d clone
5, fixed part of the fixed code clone bug
6, add the special clone function for part of remoter
7, add fixed code edit function
8, add sort car brand in remote generate function
9, fixed some UI bug

VVDI-Key Tool V1.2.5(2017-2-23)
1,support clone PCF7936/46,TIRIS-4D(40-bit) 4C,PCF7935(ID33 ID42),T5(11 12 13);
2,support to edit 48 46 4d 7935 & common transponder
3,support to make special transponder image such as TP23 TP24 ID33 ID40 ID42 ID44 ID46 ID60 ID67 and so on;
4,support to generate hundreds of key model
5,support to clone most of fixed code and Keeloq roll code remote key,such as pt2240,lx918,hcs30x and so on;
6,support to measure the key's frequency & power

Customers Feedback:

Recently customers feedback to us about  VVDI KEY TOOL remote programming problem,customer can refer to following information:

1.Please update to latest firmware version 2.0.6 first [update software version 2.3.9](all different version released except India version)

2.When programming remote get prompt'Remote hardware version is too low'means your remotes must be Chinese version.chinese version remote only support in Chinese version device,
cannot support other version devices

3.All English version remotes can use for all overseas device(except India(in)/Malaysia(ma)/China(ch) version),such as Europe(eu)/NorthAmerican(na) they can use same version remotes

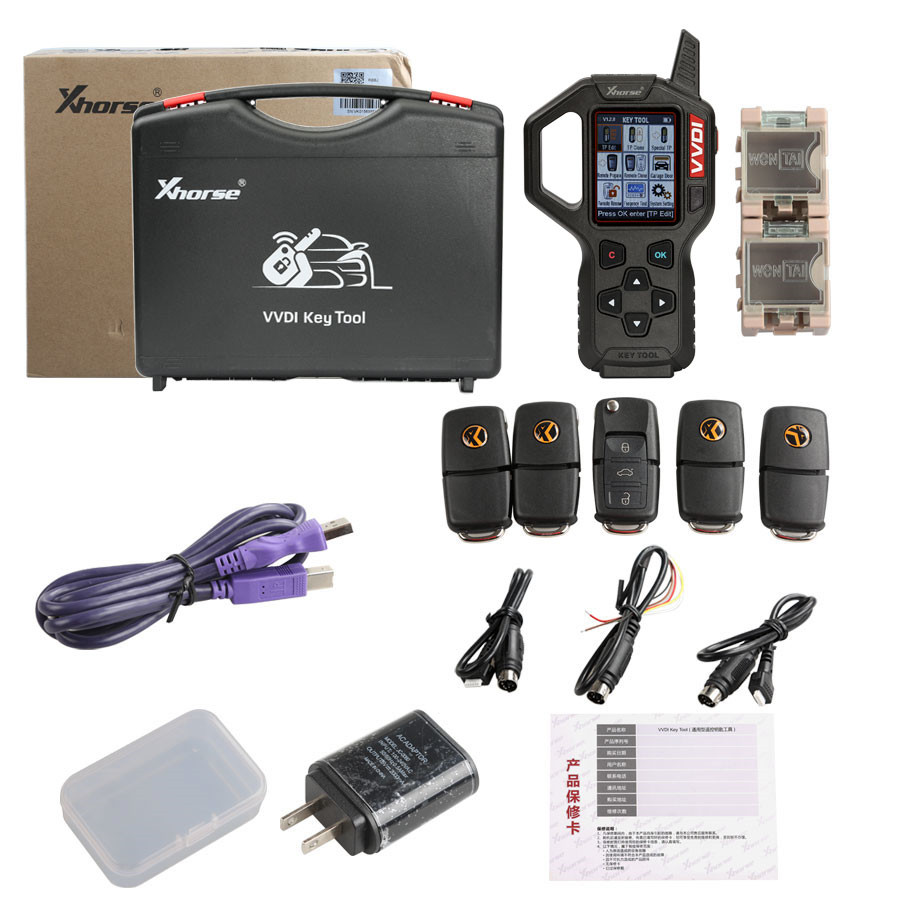

VVDI Key Tool Package List:

1pc x VVDI Key Tool remote maker main unit
5pcx Remotes keys
2pcx Programming cable
1pcx Remote renew cable
1pcx USB cable
2pcx Transponder storage box
1pcx Key blank storage box
