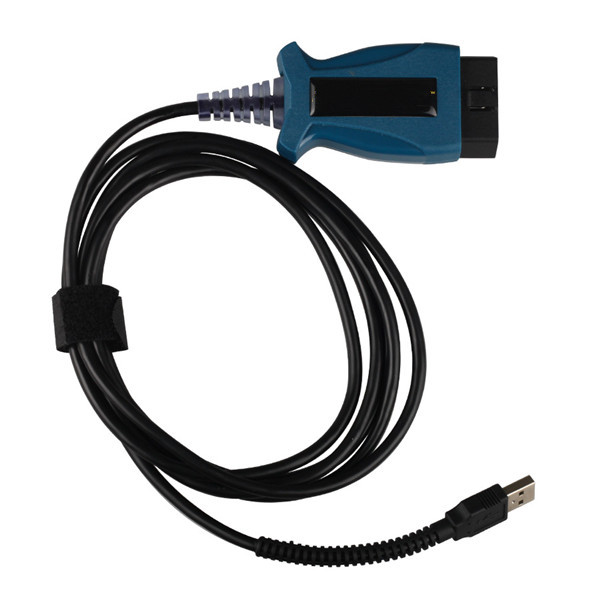

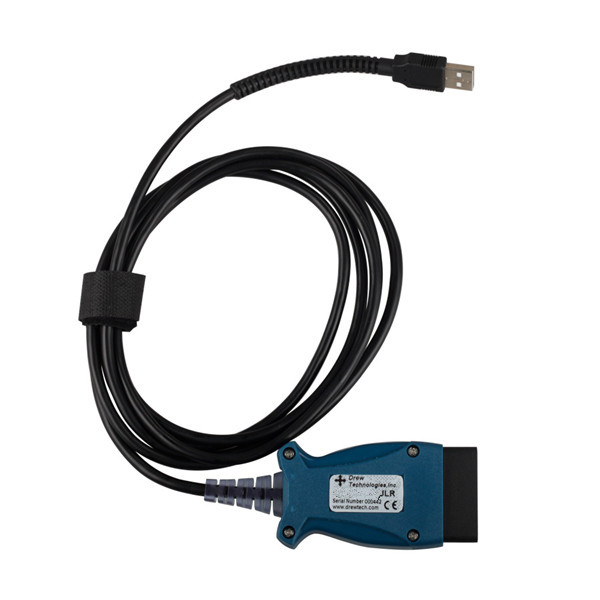

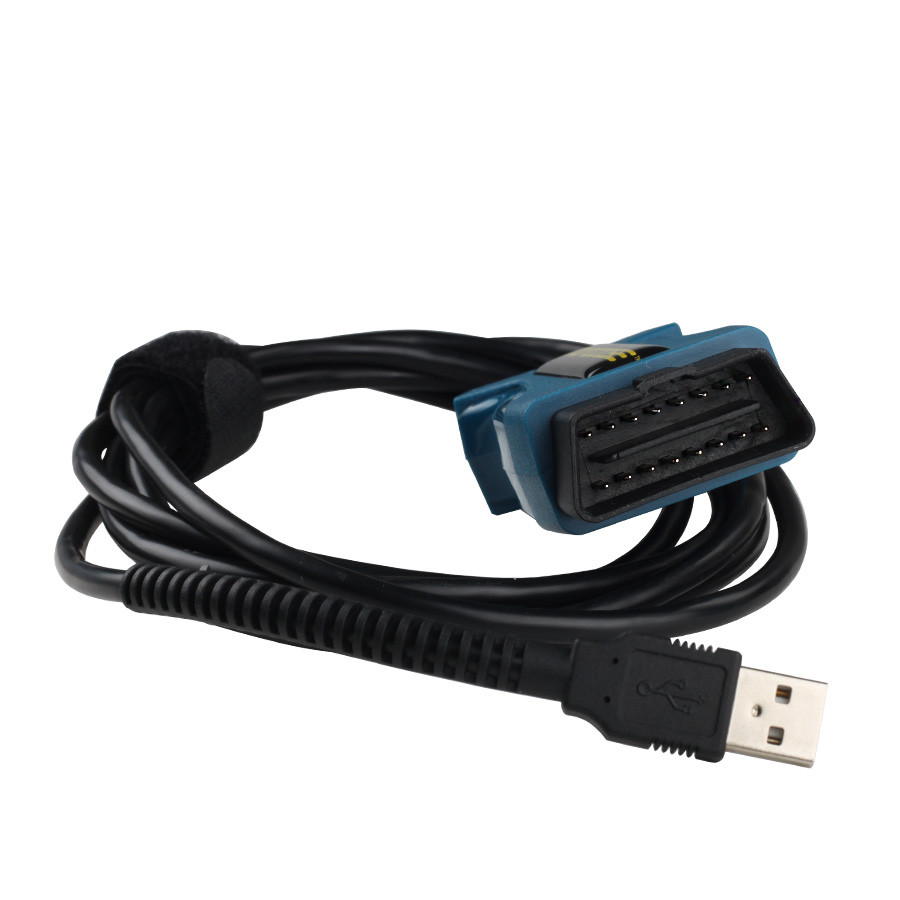

V139 JLR Mangoose SDD Pro for Jaguar and Land Rover Support Till 2014Top 6 Reasons To Get JLR Mangoose Pro:
1. Software Version: V1392. Operating System: Win XP/Win 7/Win 8( Not all WIN 7/WIN 8 system can install JLR SDD V139)3. Supported Vehicle: Support 2005 to 20144. Support L316, L319, L320, L322, L359, L538 Land Rover Vehicle Lines5. Support X100, X150, X202, X250, X350, X351, X400 Jaguar Vehicle Lines

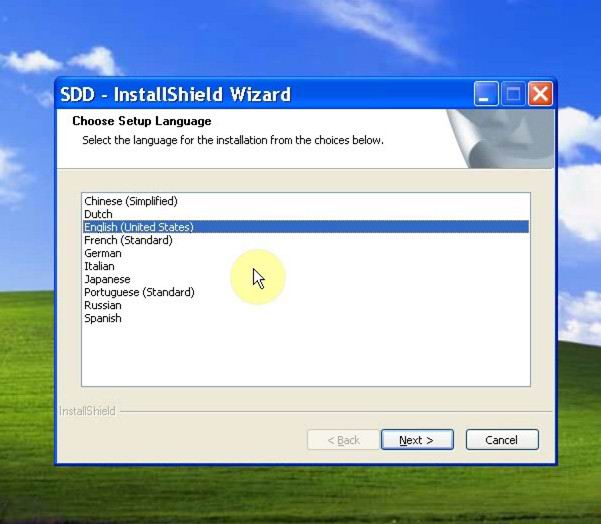

6. Support Multi-Language: English(United States), French, German, Italian, Japanese, Portuguese, Russian, Spanish, Dutch and Simplified Chinese
No Internet Connecting, Or it will make damage to JLR Mangoose!!!
How to set up JLR SDD V139?

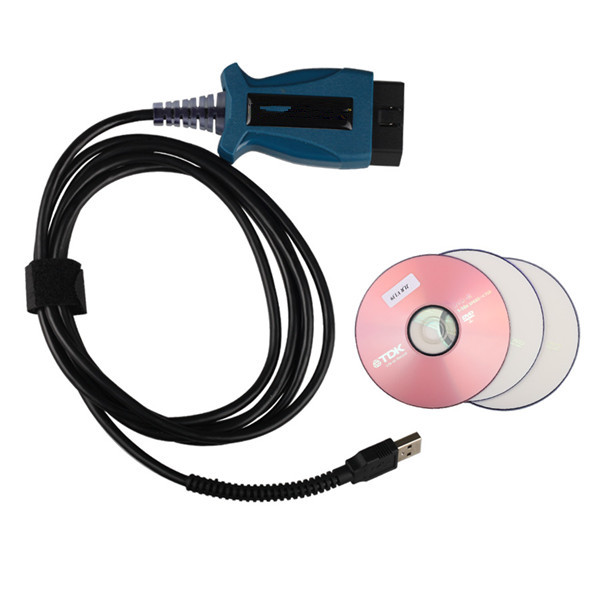

JLR version after V137 do not support offline programming, you can do the online programmingJaguar-Land Rover Features:1. Data Lists2. Active Tests3. Monitor4. Utility tests5. Reprogramming6. Diagnostics Trouble CodesBus Protocols:1. J1850PWM / SCP2. ISO9141 / KWP20003. ROSCO4. Medium Speed CAN5. CAN Bus (capable of ISO 15765, GMLAN, and ISO14229)Jaguar-Land Rover Specifications:1. Dimensions: 3" x 1.75"2. J2534 and J2534-1 compliant device driver3. Commercial Range (0 to +70 C)4. Operating Voltage: Bus-powered by USB5. Host Interface: Full-speed 12 mbps USB 2.0 with J2534 device driverPackage Including:1pc x Mangoose Jaguar-Land Rover (JLR)1pc x CD
