Vident iEasy310 OBD2 Scanner OBDII Code Reader and Car Diagnostic Tool OBD2 Automotive Scanner

Vident iEasy310 CAN OBDII/EOBD Code Reader is a rugged design and non-portable code reader for entry-level professionals and savvy DIY people.Coupled with oxygen monitor testing, in-vehicle monitor testing and component testing, the iEasy310 is truly the ultimate choice for functionality and affordability.In addition, thousands of troubleshooter code tips help technicians to save diagnosis and repair time.



Vident iEasy310 Scanner Features:

1. One-click I/M for quick view of car emissions.
2. 3 color indicator (green, yellow, red) display, making the test results more intuitive.
3. Free lifetime upgrade - use USB cable.
4.Support Multi-Languages: English,French,German, Russian,Spanish,Italian,Portuguese, Hungarian,Dutch,Sweden
5. No battery required, it is charged directly from the OBDII car scanner interface in your vehicle( just need to turn on the ignition of your vehicle).
6. User-friendly Design,I/M and READ/CLEAR Trouble Code Hot keys and 2.8'' TFT color screen
7. Emission Test Helper, Green-Yellow- Red LEDs and build-in speaker indicate emission monitor status.
8. Works with most 1996 and newer OBDII& CAN compliant cars, light-duty trucks, SUVs, minivans and hybrid sold worldwide.
9. Lifetime free software and firmware updates.

Vident iEasy310 Scanner Functions List:

1.Support all OBDII functions, turn off check engine light, reset monitor, read enhanced data etc.
2.Support Multi-language; works with all 12V standard obd2 protocols vehicles.
3. Buzzer, all operations and test results, increase the intuitive experience of the test.
4. Original OBDII product VIN code automatic positioning function, saving customers' custom code selection time.

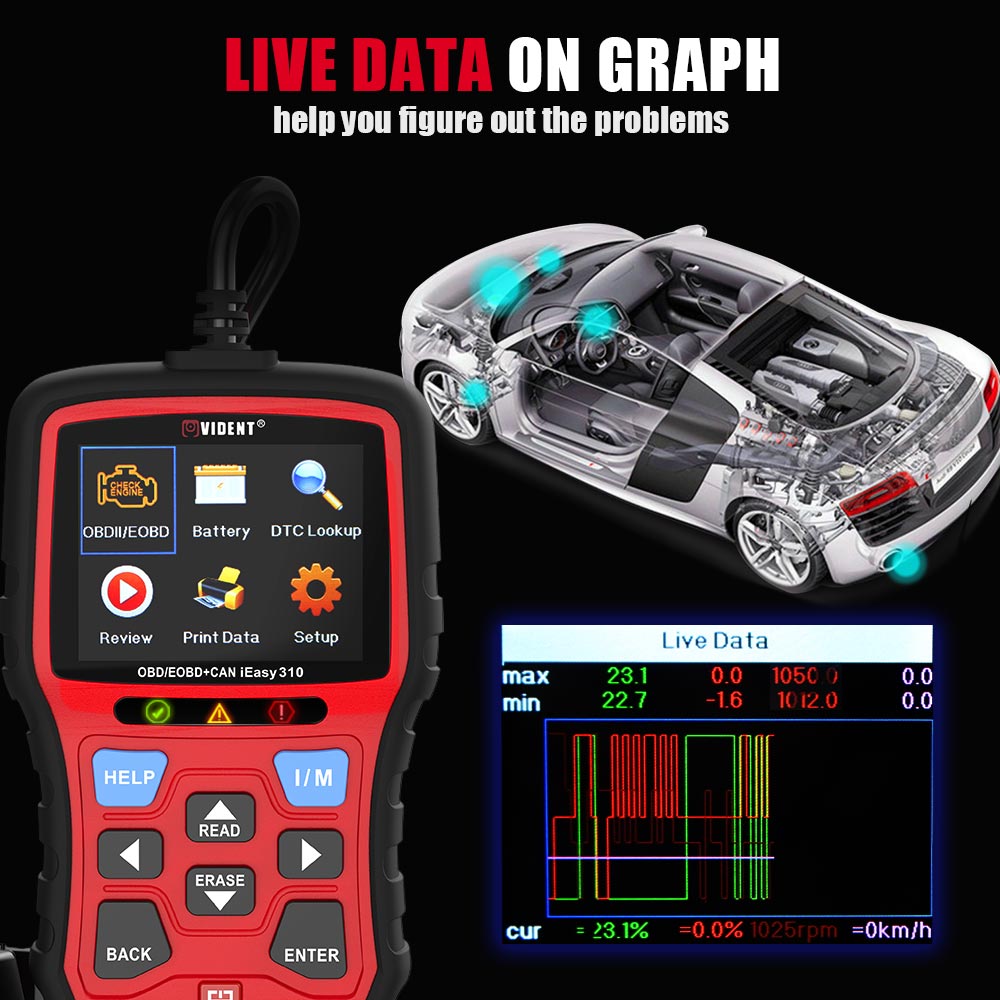

5. Support waveform display and support maximum 4-channel waveform comparison.
6. Support battery voltage test.
7. Quickly read the fault code and erase the fault code button design, saving customers time.
8. Fault code query function, device or upgrade tool can support query fault code and support multi-language.
9. Support connection to PC computer printing function.
10. Support data storage, fault code, system information and other important data storage, playback function
11. The whole product is treated with anti-drop rubber coating, which is more durable.
12. Support all the 10 OBDII test modes.








Vident iEasy310 Scanner Vehicle Coverage:

America(USA) :
Compatible with 12V Standard OBD2 Cars from 2001 to Now:
For Chrysler; For  Ford; For  GM; For  Jeep; For  GMC; For  BUICK; For  Saturn; For  Pontiac; For  Chery

Europe:
Compatible with 12V Standard OBD2 Cars from 2004 to Now:For
For  Alfa Romeo; For  SAAB; For  Acura; For  Opel; For  Audi; For  Seat; For  Bentley; For  Skoda; For  Daewoo; For  Benz; For  Daihatsu; For  Land Rover, For  BMW; For  Vauxhall; For  Volvo;For  Fiat;For  VW; For  Ford;For  Jaguar

France:​
Compatible with 12V  Standard OBD2 Cars from 2006 to Now:
For  Peugeot;For Citroen

Not support for all Renault vehicles, such as:not support for Renault Clio 2/Megane/Dacia Logan / .etc

Japan:
Compatible with 12V Standard OBD2 Cars from 2007 to Now:
For  KIA;For Isuzu; For  Honda; For  Mitsubishi; For  Hyundai; For  Dacia; For  Lexus; For  Mazda; For  Nissan; For  Subaru; For  Suzuki; For  Toyota

China:
Compatible with 12V Standard OBD2 Cars from 2011 to Now:
For  BYD; For  Chery; For  Geely; For  Great Wall; For  Karry; For  JAC

Warning:
Not Support Russian Cars VAZ,UAZ,LADA ;Not works with trucks
Not Support for All Renault vehicles
For Ssangyong Actyon , from 2009 to 2017 years.
For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.
For Ssangyong Kyron , 2.0 Diesel , from 2010 to 2017 years.
For Ssangyong Rexton , 2011 to 2017 years.

Note:
Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.

Vident iEasy310 Scanner Product Display:


A.OBD 11 Cable 一 provides communication for vehicle DLC .
B.LCD Display 一 shows menus , test results and operation t 1 ps .
C.Green LED Display 一 indicatestheenginesystemis worklng normally ( all monitors on the vehicles are active and performing their diagnostic testing ) , and no DTCs are found .
D.Yellow LEO Display 一 shows the tool finds a possible problem . Pending DTCs exist or / and some of the gvehicle ' s emission monitors have not run their diagnostic testing.
E.Red LED Oisplay 一 indicates there are some problems in one or more of the Vehicle ' 5 systems . In this case , the MIL lamp on the instrument panel 15 on.
F.UP Key -quick access to the Read Codes function before going to diagnostic menu and moves selection up . When Iooking up DTC , it 15 used to change value of selected ChaFaCtgr .
G.DOWN Key-Quick access to theC ! ear Codes function before going to diagnostic menu and moves selection down .
H.LEFT SCROLL Key-goes to previous character when looking up DTCS. Scrolls back and forth through codes found and through different screens of data. also it is used to make selection of Pids when viewing custom Pid list. and to view PID graphs.
I.RIGHT SCROLL Key-goes to next character when looking up dtcs. Scrolls back and forth through codes found and through different screens of data. Also it is used to cancel all selections of PIDs when viewing custom PID list
J.One Click I/M Readiness Key -quick checks state emissions readiness and drive cycle verification
K. BACK Key-cancels an action and returns to previous screen or level
L.ENTER Key-confirms an action or movement and moves to next level
M.Help Key -accesses to the Help function and it is also used to update the code reader when long pressed.
N.Restart- restart the code reader.
P.USB Port- provides a USB connection between the code reader and Pc or laptop

Difference Between Vident iEasy310,Foxwell NT301,KW850,Launch CR3008,Autel AL519


	Vident iEasy310	Foxwell NT301	KW850	Launch CR3008	Autel AL519
Price(USD)	$59.99	$69.99	$69.99	$49.99	59.99
Auto VIN	√	√	×	×	×
3-Color light	√	√	√	×	√
Battery Voltage Test	√	×	√	√	×
Single Data Stream Waveform	√	√	√	√	√
Multi-Channel Data Stream	√	×	√	√	×
Hot Key "I/M"	√	√	√	√	√
Hot Key "Read"	√	√	×	√	×
Hot Key "Erase"	√	√	×	×	×
One-Key Update	√	√	×	×	×
Help button(for DTC/Live Data)	√	√	√	√	√
Print	√	√	√	√	√
PlayBack	√	√	√	√	√
Read/Erase DTCs	√	√	√	√	√
System Information	√	√	√	√	√
Live Data	√	√	√	√	√
View Freeze Frame	√	√	√	√	√
I/M Readiness	√	√	√	√	√
EVAP Leak Test	√	√	√	√	√
Mode 6	√	√	√	√	√
Color Screen	√	√	√	√	√

Vident iEasy310 Scanner Specifications:

Display:                                2.8” LCD color screen
Operating Temperature:      0 to 60°C (32 to 140°F)
Storage Temperature:         -20 to 70°C (-4 to 158°F)
Power:                                 8 to 18 V provided via vehicle
Supported Protocols:          J1850-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
Unit Dimensions :               147mm(5.79”)*90mm(3.54'')*30mm(1.18”)


Vident iEasy310 Scanner Package includes:

1PC x Vident iEasy310 ODB2 Scanner

1PC x USB cable

1PC x English version of the manual (other versions of German, Spanish, French, please download online)
