> Launch X431 > Launch X-431 PAD VII PAD 7 with ADAS Calibration Automotive Diagnostic Tool Support Online Coding and Programming
Launch X-431 PAD VII PAD 7 with ADAS calibration Automotive Diagnostic Tool Support Online Coding and Programming
X-431 PAD VII is an unexpected high-end diagnostic tool from LAUNCH, comes with the ADAS calibration function, 32 service functions, TPMS service and 8 extended modules functions. New Smartlink C VCI powers technician a new diagnostic level without the limitation of diagnostic functions, tools and vehicle types.Launch X-431 PAD VII PAD 7 Features:
1. Full system vehicle coverage for U.S., Asian and European markets over 110 brands, which is continually updated
2. Upgrade and expand the X-431 PAD VII with more software and service via the new module 'MALL' as demanded
3. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
4. Topology mapping gives a visual checking on DTCs and all systems communication status
5. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210
6. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not
7. Intelligent diagnostic enable identify VIN automatically and access system quickly
8. Guided function for VW and AUDI
9. Optional ADAS calibration function increases more revenue
10. Advanced coding and programming function
11. An extended solutio to support TPMS service
12. 2.4GHz & 5GHz dual band communication ensures quick and stable connection
13. Empower technician to diagnose light, medium & heavy duty vehicles with Smarlink C
14. The basic functions include read & clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
15. Build-in repair information and training video modules help to track and fix issue fast.

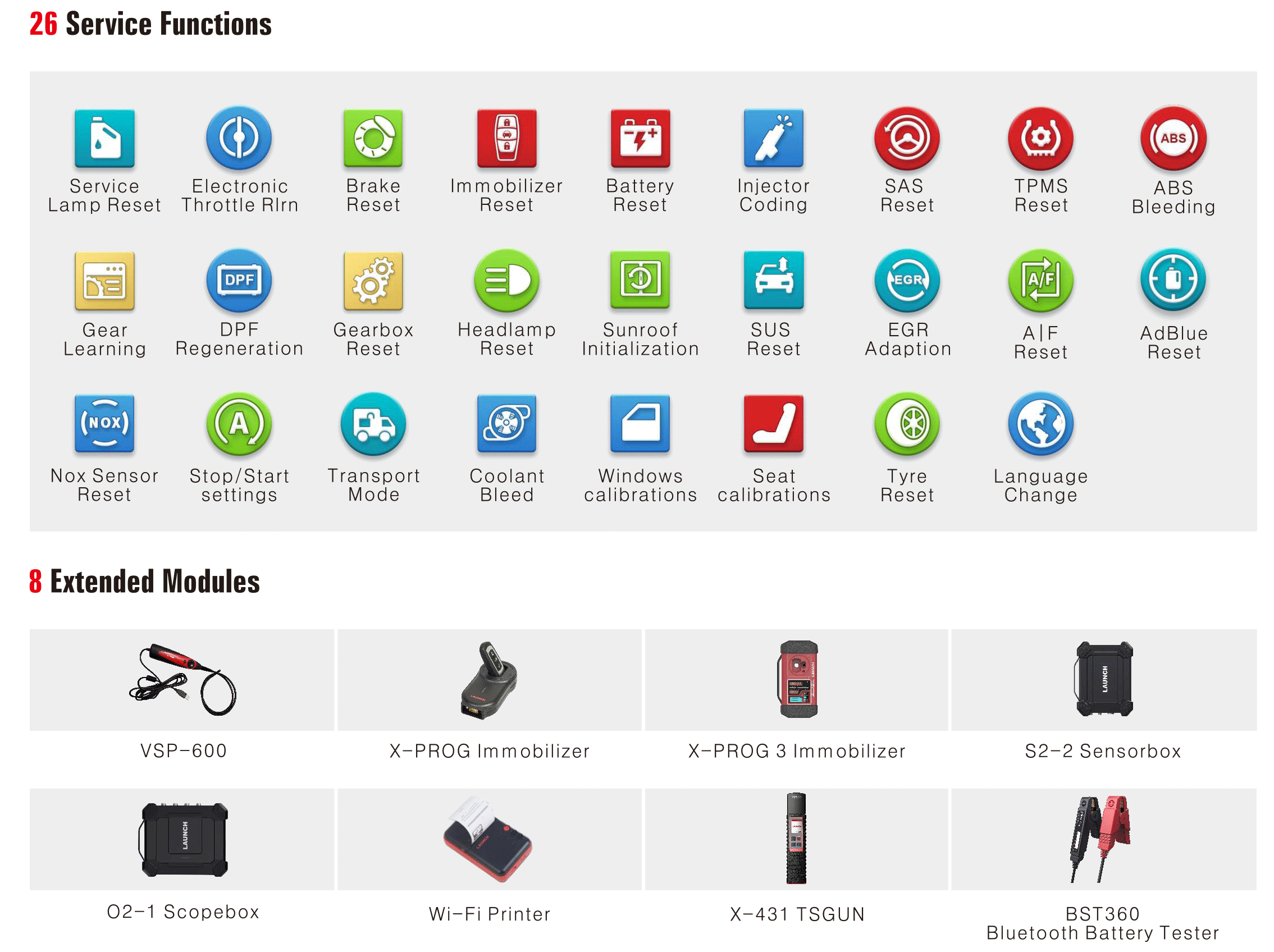

32 Service Functions:Service Lamp Reset
Electronic Throttle
Brake Reset
Immobilizer Reset
Battery Reset
Injector Coding
SAS Reset
TPMS Reset
ABS Bleeding
Gear Learning
DPF Regeneration
Gearbox Reset
Headlamp Reset
Sunroof Initialization
SUS Reset
EGR Adaption
A/F Reset
AdBlue Reset
Nox Sensor Reset
Stop/Start settings
Transport Mode
Coolant Bleed
Windows Calibrations
Seat Calibrations
Tyre Reset
Language Change
Specification
X-431 PAD VII
Smartlink
Operation System
Andorid 9.0
N/A
CPU
2.0GHz Octa-core
N/A
Display
13.3' touch screen 1920*1080
3.5' touch screen 320*480
Memory
8GB
256M
Storage
256GB
8GB
Camera
Rear 13MP, Front 8MP
N/A
WiFi
Dual Band 2.4 & 5GHz
Dual Band 2.4 & 5GHz
Diagnostic Communication
WiFi
WiFi & BT & USB
Working Temperature
0℃~50℃
0℃~50℃
Dimension
353*236*71 mm
204*110*45 mm
Launch X431 Pad III vs. X431 Pad V vs. X431 PAD VII
Packing List
