> Car Diagnostic Tools > Vident iBT100 12V Battery Analyzer for Flooded, AGM,GEL 100-1100CCA Automotive Tester Diagnostic Tool
Vident iBT100 12V Battery Analyzer for Flooded, AGM,GEL 100-1100CCA Automotive Tester Diagnostic Tool
The latest BT100 12 Volt Automotive Battery Analyzer from Vident is dedicatedly developed to test 6V & 12V regular flooded, AGM flat plate, AGM spiral and gel batteries.
It provides a quick, easy and affordable solution for technicians to view battery charging status, check battery health and detect faults.
Vident iBT100 Highlights
1. Multiple vehicle applications – passenger cars and light duty trucks
2. Tests batteries rated from 100 to 1100CCA
3. Tests multiple battery types - regular flooded, AGM flat plate, AGM spiral and GEL
4. Tests multiple rating systems - CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE
5. Tests the batteries on the car directly - no need to remove the battery. Detects bad cells
6. Quick and accurate test result display in just 3 seconds
7. Does not emit light, heat or spark, or discharge battery - keeps operation safe for all levels of users , automatic temperature compensation
8. Extremely easy to use with large backlight LCD display and menu-driven operation
9. Attractive and responsible price.
10. Mulit-Language: English, French, German, Italian, Polish, Portuguese, Russian, Spanish, Dutch,Turkish. Note:The device can directly switch the language. For the specific operation method of switching the language, you can find customer service to provide a video.
Battery Testing Experts Recommend the situation for Vident iBT100:
1. As a tool for judging whether the car battery is replaced
2. As an acceptance tool when receiving the car battery
3. As a tool to prove the performance value of automotive batteries
4. As an inspection tool before automobile battery shipment
5. As an appraisal tool for automobile battery claims
6. As a technical support tool for automotive battery sale
Product Design
1. Lightweight design, easy to carry
2. Soft rubber operation keys. The pressing feel is soft and comfortable. The rebound force is sensitive.
3. Large backlit LCD screen easy to read.
4. The appearance of the product conforms to the ergonomic design, and easy to use.
5. Copper power clip, long life, not easy to be oxidized.
Global Rating Systems
No. Standard Description iBT100 Testing Range 1 CCA Cold Cranking Amps, as specified by SAE.
The most common rating for cranking batteries at 0°F (-18°C)100-1100 2 CA Cranking Amps standard.
The effective starting current value at 0°C (32°F).100-1100 3 MCA Marine Cranking Amps standard.
The effective starting current value at 0°C (32°F).100-1100 Japanese Industry Standard, shown on a battery as a combination of numbers and letters
26A17-245H525 DIN Deutsche Industrie-Norm 100-1100 6 IEC International Electro technical Commission 100-1100 7 EN Europa-Norm 100-1100 8 SAE Society of Automotive Engineers 100-1100
Specification
Item Range Accuracy Voltage measuring 6V to 18V 0.50% Battery type Flooded, AGM, GEL N/A Battery rating 100 - 1100CCA ±(3%+10)CCA Standard support CCA, CA, MCA, JIS, DIN, IEC, EN, SAE N/A Operation Temperature 0 to 60°C (-4 to 140°F) N/A Storage Temperature 0 to 70°C (-4 to 158°F) N/A Dimensions: 125mm(4.0”)*80mm(2.96’’)*24mm(0.78”) Weight: 240g QTY/CTN: 50SETS Weight/CTN:19.2KG CTN MEAS: 35.5*34.5*53.3cm
Technical Support & Online Consultation
We can provide consulting services and repair assistance for common car failures. We combine industry knowledge to provide customers with high-quality products and maintenance solutions to benefit our customers. Professional, Efficiency and Quality is always our mission.

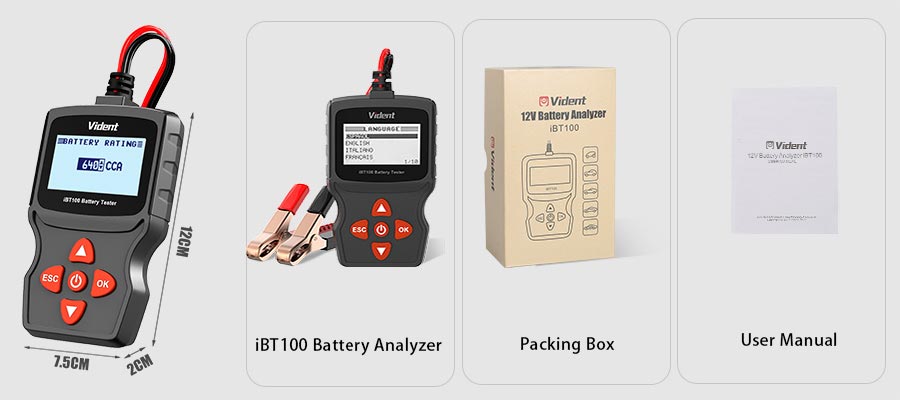

Package includes:
1PC x iBT100 Battery Analyzer
1PC x User's Manual
