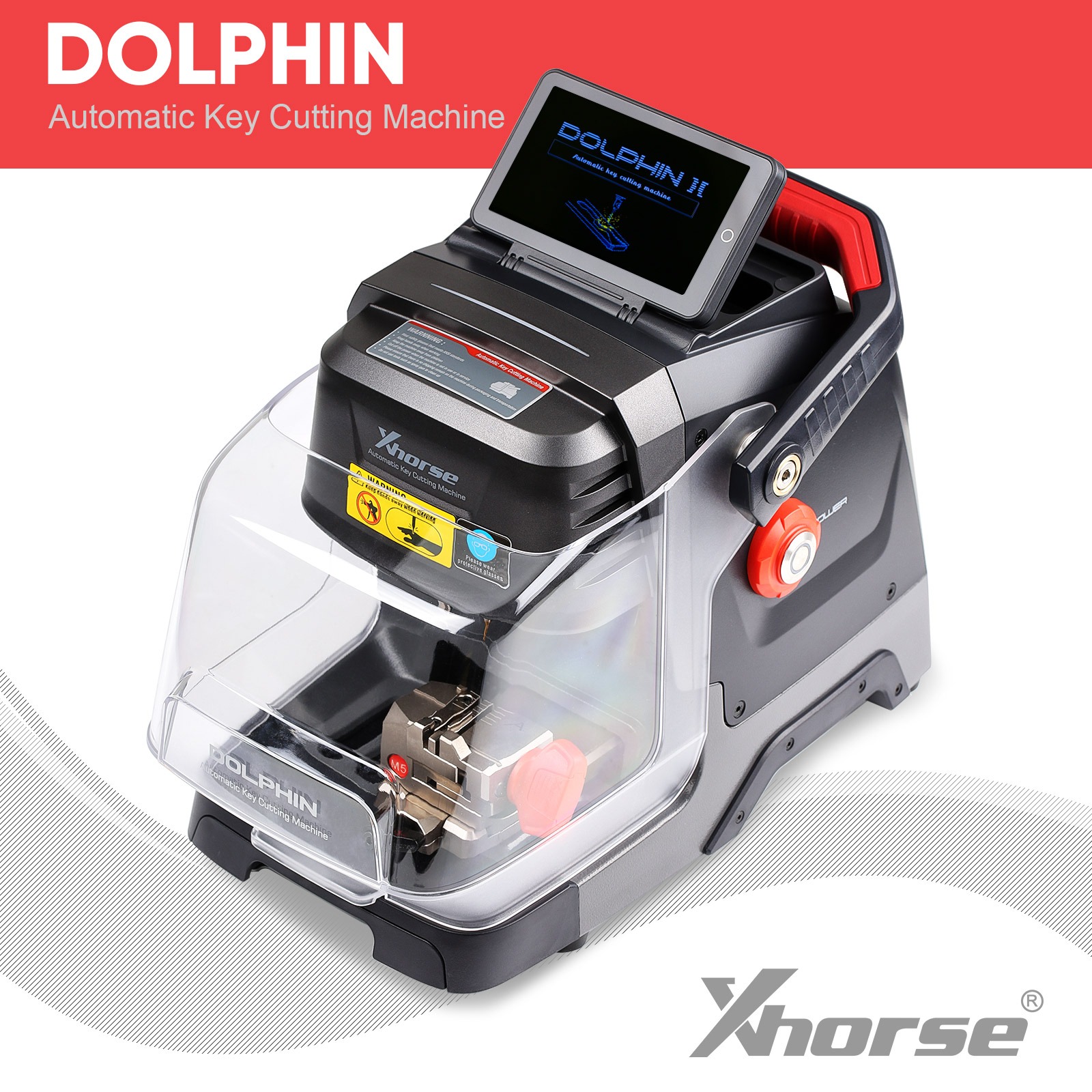

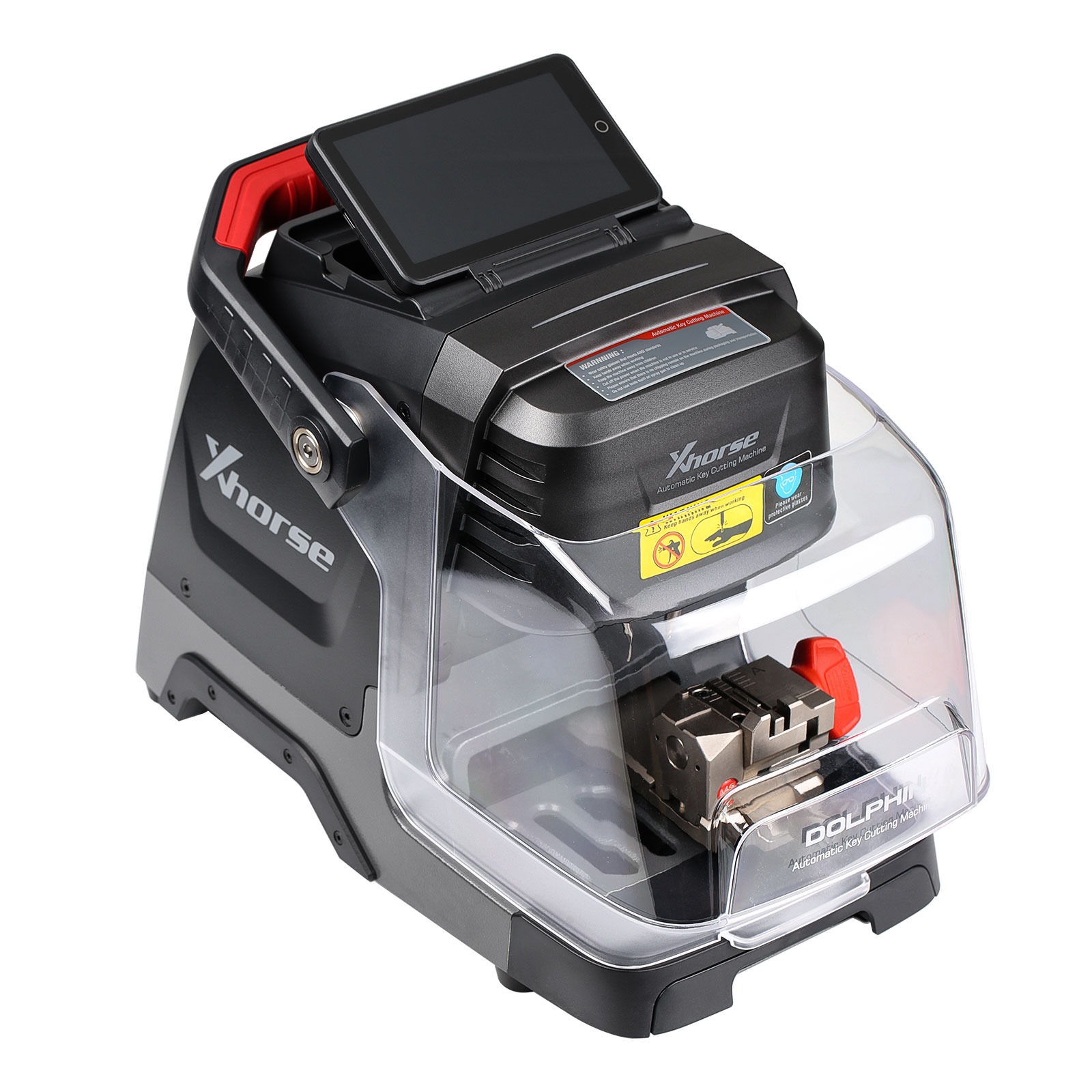

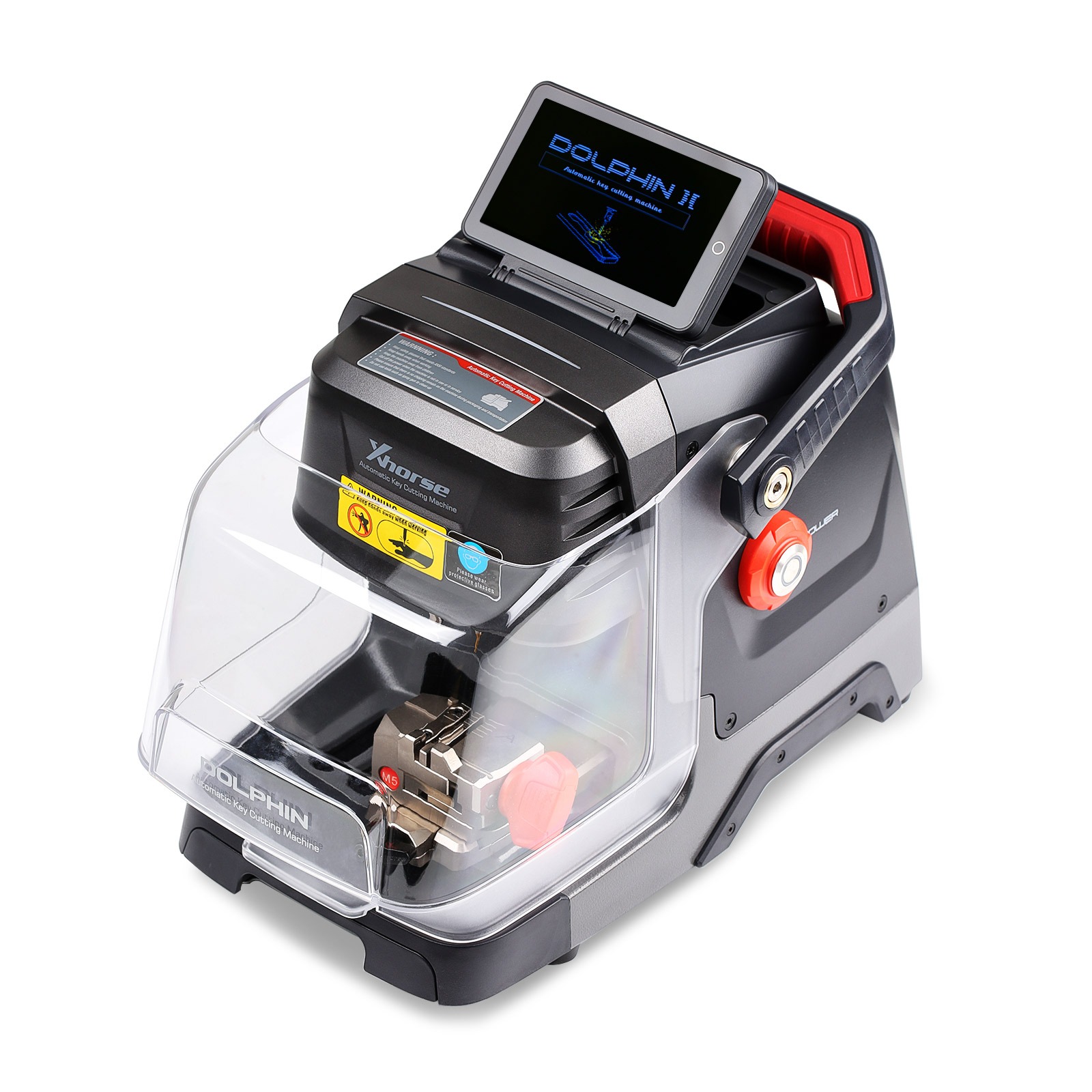

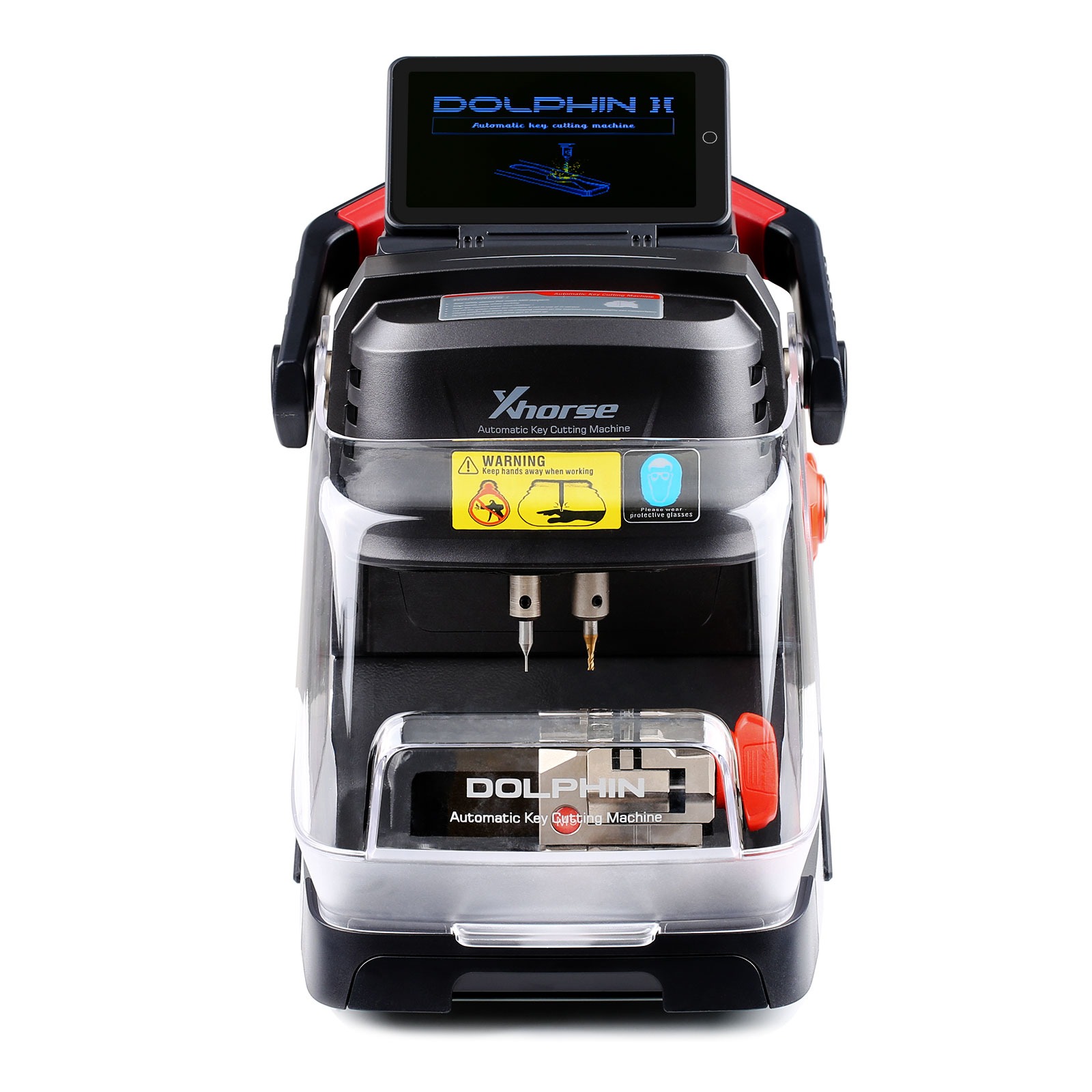

Xhorse Dolphin II XP-005L Automatic Key Cutting Machine

Xhorse Dolphin XP-005L is Dolphin II key cutting machine, which is smarter and safer than XP-005, Xhorse Dolphin XP-005L is with HD Touch Screen,compact design,light weight which make it protable, easy to take it outside. It's build-in massive vehicle database covers over 100 car brands, 2,000 car modsls and 20,000 key data, support upgrade online via WiFi which make it powerful and professional. Xhorse Dolphin XP-005L also support multi-purpose Clamps. Use with Xhorse APP, you can control the machine by smartphone.

Xhorse Dolphin XP-005L Highlights:

1. New Angle Adjustable 5-lnch HD Touch Screen, Transparent Protective Shield
2. Innovative Colorful Indicator Lights, Built-in Lithium Battery
3. Support Both WiFi and Bluetooth,Smart APP Control, Free Online Update
4. Support Multi-Purpose Clamps, Buit-in Massive Vehicle Database
5. More Portable, Only 15KG, Easy to carry
6. Multi-Functions:Optical key bitting recognition, ALL key lost,key duplication,cut by bitting,find bitting
7. Lifetime Free Update Online: Supporting Online Update via Xhorse APP
Xhorse Dolphin XP005L Activate/update/calibrate Steps Link
8. Dolphin XP-005L Device Language: English Only
Xhorse APP Language: English, German, Spanish, French, Thai and Polish
Italian,Portuguese,Hindi,Hebrew,Korean,Indonesian,Chinese
9. XP005L package contain the M5 Clamp(M5=M1+M2).
Cut the Ford Tibbe keys , Need Clamp M3 (optional)
Cut residential/household keys,need Clamp M4 (optional)
10. Bind with VVDI MB Tool/VVDI Key Tool Plus Get 1 Free MB Token Everyday

Compared with XP-005, What's the Update of XP-005L?

Hardware:

1. Dolphin XP-005L has an angle-adjustable 5-inch capacitive touch screen. Users can directly complete the operation on the screen.
2. Dolphin XP-005L with transparent shield enables users to check the real-time working status.
3. Dolphin XP-005L is equipped with Innovative colorful indicator lights.
4. Dolphin XP-005L weights 13KG only, easy to carry.

Notice:

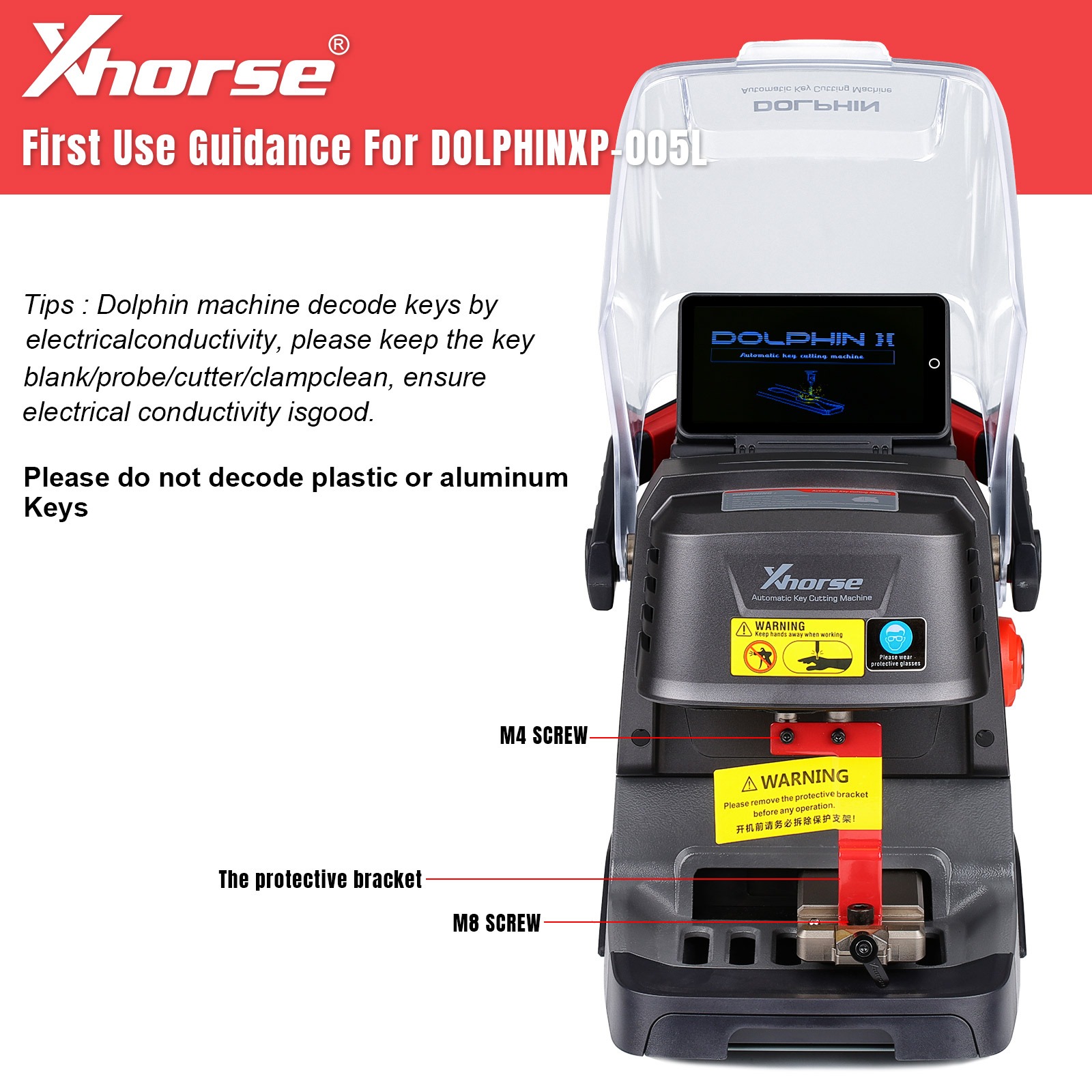

Upon receiving the device, please perform a firmware update before use to prevent battery damage caused by overcharging.

Xhorse Dolphin XP-005L vs Dolphin XP-005:


Item	Dolphin XP-005L	Dolphin XP005
Touch Screen	An angle-adjustable 5-inch capacitive touch screen, and users can directly complete operation on the screen. LCD resolution 1280*720	Null
Protective Shield	Yes, moveable transparent protective shield prevent metal debris from spattering	Null
Smart status indicator	With colorful indicator lights  (in blue:working;                           in yellow:information notification;  in red: false alarm /error warning)	Null
Bluetooth	Yes. Control the machine by the Xhorse app on your smart phone or other intelligent terminals via bluetooth	No,XP-005 not have WIFI module, but support online update by Xhorse APP with smart phone via WIFI
Wifi	Yes, directly upgrade online via wifi connection	Yes, online update via Xhorse APP with smart phone
Multiple Clamps	Standard equipped M5 clamp (M1 and M2 2 in 1), and M3 Clamp(optional) , M4 Clamp(optional)	Support clamps M1, M2, M3(optional) and M4 (optional)
Hexagon bar wrench	2mm+4mm 3mm hexagon bar wrench, 3mm hexagon bar wrench,6mm hexagon bar wrench	2mm hexagon bar wrench,   4mm hexagon bar wrench
Weight	Net weight 13KG, Gross weight 18.5KG	Net weight 15KG, Gross weight 18KG
Battery	With built-in lithium battery	With built-in lithium battery
Language	English	English
Update online	Machine firmware and database upgrade via Wifi directly	Online software update on APP, update through Xhorse"Upgrade Kit"
Support Key types	Support multiple key types, standard single sided, standard double sided, 2 track external, 4 track external, dimple, channel track, 4 track Internal, F021 & Citroen SX9 keys, residential keys, etc	Same
Key database	Built-in powerful database covers over 100 car brands, 2,000 car modsls and 20,000 key data Accurate key data, detailed parameters, and clear key graphics	Same
Function	Self-calibration, key duplication and cutting for vehicle keys, universal key decode for multiple key types	Same
Target users	Provide users outdoor and roadside services	Same

Dolphin II XP-005L Software Overview:

▪Supporting self-calibration
▪Supporting key duplication and cutting for vehicle keys
▪Supporting universal key decode for multiple key types
▪Operation on APP through Bluetooth
▪Build-in key database



Xhorse Dolphin XP-005L Highlights:

HD Touch Screen
Users can directly complete operation on the screen. High definition screen minimizes eye fatigue.The machine adopts an angle-adjustable 5-lnch capacitive touch screen. You can set the angle of the screen based on actual needs.

Massive Vehicle Database
Built-in powerful database covers over 100 car brands, 2,000 car modsls and 20,000 key data Accurate key data, detailed parameters, and clear key graphics. We provide a lifelong database upgrade service for free.

Transparent Protective Shield
The transparent shield enables users to check the real-time working status white preventing metal debris from spattering.

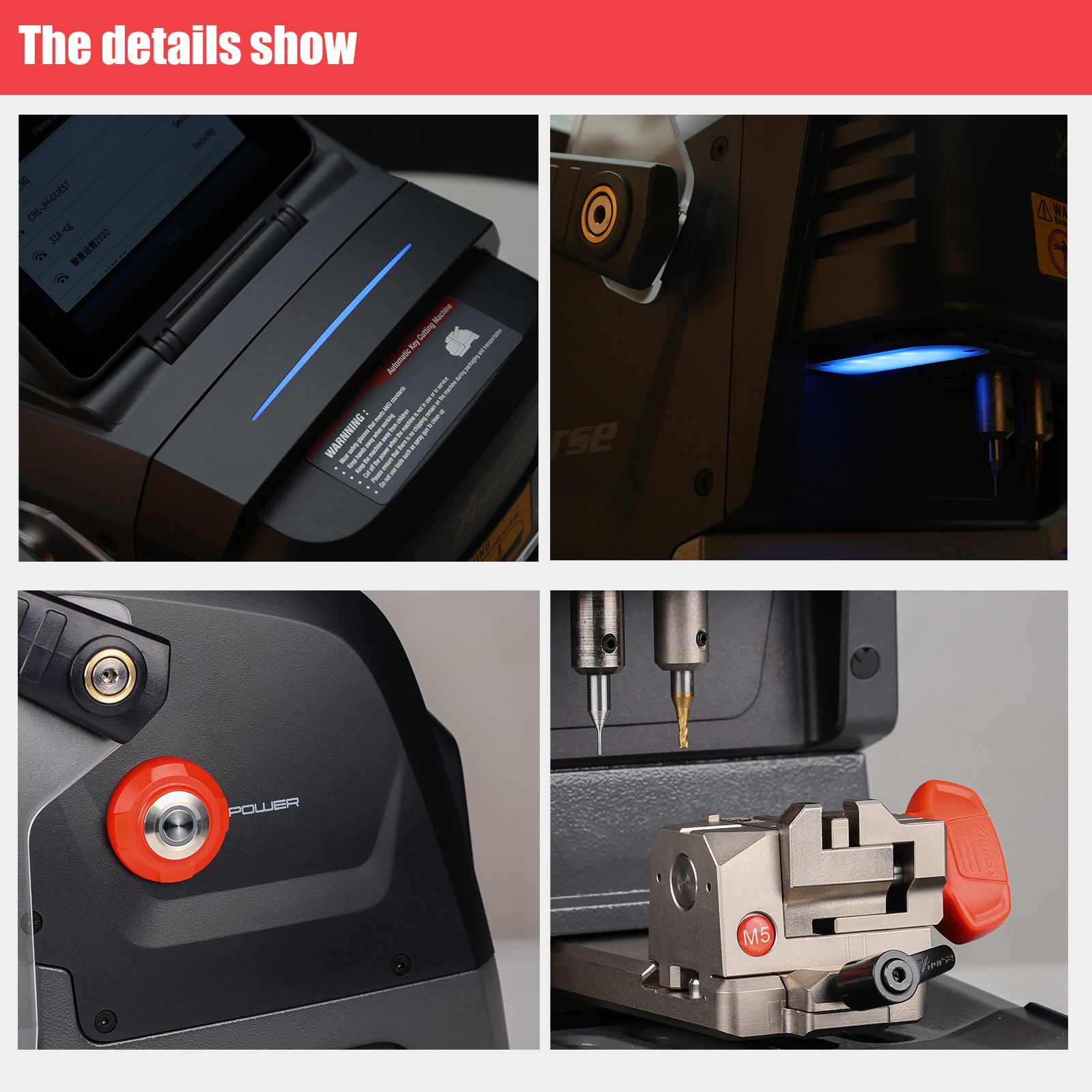

Innovative Colorful Indicator Lights
The indicator light changes color with the change of real-time working status.

Portable Solution
Thanks to its compact design, light weight, much easier to take it outside and provide users outdoor and roadside services.
Built-in well-known lithium battery, stable and reliable, support cutting works without power supply access.

Manufacture Craftsmanship
All-aluminum body structure; Manufactured by Gennan-made DMG CNC machine to guarantee high precision cutting results. The fnfehed keys passed the rigorous testing of the Optical Instrument.
A wider workbench, strong and steady, make your works more productive.Maintain excellent performance even under extreme weather.

Support Bluetooth and WiFi
Support directly upgrade online via WiFi connection.
Control the machine by Xhorse APP on your smartphone or other Intelligent terminals via Bluetooth.

Multi-purpose Clamps
A wide duplication availability guaranteed by a variety of functional clamps, support multiple key types, standard single sided, standard double sided, 2 track external, 4 track external, dimple, channel track, 4 track Internal, F021 & Citroen SX9 keys, residential keys, etc.
Clamp M5 is included in default package, Clamp M3, Clamp M4 is optional.



Optional Cutters and Probes You May Need:

1.0mm Tracer Probe
1.5mm Milling Cutter
2.5mm Milling Cutter

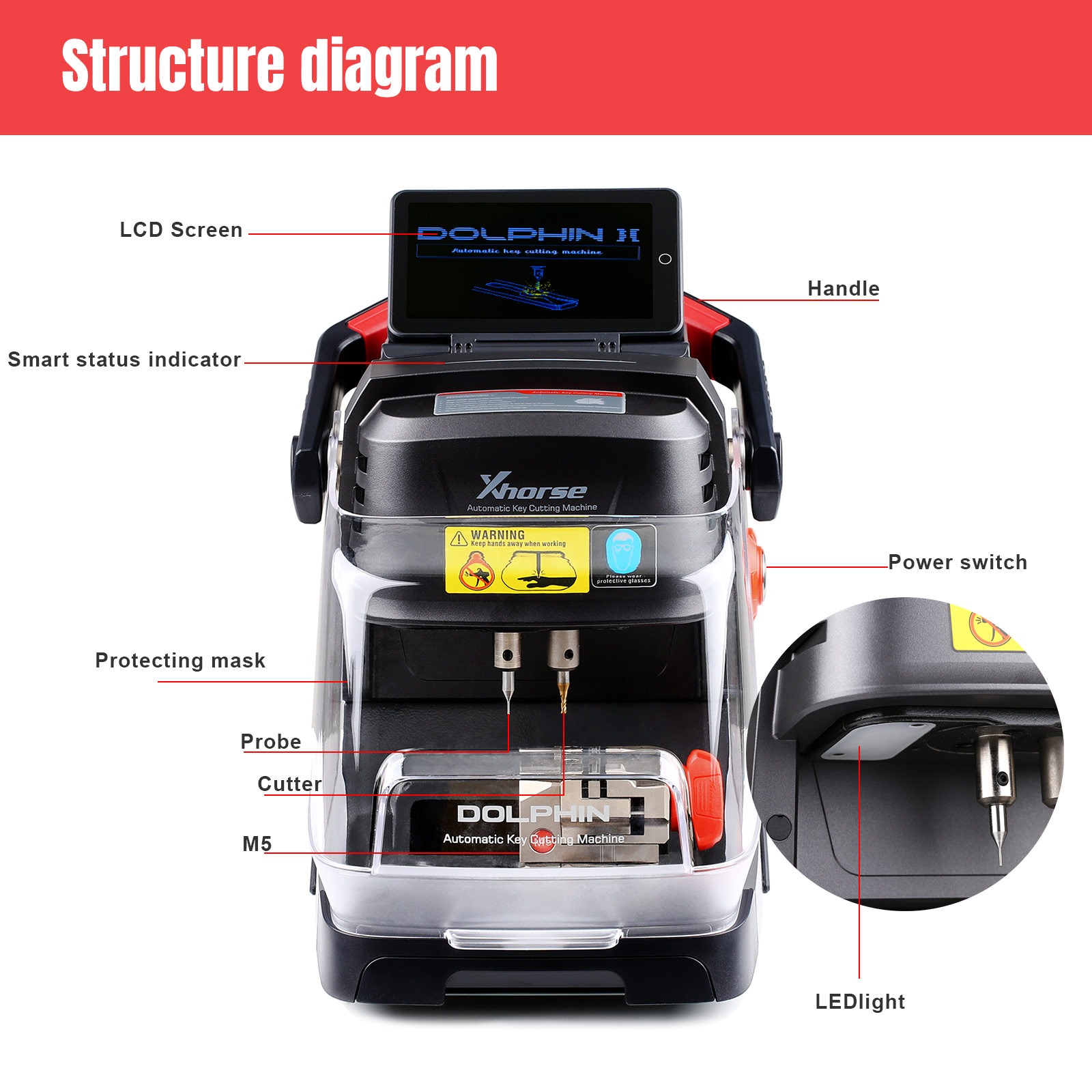

Xhorse Dolphin XP-005L Device Overview:

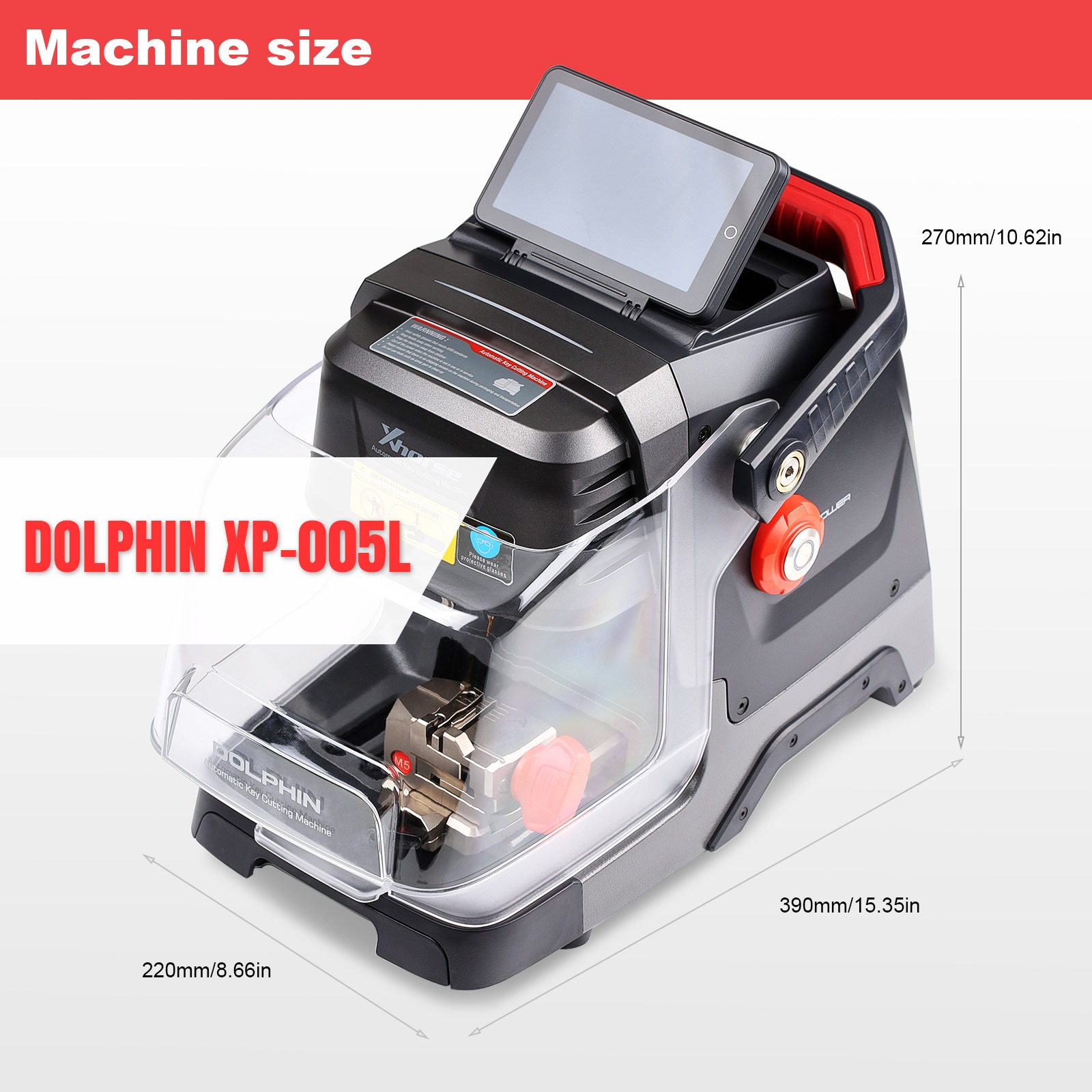

Xhorse Dolphin XP-005L Specification:

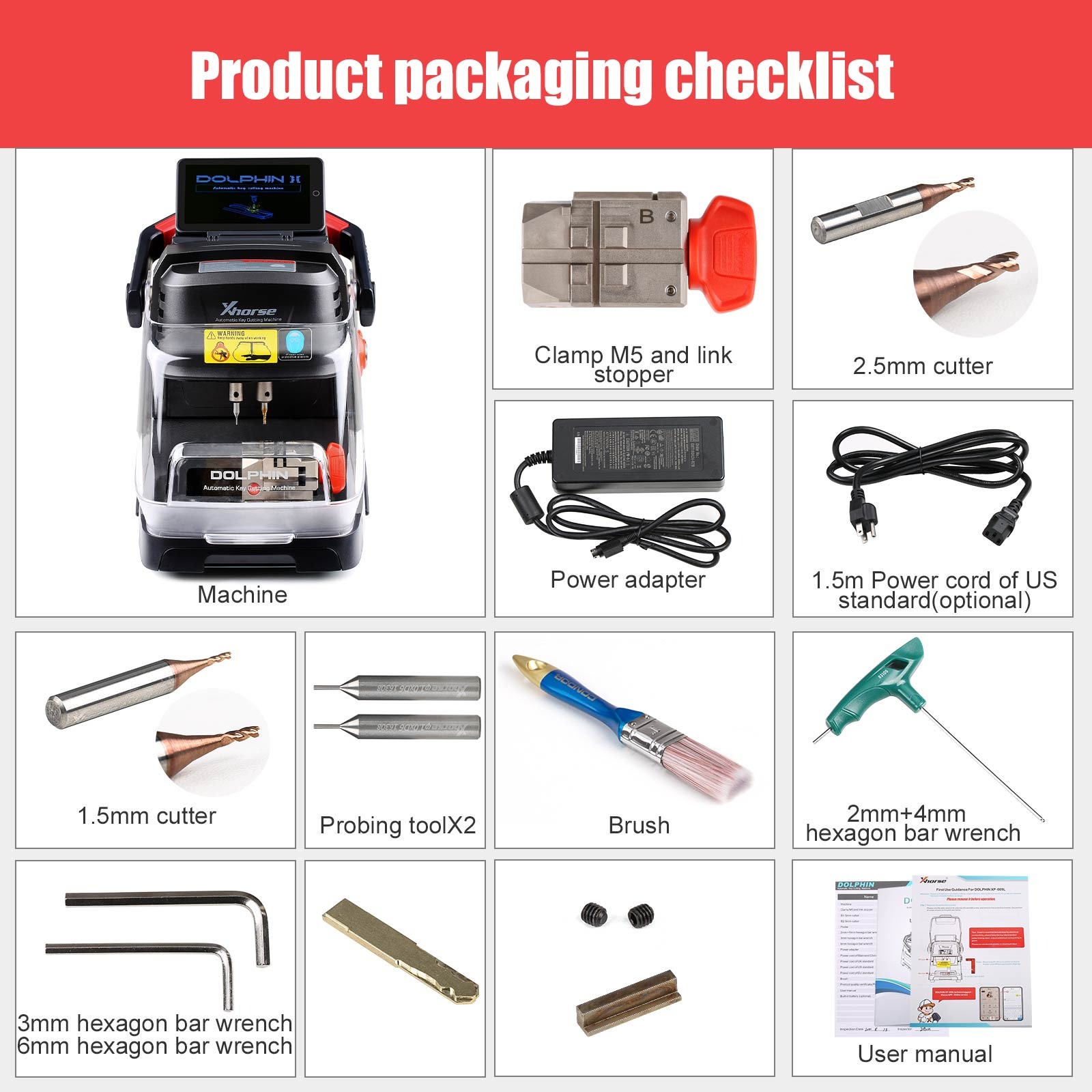

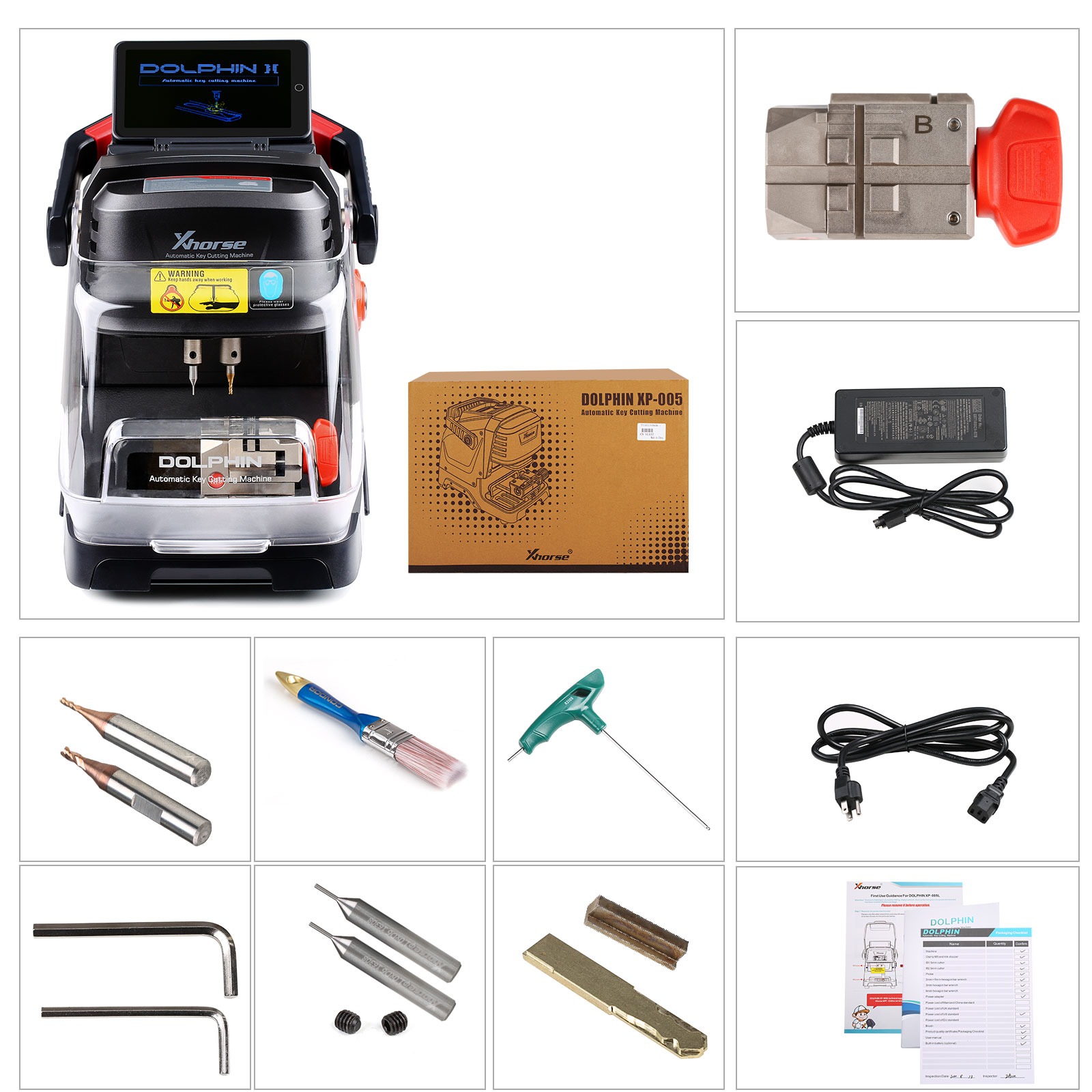

Xhorse Dolphin XP-005L Package:
