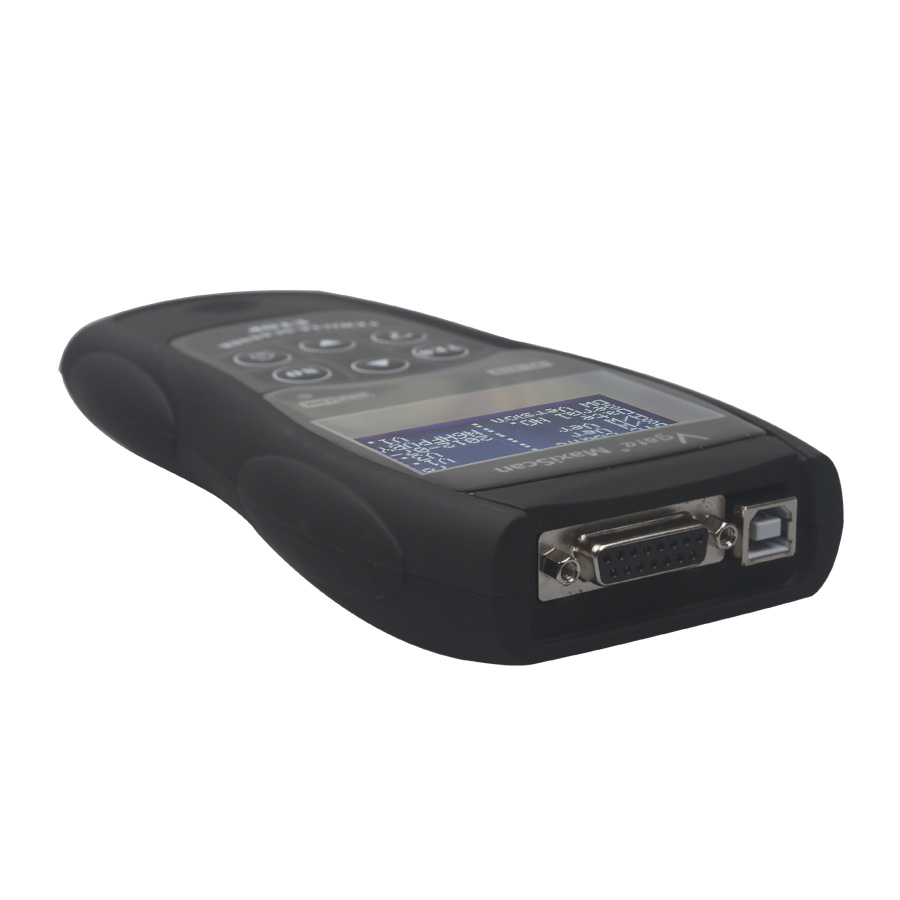

Vgate Scan Tool VS890

Vgate Scan Tool Maxiscan VS890, Application layer fully complies with ISO 15031 and is compliant with SAE J1979. Supports a large number of vehicles made by 70 manufacturers.

Supported Languages: English, Spanish, Portuguese, Korean, Japanese, Italian,Hebrew, German, French, Finnish, Dutch, Danish and Chinese.

Notice :Can't Update

Description:

Multi-language user interface, supports up to 13 languages

Application layer fully complies with ISO 15031 and is compliant with SAE J1979.

Fully functional Mode$01~Mode$09 operation.

Supports  a large number of vehicles made by 70 manufacturers.

DTC includes  generic (P0, P2, P3, B0, U0 and C0) & manufacturer specific (P1, P3, B1,B2 ,U1 and C1,C2,) codes.

Detailed DTC library: DTCs are explained in easy to understand words rather than obscure jargons. Online help information is available for 80% of all the DTCs,which shows the probable  cause of the code.

Supported Protocol:


SAE J1850 PWM

SAE J1850 VPW

ISO9141

KWP FAST INIT

KWP 5BAUD INIT

CAN 11BIT 500K

CAN 29BIT 500K

CAN 11BIT 250K

CAN 29BIT 250K
CAN_USER1 11B 125K

CAN_USER1 29B 125K

CAN_USER2 11B 50K

CAN_USER2 29B 50K

Full CAN BUS support for new cars

11 Bit and 29Bit CAN

Capable of communicating with multi-ECU System



Feature:


1. Color: Scarlet ,dark blue, Pearl Blue,Green Blue,Metal Black,Orange

2. LCD:3 inch black mask LCD, wide visible area, high contrast .The contents is readable even in strong sun shine.

3. ABS+PC Engineer Plastic Housing (passed 6-meter free fall test.) Patent No.200830010963.5.

4. Harmless fade-resistant paint.

5. Rubber oil sprayed housing; slide, dirty, and vibration proof.

6. Passed EMI/EMC test.

7. High quality PET 6-key film keypad.(3M harmless glue)

8. CE,FCC,RoHs Certified

9. Support manually input DTC Look-up

10. Read DTCs

11. Clear DTCs

12. Data stream

13. Freeze Frame

14. I/M Readiness

15. O2 Monitor Test

16. On-Board Mon Test

17. Component Test

18. Vehicle Info.

19. Modules Present

20. Unit of Measure

21. State Emission

22. Read All DTCs

23. Read Stored DTCs

24. Read Pending DTCs

25. Detailed help information

26. Capable of showing probable cause of a DTCs.

27. Up to 161 data items,each of them is with online help information.

28. Reset engine MIL

29. This operation will  erase all DTCs , freeze frame Data , oxygen sensor data, and reset  IM Monitors and MIL.

Package List:

Main Unit

LCD:128×64 Black Mask LCD

Visible view:67mm×40mm

Cable:J1962 120cm

Package: Paper board box
