SDS For Suzuki Motorcycle Diagnosis System
  • Item NO. OBDAPK0381
  • History: 28 sold
  • Market price:USD$263.99
    Shop price:USD$219.99

    Quantity:

    Total:

  • Shipping Cost Inquiry:
    Select shipping to China:
    HK Post Express: USD$26
    China Korea South United States Aaland Islands Afghanistan Albania Algeria American Samoa Andorra Angola Anguilla Antarctica Antigua Argentina Armenia Aruba Australia Austria Azerbaijan Bahamas Bahrain Bangladesh Barbados Belarus Belgium Belize Benin Bermuda Bhutan Bolivia Bosnia and Herzegowina Botswana Bouvet Island Brazil British Indian Ocean Territory Brunei Darussalam Bulgaria Burkina Faso Burundi Cambodia Cameroon Canada Cape Verde Cayman Islands Central African Republic Chad Chile Christmas Island Cocos (Keeling) Islands Colombia Comoros Republic of the Congo Cook Islands Costa Rica Croatia Cuba Cyprus Czech Republic Denmark Djibouti Dominica Dominican Republic Ecuador Egypt El Salvador Equatorial Guinea Eritrea Estonia Ethiopia Falkland Islands Faroe Islands Fiji Finland France French Guiana French Polynesia French Southern Territories Gabon Gambia Georgia Germany Ghana Gibraltar Greece Greenland Grenada Guadeloupe Guam Guatemala Guinea Guinea-Bissau Guyana Haiti Heard and Mc Donald Islands Honduras Hong Kong Hungary Iceland India Indonesia Iran Iraq Ireland Israel Italy Jamaica Japan Jordan Kazakhstan Kenya Kiribati Korea-North Kuwait Kyrgyzstan Latvia Lebanon Lesotho Liberia Libya Liechtenstein Lithuania Luxembourg Macau Macedonia Madagascar Malawi Malaysia Maldives Mali Malta Marshall Islands Martinique Mauritania Mauritius Mayotte Mexico Micronesia Moldova Monaco Mongolia Montserrat Morocco Mozambique Myanmar Namibia Nauru Nepal Netherlands Netherlands Antilles New Caledonia New Zealand Nicaragua Niger Nigeria Niue Norfolk Island Northern Mariana Islands Norway Oman Pakistan Palau Panama Papua New Guinea Paraguay Peru Philippines Pitcairn Poland Portugal Puerto Rico Qatar Reunion Island Romania Russian Federation Rwanda Saint Kitts and Nevis Saint Lucia Saint Vincent and the Grenadines Samoa San Marino Sao Tome and Principe Saudi Arabia Senegal Serbia Seychelles Sierra Leone Singapore Slovakia Slovenia Solomon Islands Somalia South Africa South Georgia and the South Sandwich Islands Spain Sri Lanka St. Helena St. Pierre and Miquelon Sudan Suriname Svalbard and Jan Mayen Islands Swaziland Sweden Switzerland Syria Taiwan Tajikistan Tanzania Thailand Timor-Leste Togo Tokelau Tonga Trinidad and Tobago Tunisia Turkey Turkmenistan Turks and Caicos Islands Tuvalu Uganda Ukraine United Arab Emirates United Kingdom Somaliland United States Minor Outlying Islands Uruguay Uzbekistan Vanuatu Vatican City State Venezuela Viet Nam Virgin Islands (British) Virgin Islands (U.S.) Wallis and Futuna Islands Western Sahara Yemen Zambia Zimbabwe Brunei Laos Saipan Tahiti Guernsey Island Jersey Island Canary Islands Montenegro Kosovo The Democratic Republic of the Congo Cote D'Ivoire Bonaire Curacao Nevis St.Barthelemy St.Eustatius St.Kitts St.Lucia St.Vincent Palestine Azores Guemsey

    Weight:600.0g

    Rank:comment rank 5




  • Goods Brief:

    Attribute

    Video


     SDS For Suzuki Motorcycle Diagnosis System



    Top 3 Reasons to Get SDS

    1. Languages: French,English,German,Italian,Spanish,Greek,Portuguese,Japanese,Chinese
    2. Operating System: Windows XP, Vista and 7
    3. Support Year: 2000-2012

    Notice: SDS Cannot Be Updated


    Specifications and Functions

    (1) This system diagnoses trouble by communicating with the onboard computer using specially designed software that operates on commercially available Windows 95, 98, 2000, XP, Vista and 7, the special interface box that translates/converts the computer communication signals, and the special communication cable.

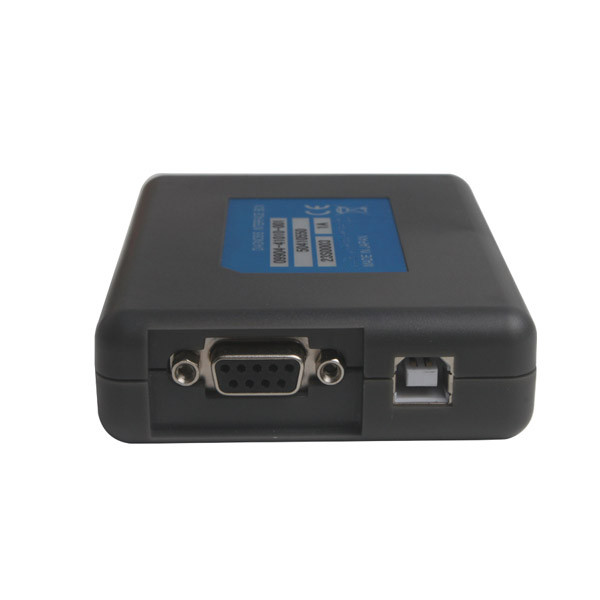

    (2) Taking application in motorcycles into consideration, the interface box has been made compact and light in weight. In addition to providing a connector to the vehicle, the system is equipped with two types of connector, USB and RS-232C, for communication with the computer so as to be compatible with both new and old computers.
    (3) The interface box is not waterproof because standardized connectors are used. The operabletemperature range is 0 – 50 °C. The maximum vibration resistance is 2.2G, which requires protection from impact and vibration.
    (4) For communication protocol between the computer and adaptor, the international standard ISO14230 is used.
    (5) This special software is compatible with nine languages
    (6) Whether the engine is operating or at halt, the data received from various sensors can be displayed in real time or can be plotted. The data or graphs displayed can be saved and printed.
    (7) The type of data to be displayed can be selected.
    (8) The saved data can be re-displayed and plotted in the graph.
    (9) The failure code (both past and current) that has been memorized at the time of failure can be called back and displayed. The change of data record at the time of failure (2 cases maximum) can also be displayed.
    (10) A"trigger" can be set up for the diagnostic data. The trigger is a function that starts recording the data from where the set value is exceeded (or comes short) for one or more data. This function can also record the timing to display the trouble code in the monitoring graph.
    (11) Active control is possible (such as secondary air solenoid drive, etc.).
    (12) The system can record the data of about 30 minutes of operation as well as driving data. They can be read out and verified.
    (13) The system requires setting up an additional function to the onboard ECU and use of a special connector. The diagnosis system is applicable to the new models produced in and after May 2002 (AN 650 onward) and their model changes. This system is not applicable to those models that were produced earlier than the above.

    Support Mode and System

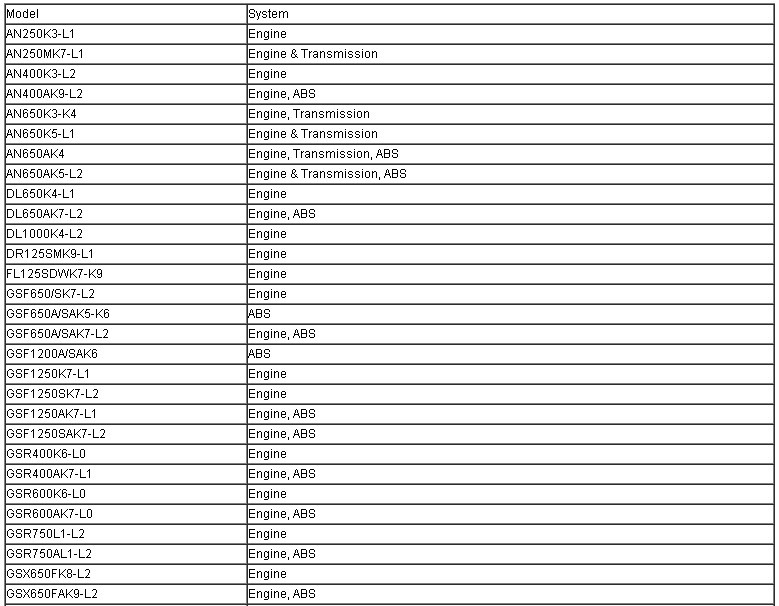

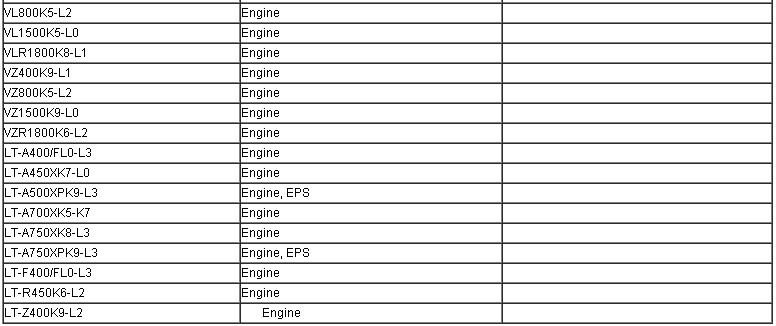

    SDS Supported Mode 1

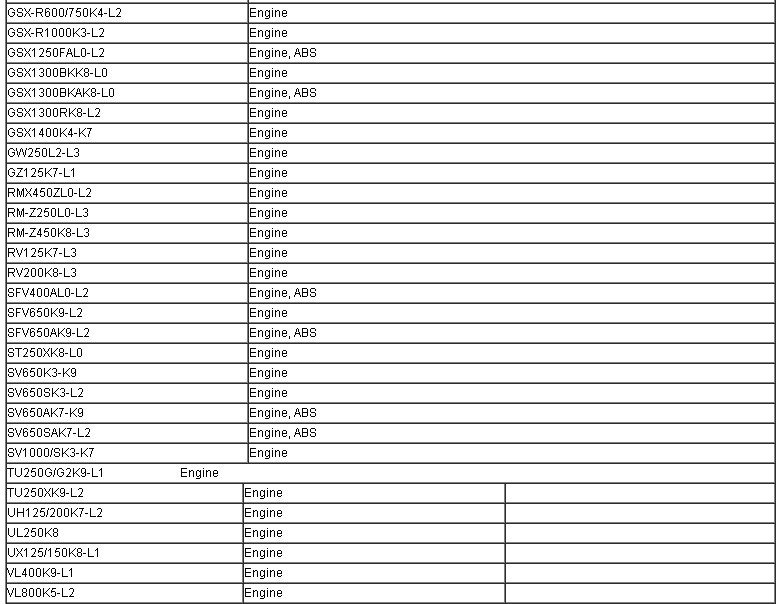

    SDS Supported Mode 2
    SDS supported Mode 3

    Failure Diagnosis Menu

    Data Monitor: Shows the present vehicle condition using a numerical or graph display.
    Executes "Data monitor".
    DTC inspection : Shows diagnostic trouble codes saved in ECU.
    Executes "DTC inspection".
    Show failure data : Shows the vehicle condition before and after failure using a numerical display.
    Executes "Show failure data".
    Active control: Controls the vehicle temporarily from the computer.
    Enables confirmation of the system.
    Executes the "Active control menu".

    Related Pictures:

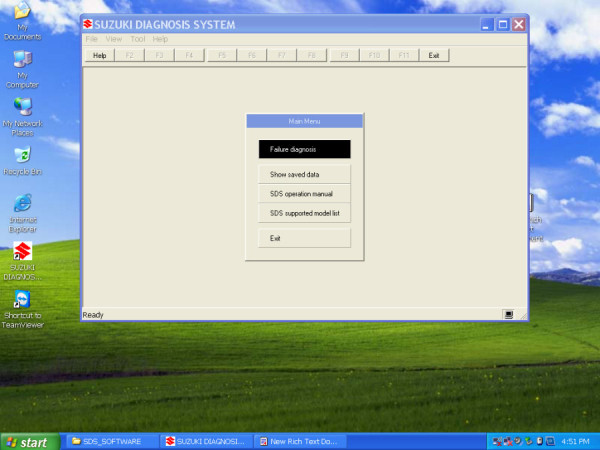

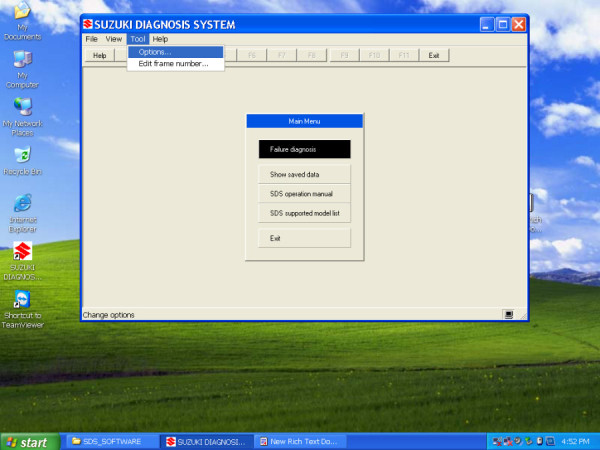

    SDS software display 1
    SDS software display 2

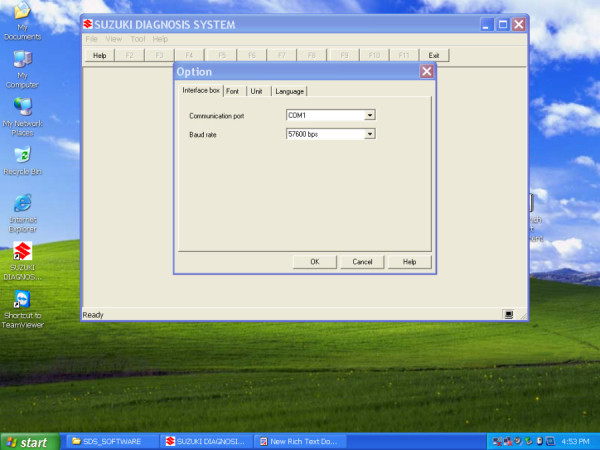

    SDS software display 3

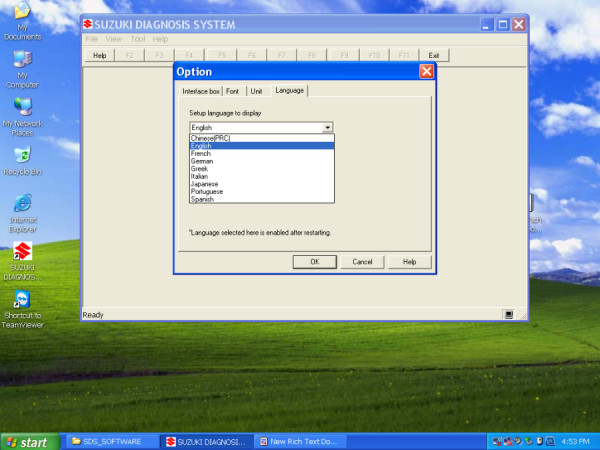

    SDS software display 4

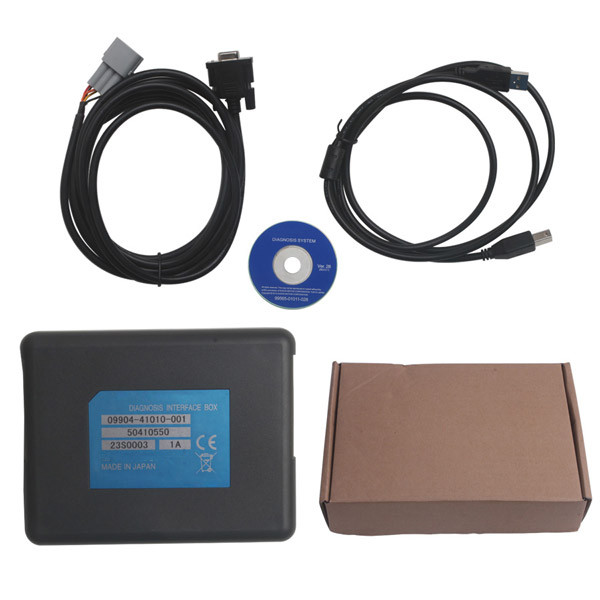

    Package list:

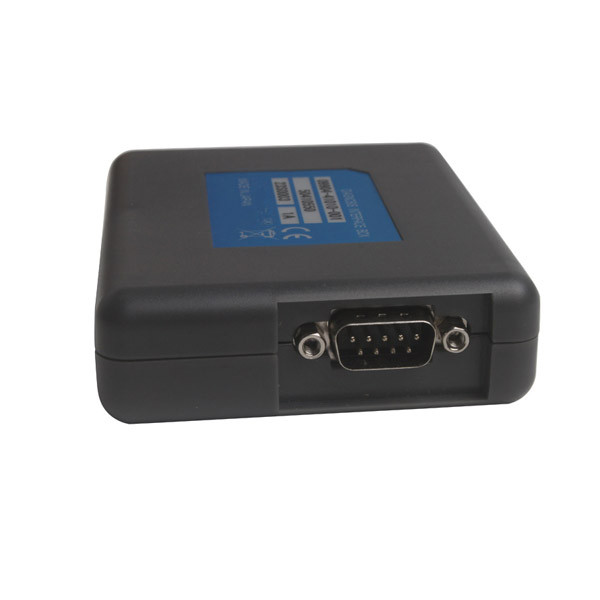

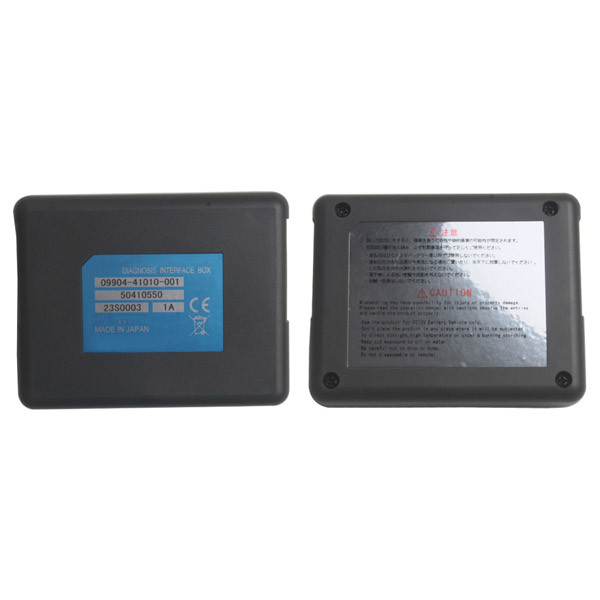

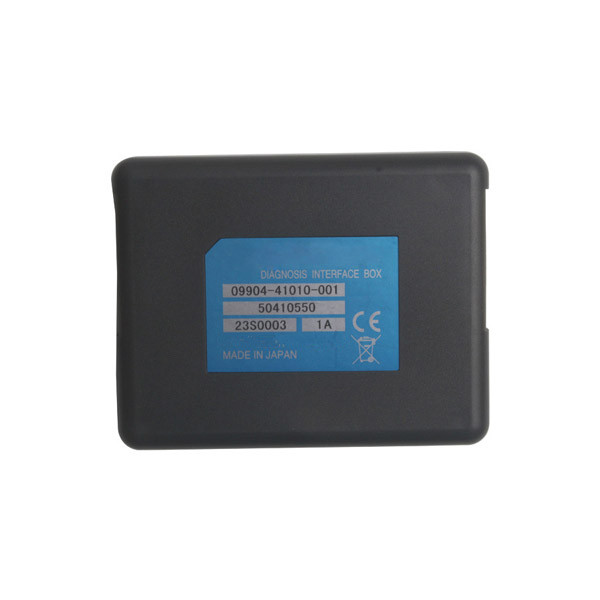

    1pc x Main Unit

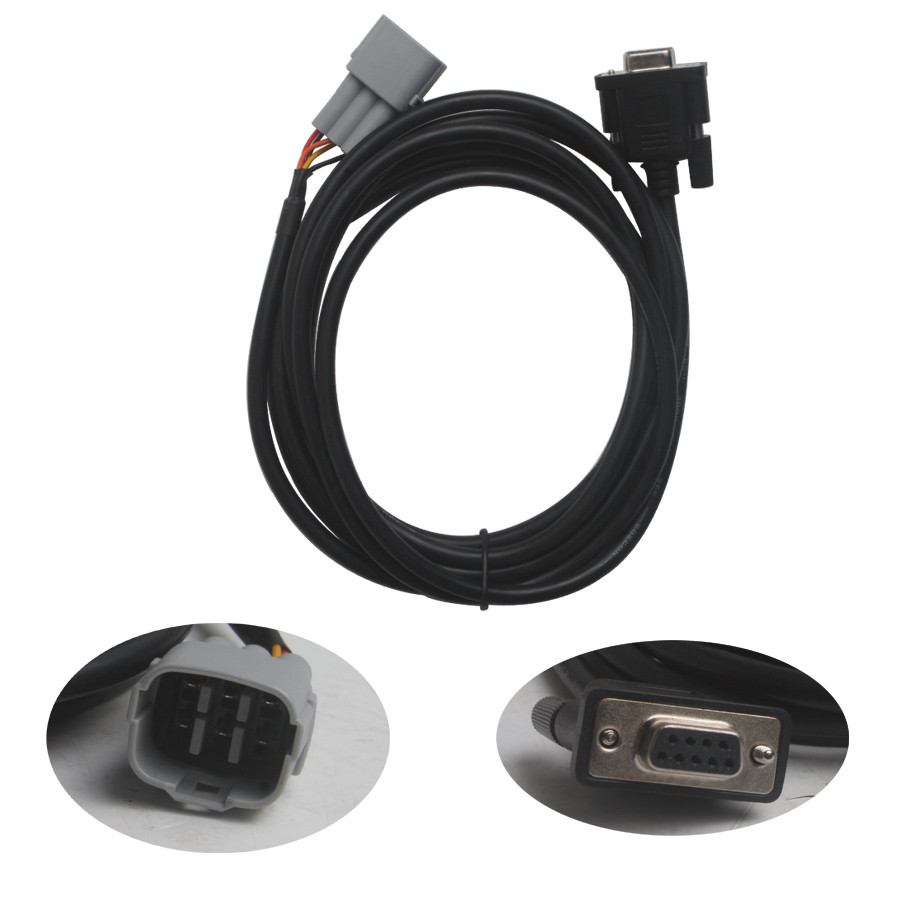

    1pc x K-line Cable

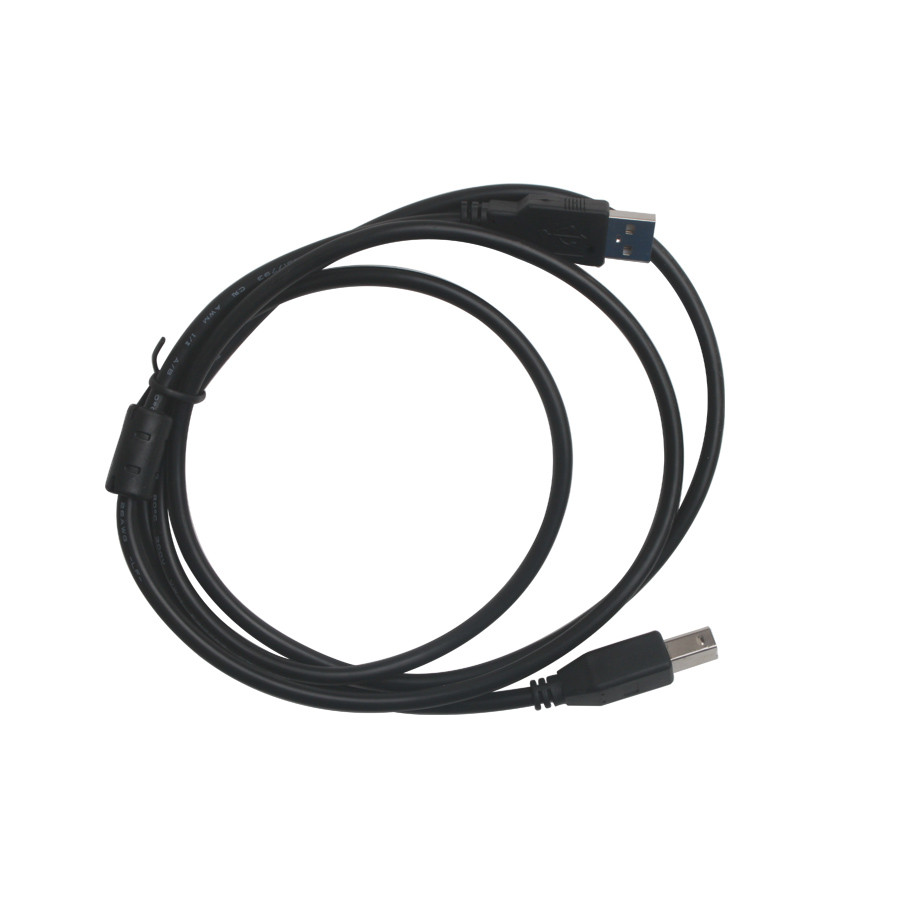

    1pc x USB Cable
    1pc x CD
