Volvo Euro6 Adblue Emulator



Top 4 Reasons To Get Volvo Euro6 Adblue Emulator:



Avoid all of adblue system errors

Do not need adblue fuel

Do not get and adblue or NOx fault

Prevent torque loss



Importance of Volvo Euro6 Adblue Emulator:

Trucks generally give adblue or nox system errors so work hard. Your truck can cause loss so some adblue errors or fault lights.

These problems cause you money and time. After installing adblue remove emulator, you dont get other adblue errors and you do not need to add adblue fuel. After the installation, your adblue fuel level will be up automatically.



Adblue Remove emulator disable these systems:

AdxBlue system (All)

AdxBlue NOX sensor

DPF system

DPF temperature sensors



DPF regeneration Supported Models:

Euro 6 for the Volvo FMX Series

Euro 6 for the Volvo FH Series

Euro 6 for the Volvo FM Series



Installation emulator for VOLVO Euro 6

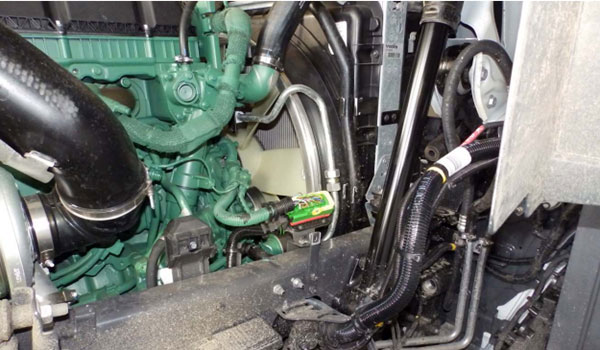

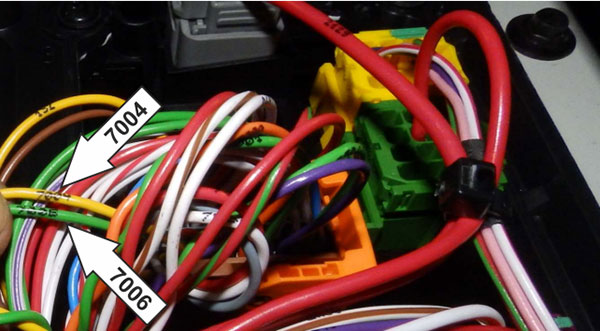

1.Find wire number 7004(CAN High)and 7006（CAN Low)located on the front of car,Like on the photo.



2.Connect wires from the emulator as follows:

YELLOW wire from emulator -->7004(CAN High)

GREEN wire from emulator -->7006（CAN Low)

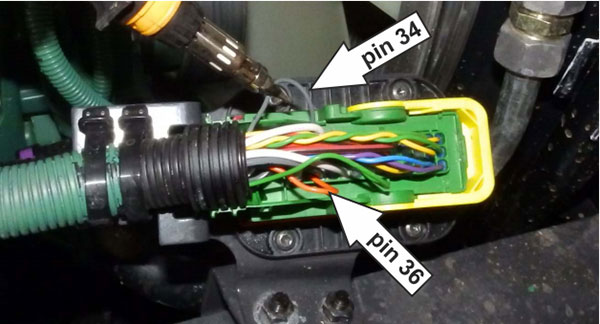

3.On the right side of the frame,locate the plug visiblity on the photo.



4.Connect wires from the emulator (two long wirds in a black isolation)as follows:

WHITE wire from emulator --> GREY wire to pin nr 34 (CAN High)

BROWN wire from emulator --> ORANGE wire to pin nr 34 (CAN low)



5.You should commect the power supply(single wires) to the unit.

BROWN wire from emulator - Ground
WHITE wire from emulator - +24V(after the ingition)

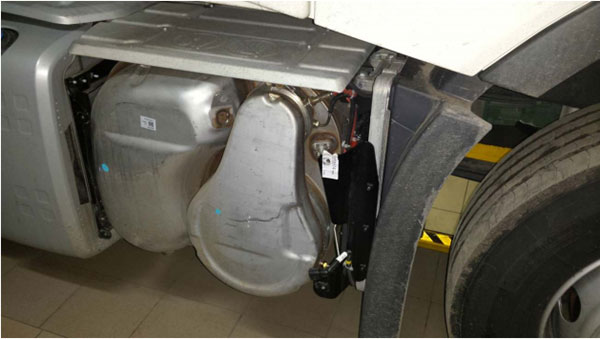

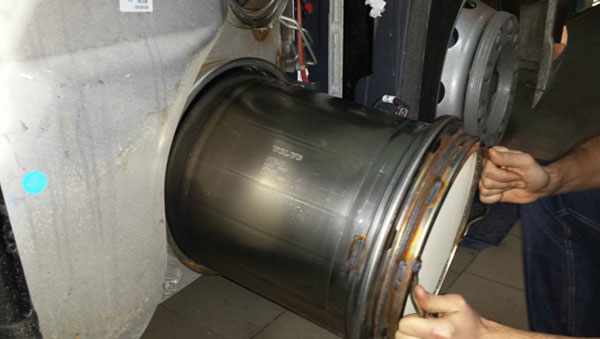

6.You should disconnect plug from the pump and remove DPF.

if car have any errors,remove them from ECU



Package List:

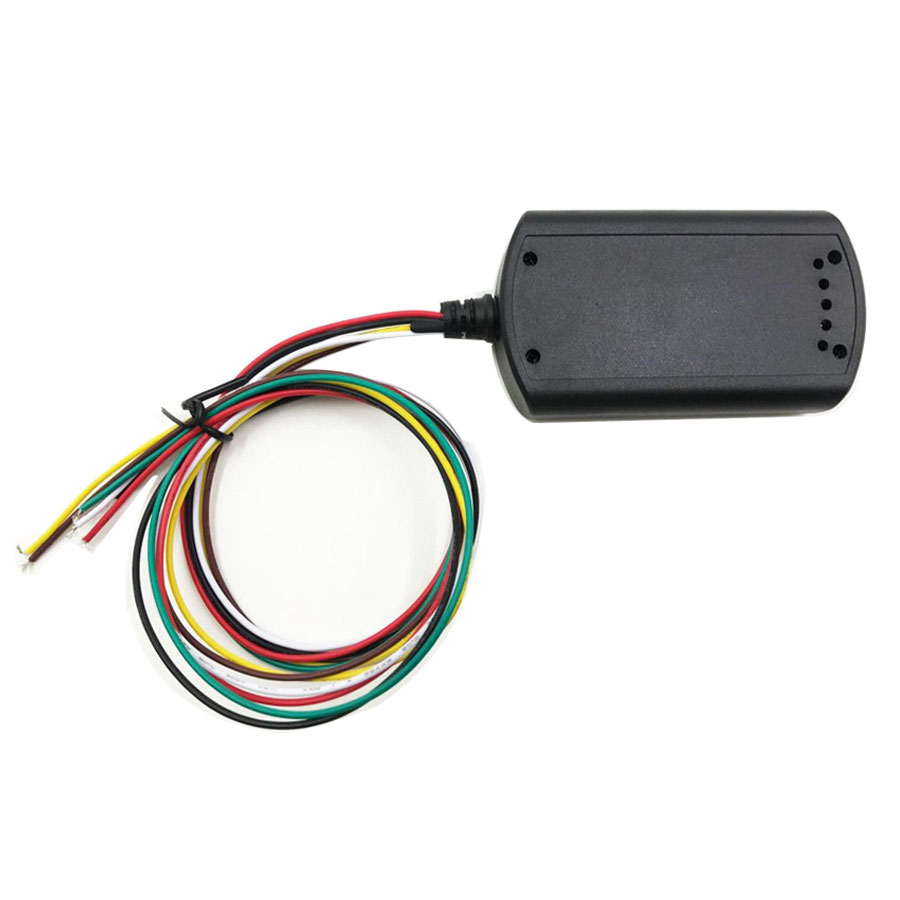

1pc x Volvo euro6 adblue emulator
