Original Autel MaxiSys Elite with Wifi/Bluetooth OBD Full Diagnostic Scanner with J2534 ECU Programming
  • Item NO. OBDAPK0823
  • Brand:Autel
  • History: 18 sold
  • Market price:USD$3431.98
    Shop price:USD$2859.99

    Quantity:

    Total:

  • Freight Inquiry

    Weight:12.2Kg

    Rank:comment rank 5




  • Goods Brief:

    Attribute

    Video

    Download

     Latest AUTEL MaxiSys Elite with J2534 ECU Preprogramming Box

    The MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming. 2x faster than any comparable device, the MaxiSys Elite provides extended battery life and intelligent power saving. The MaxiSys Elite offers a super-sensitive capacitive screen able to respond to gloved, moistened, and even greasy fingers! The ergonomically angled docking station provides optimum visibility and convenient charging that eliminates power concerns.

    Autel MaxiSYS Elite enables technicians to quickly access the Electronic Control Unit(ECU) and scan,diagnose and clear faults on the numerous system modules controlling almost every automotive make and modules controlling almost every automotive make and model on the road today.The MaxiSys Elite offers a super-sensitive capacitive screen able to respond togloved moistened,and even greasy fingers!
    Shop Manager feature simplifies your record keeping and improves customer service by saving a detailed service and repair record of its customers and their vehicles.Shop Manager detailed service reports can be generated and wirelessly printed from the Elite tablet and given to the customer.This information also can be stored on the Elite and then instantly retrieved and reviewed the next time the vehicle is in for service.

    MaxiFIX is another dynamic feature of the Elite.Acting as a gateway to the MaxiSys user community,users can share information regarding successful repairs,quick fixes and vehicle-specific trouble code information.Technicians can also contact the Autel software development team to discuss software issues encountered when diagnosing with the tool.Autel’s technical support can remotely log into the device with your tech still logged in.This real-time support produces quick and accurate solutions,allowing for simple transfer of data logs between tech and support specialists.

    Autel MaxiSYS Elite boasts an enhanced version of its renowned diagnostics software,greater processor and communication speed,improved battery lift and a convenient docking and charging station for optimal viewing and continuous use.

    AUTEL MaxiSys Elite Features:

    1. The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models
    2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
    3. Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface
    4. Automatic system and software updates with real-time push message notifications via internet
    5. Instant remote control tech support anytime, anywhere
    6. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
    7. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
    8. Unique ergonomic design with rubberized outer protection and a rugged internal housing
    9. Hardware running speed is twice than Maxysys MS908P.
    autel maxisys elite features

    AUTEL MaxiSys Elite Specifications:


    Operating System   Android 4.4.4 KitKat
    Processor   NVIDIA Tegra® 4 (4-PLUS-1 Quad-core Processor) 1.8GHz with ARM Cortex – A15 CPU
    Memory   2GB RAM & 32GB Embedded Memory
    Display   9.7” Retina display with 2048X1536 resolution & Capacitive touch screen
    Connectivity   802.11a/b/g/n/ac WIFI
    Version 2.1 3Mbs Bluetooth
    RJ45 Ethernet Connection
    3.0 USB (2.0 Compatible)
    HDMI 1.4a
    SD Card (Support up to 32GB)
    Camera   Rear: 8.0 Megapixel, Autofocus with Flashlight
    Front: 2.0 Megapixel
    Sensors   Ambient Light Sensor, G-sensor
    Audio Input/Output   Microphone
    Dual Speakers
    3-Band 3.5 mm stereo/standard headset jack
    Power and Battery   3.7V/13600mAH Lithium-polymer battery
    DC/12V/3A Power Supply
    Input Voltage   DC/12V/3A
    Power Consumption   Max 20W
    Operating Temperature   -10 to +55°C
    Storage Temperature   -20 to +70°C
    Dimensions (W x H x D)   309 X 225 X 35 (mm)
    Weight   1.59 kg
    Protocols   ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V

    AUTEL Maxysis Elite Vehicle List:

    AUDI, BENZ, BMW, DACIA, EU FORD, AU Ford, Ford, Holden, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE,GM, CHRYSLER, FORD,SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HONDA, ACCURA, MAZDA.


    Autel MaxiSYS Elite J2534 ECU Programming Device:

    autel maxisys elite j2534 function
    1. Ethernet Port
    2. USB Port
    3. Power LED-illuminates solid green when powered on
    4. Error LED-illuminates solid red when serious hardware failure occurs
    5. BT LED-illuminates solid green when connected with the MaxiSys display tablet through BT communication
    6. Ethernet LED-illuminates solid green when connected with the MaxiSys display tablet or an existing LAN via the Ethernet serial cable
    7. USB Status Light-illuminates solid green when the device is properly connected and communicating with the MaxiSys display tablet or the PC via the USB cable.
    8. Vehicle LED-flashed green when communicating with the vehicle’s network
    9. BT Antenna
    10. DC Power Supply Input Port
    11. Vehicle Data Connector(DB26-Pin MVCI)
    12. External Programming Voltage Output Port
    Attention:Do not disconnect the reprogramming device while this status light is on! If the flash reprogramming procedure is interrupted while the vehicle’s ECU is blank or only partially programmed,the module may be unrecoverable.


    Autel MaxiSYS Elite vs Autel MaxiSYS Pro 908P vs MS908 vs Mini MS905


    Comparison Autel Maxisys Elite Autel Maxisys MS908P Autel Maxisys MS908 Autel Maxisys Mini MS905
    CPU NVIDIA Tegra® 4 1.8GHZ Samsung Exynos Quad 1.4GHZ Samsung Exynos Quad 1.4GHZ Samsung Exynos Quad 1.4GHZ
    OS Android 4.4.4 KitKat AndroidTM 4.0 ICS AndroidTM 4.0 ICS AndroidTM 4.0 ICS
    SSD HD 32GB 32GB 32GB 32GB
    Touch Screen 9.7” 2048X1536 LCD Capacitive 9.7" 1024x768P LED capacitive 9.7" 1024x768P LED capacitive 7.9" 1024x768P LED capacitive
    Connectivity USB 3.0/WLAN/BT USB 2.0/WLAN/BT USB 2.0/WLAN/BT USB 2.0/WLAN/BT
    Dual Brand Wifi G/N ≥10GHz 2.4 & 5 GHz 2.4 & 5 GHz 2.4 & 5 GHz
    Internal Battery Y Y Y Y
    Weight 3.5lb 3.12lb 3.12lb 1.54lb
    Camera(Rear) 8.0 Megapixel/AF/Flash 5.0 Megapixel/AF/Flash 5.0 Megapixel/AF/Flash 5.0 Megapixel/AF/Flash
    Wireless BT VCI USE J2534 USE J2534 Y Y
    Optional Lab Scope Y Y Y Y
    Optional Video Scope Y Y Y Y
    Boot Up Time 15 secs 20 secs 20 secs 20 secs
    Autel's Powerful OEM Level Coverage Y Y Y Y
    AUTO VIN Technology Y Y Y Y
    Maxifix Cloud Based Info System Y Y Y Y
    Shop Manager Y Y Y Y
    ECU Coding Advanced Advanced Y Y
    ECU Flash Porgramming Y Y Optional W/ Maxiflash Kit N
    1996-2001 Connector Kit Complete Connector kit Complete Connector kit Complete Connector kit OBDII Connector Kit Optional Connector Kit
    J2534 Hardware Included Included Optional N



    AUTEL Maxysis Elite Package Including:

    1pc x Maxisys Elite Interface

    AUTEL Maxysis Elite Accessories as follows:

    AUTEL Maxysis Elite Accessories

    autel maxisys elite adapters
    1pc x Lighter Fuse
    1pc x GM/Daewoo-12 adaptor
    1pc x PSA-2 adaptor
    1pc x Fiat-3 adaptor
    1pc x BMW-20 adaptor
    1pc x Benz-38 adaptor
    1pc x Kia-20 adaptor
    1pc x Mitsubishi/Hyundai-12+16 adaptor
    1pc x Nissan-14 adaptor
    1pc x Honda-3 adaptor
    1pc x USB Cable
    1pc x Cigarette Lighter
    1pc x Compact Disc (CD)
    1pc x AC/DC External Power Adapter
    1pc x Clipper Cable

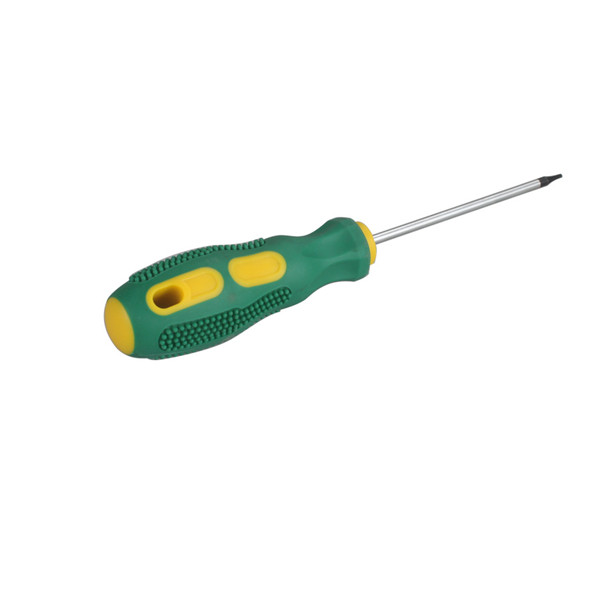

    1pc x Screwdriver
    1pc x VW/AUDI-2+2 adaptor
    1pc x Chrysler-16
    1pc x Benz-14 (Optional)
    1pc x Mini USB Cable
    1pc x Ethernet Serial Cable
