Faslink M2 OBD2 Scanner Faslink M2 OBD2 Bluetooth Adapter For IOS/Android Replace Bluedriver

Faslink M2 OBD2 Scan Tool Faslink M2 OBD Reader Repalce ELM327/BlueDriver



It uses screwless assembly, logo LED indicator, non-slip design shell with environmentally friendly solder paste material, industrial designs with smaller size makes sure it long lifetime, healthy, safety, beautiful and easier to carry



Faslink M2 OBD2 Scanner Software Highlights:



Multi-lanuage: English, Germany, France, Spain ,Italy, Portuguese, Japanese, Russian, Chinese

Download , Scan Faslink M2 upside QR Code to download App

Compatible: Installed on IOS/Android Mobile

First time use guide function when you use it first time

Anti-lost function will alarm when bluetooth disconnect

User-defined sort Icon, more convenient & friendly for working

Update Online, free update lifetime

Faslink M2 Echo: Smart voice function help your hands free when diagnostic cars

Bluetooth 4.0: Support one-click connection for high-speed communication transmission and multi-end connections, achieving diagnostic & calling at the same time









Faslink M2 OBD2 Scanner Functions:



READ & CLEAR CODES : Read and clear diagnostic trouble codes (DTCs) such as confirmed, pending and permanent check engine codes, Read manufacturer specific code



MIL STATUS: Malfunction Indicator lamp



FREEZE FRAME :Freeze Frame data is a snapshot of the vehicle when the Freeze Frame code was stored.



SMOG CHECK :Check if the vehicle is ready for a smog or emissions test.



O2 SENSOR:Check all the Oxygen Sensors

MODE 6 :Advanced test results (like misfire counts) for on-board diagnostic system monitors.



VEHICLE INFO: Search vehicle info via VIN, vehicle info including vehicle specification( Model Year, Manufacturer, Engine Power etc.), recalls, service bulletins



BATTERY TEST: Directly test the battery of the loss of electricity , bad cell battery, applicable to a variety of models, all kinds of batteries , and a variety of system mode



SAVED REPORTS :For each DTC, generate a report for that specific vehicle that contains information such as Code Definition, Possible Cause(s) and Reported Fixes.



MAINTENANCE: TPMS Reset, Service Light Reset, Brake Reset, Service Oil Reset

DTC Lookup?one step to search diagnostic trouble codes (DTC's)

LIVE DATA:Capture and share any live data supported by the vehicle, 3 types display can be choose



MORE:

User Manual, Firmware Update, Order Faslink, Contact Us, Settings, RATE & REVIEW

Faslink M2 OBD2 Bluetooth Adapter Support Vehicles:

Faslink M2 cover all Americam, Canada, European & Asian Japan vehicles with 16pin OBD portfrom 1996 till now

Faslink M2 OBD2 Bluetooth Adapter Support Protocol:



SAE J1850 PWM
ISO9141-2
ISO1430-4 KWP
SAE J1850 VPW
ISO15765-4 CAN

Faslink M2 OBD2 Bluetooth Adapter  Parameter:
Minimum starting voltage:7.9V
Maximum operating voltage:30V
Working temperature: -20?~40?
Storage temperature: -30?~70?

Working current: 0.24A





Faslink M2 OBD2 Bluetooth Scanner App Display:

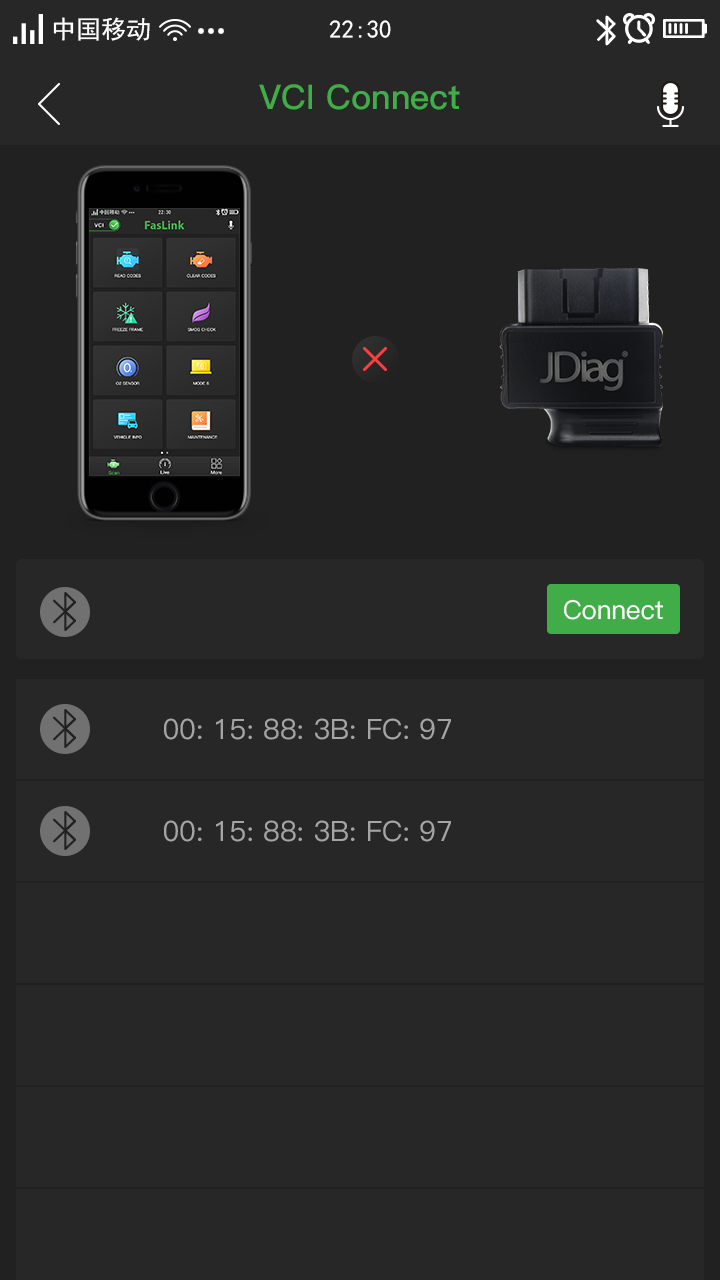

BlueTooth Connection



Firmware Update and DTC Look Up:





Live data:

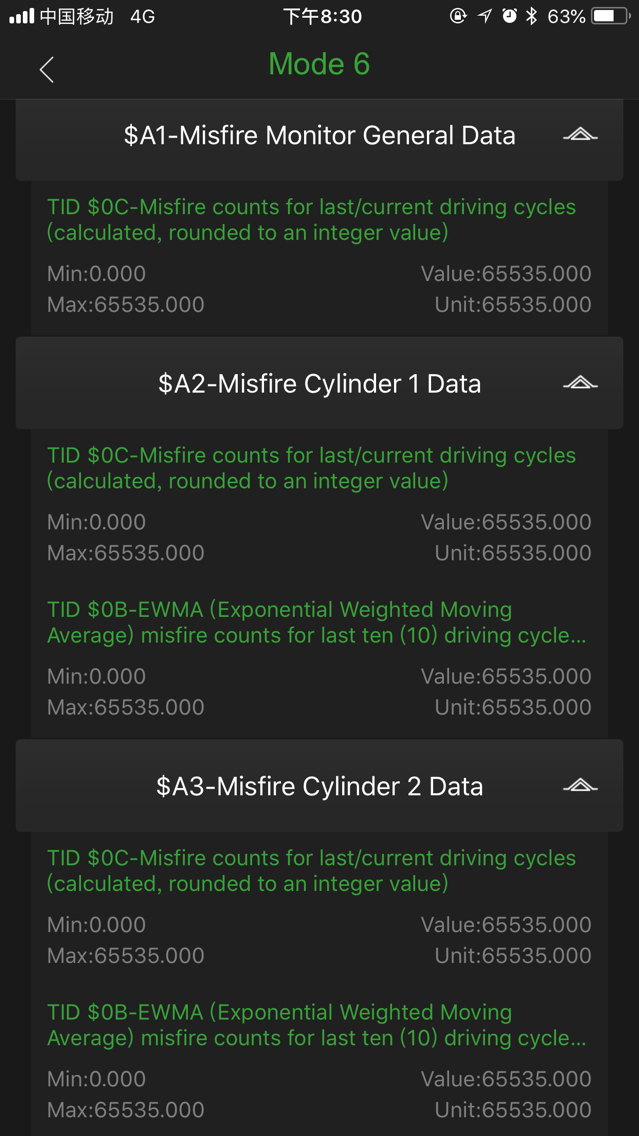

Mode 6:

Faslink M2 Packing List:

1 x Faslink M2 VCI

1 x Faslink M2 User Manual
