GODIAG GT100 AUTO TOOLS OBDII Break Out Box ECU Connector
  • Item NO. OBDAPK1246
  • Brand:GODIAG
  • History: 8 sold
  • Market price:USD$155.98
    Shop price:USD$129.99

    Quantity:

    Total:

  • Shipping Cost Inquiry:
    Select shipping to China:
    HK Post Express: USD$29
    China Korea South United States Aaland Islands Afghanistan Albania Algeria American Samoa Andorra Angola Anguilla Antarctica Antigua Argentina Armenia Aruba Australia Austria Azerbaijan Bahamas Bahrain Bangladesh Barbados Belarus Belgium Belize Benin Bermuda Bhutan Bolivia Bosnia and Herzegowina Botswana Bouvet Island Brazil British Indian Ocean Territory Brunei Darussalam Bulgaria Burkina Faso Burundi Cambodia Cameroon Canada Cape Verde Cayman Islands Central African Republic Chad Chile Christmas Island Cocos (Keeling) Islands Colombia Comoros Republic of the Congo Cook Islands Costa Rica Croatia Cuba Cyprus Czech Republic Denmark Djibouti Dominica Dominican Republic Ecuador Egypt El Salvador Equatorial Guinea Eritrea Estonia Ethiopia Falkland Islands Faroe Islands Fiji Finland France French Guiana French Polynesia French Southern Territories Gabon Gambia Georgia Germany Ghana Gibraltar Greece Greenland Grenada Guadeloupe Guam Guatemala Guinea Guinea-Bissau Guyana Haiti Heard and Mc Donald Islands Honduras Hong Kong Hungary Iceland India Indonesia Iran Iraq Ireland Israel Italy Jamaica Japan Jordan Kazakhstan Kenya Kiribati Korea-North Kuwait Kyrgyzstan Latvia Lebanon Lesotho Liberia Libya Liechtenstein Lithuania Luxembourg Macau Macedonia Madagascar Malawi Malaysia Maldives Mali Malta Marshall Islands Martinique Mauritania Mauritius Mayotte Mexico Micronesia Moldova Monaco Mongolia Montserrat Morocco Mozambique Myanmar Namibia Nauru Nepal Netherlands Netherlands Antilles New Caledonia New Zealand Nicaragua Niger Nigeria Niue Norfolk Island Northern Mariana Islands Norway Oman Pakistan Palau Panama Papua New Guinea Paraguay Peru Philippines Pitcairn Poland Portugal Puerto Rico Qatar Reunion Island Romania Russian Federation Rwanda Saint Kitts and Nevis Saint Lucia Saint Vincent and the Grenadines Samoa San Marino Sao Tome and Principe Saudi Arabia Senegal Serbia Seychelles Sierra Leone Singapore Slovakia Slovenia Solomon Islands Somalia South Africa South Georgia and the South Sandwich Islands Spain Sri Lanka St. Helena St. Pierre and Miquelon Sudan Suriname Svalbard and Jan Mayen Islands Swaziland Sweden Switzerland Syria Taiwan Tajikistan Tanzania Thailand Timor-Leste Togo Tokelau Tonga Trinidad and Tobago Tunisia Turkey Turkmenistan Turks and Caicos Islands Tuvalu Uganda Ukraine United Arab Emirates United Kingdom Somaliland United States Minor Outlying Islands Uruguay Uzbekistan Vanuatu Vatican City State Venezuela Viet Nam Virgin Islands (British) Virgin Islands (U.S.) Wallis and Futuna Islands Western Sahara Yemen Zambia Zimbabwe Brunei Laos Saipan Tahiti Guernsey Island Jersey Island Canary Islands Montenegro Kosovo The Democratic Republic of the Congo Cote D'Ivoire Bonaire Curacao Nevis St.Barthelemy St.Eustatius St.Kitts St.Lucia St.Vincent Palestine Azores Guemsey

    Weight:1.0Kg

    Rank:comment rank 5




  • Goods Brief:

    Attribute

    Video


     GODIAG GT100 AUTO TOOLS OBD II Break Out Box ECU Connector


    GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance / diagnosis / programming / coding.
    It can convert the car OBD2 interface into 16 pin for signal detection and electrical level  conversion. Able to connect the single modules or multiple modules of the vehicle. It can be connected with any diagnostic tool to tell whether the car communication is good or not. It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, the key remote control fails and the fault light turns on.

    Warranty: One Year.


    GODIAG GT100 AUTO TOOLS OBDII Break Out Box ECU Connector

    GODIAG GT100 function and operation guide

    - By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100's LED will indicate whether the OBDII diagnostic interface has a good communication with the car.
    - Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.
    GODIAG GT100 AUTO TOOLS OBDII Break Out Box ECU Connector

    Indicator Meaning:


    1. Manufacturer custom
    2. SJE1850 wire
    3. Manufacturer custom
    4. Power grounding
    5. Signal grounding
    6. SAEJ2284《CAN》high
    7. ISO9141-2&iso, DIS4230-4K wire
    8. Manufacturer custom
    9. Manufacturer custom
    10. SJE1850 wire《bus->
    11. Manufacturer custom
    12. Manufacturer custom
    13. Manufacturer custom
    14. SAEJ2284《CAN》low
    15. ISO9141-2 & ISO/DIS 4230-4L wire
    16. Car battery positive


    1. OBDII Protocol Detector & communication detection

    GODIAG GT100 AUTO TOOLS OBDII Break Out Box ECU Connector

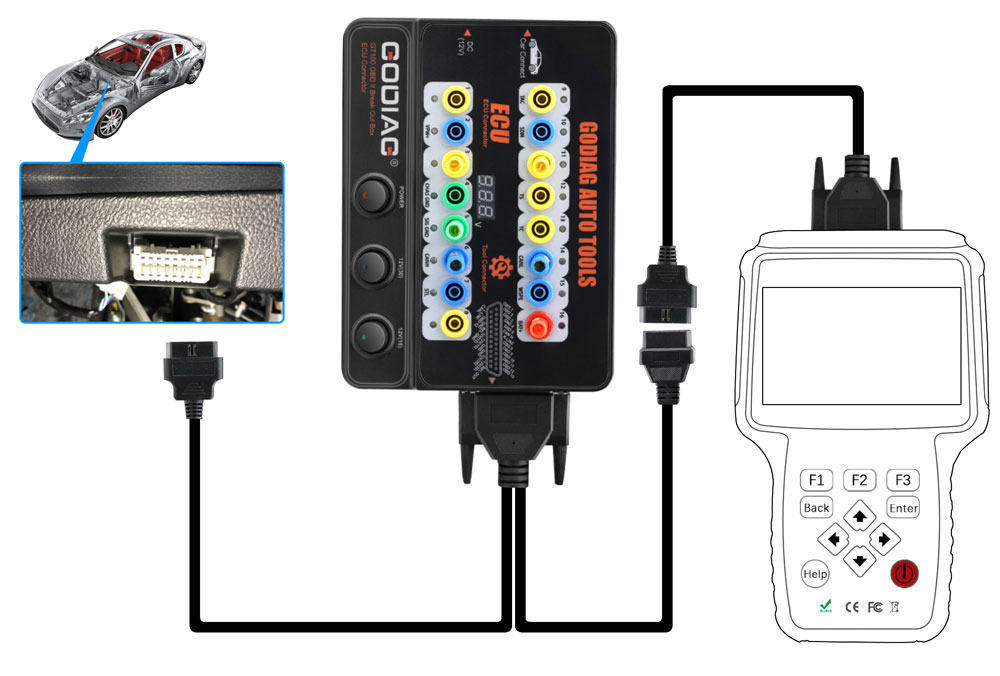

    1). Connect GODIAG GT100 to the OBDII diagnostic port of the car.

    2). When the device displays the voltage, turn on the power switch of GODIAG GT100.
    3). Then connect to the diagnostic tool, when the tool is communicating with the car, the LED indicator of corresponding protocol will light up or flash. ( If the CAN protocol is detected, it will have the maximum brightness. When the communication is successful, the corresponding CAN-H and CAN-L will dim or twinkling weakly)

    2. ECU connection: single module connection
    GODIAG GT100, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.

    GODIAG GT100 AUTO TOOLS OBDII Break Out Box ECU Connector
    1). Connect the ECU with the color jumpers. (If the ECU is CAN protocol, please check whether you will need to connect a 120 ohm resistor.)
    2). The Godiag GT100 can be powered by connecting to the OBDII diagnostic interface of car, or by an AC power adapter.
    3). To diagnose and program for a single ECU by connecting the diagnostic tool or ECU programmer.

    3. Banana plug extension connection:
    Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.
    GODIAG GT100 AUTO TOOLS OBDII Break Out Box ECU Connector
    4. Convert OBD1 diagnostic interface to the standard OBD2
    Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.

    GODIAG GT100 AUTO TOOLS OBDII Break Out Box ECU Connector


    5. Connect multiple ECU control modules at the same time, which is convenient for the professional engineers to detect and maintain.

    GODIAG GT100 AUTO TOOLS OBDII Break Out Box ECU Connector


    6. When to use the extension cables:
    The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 1.2 meters.

    GODIAG GT100 AUTO TOOLS OBDII Break Out Box ECU Connector
    7. Able to power the car when replacing the used battery.
    GODIAG GT100 AUTO TOOLS OBDII Break Out Box ECU Connector
    1). Prepare battery A to supply power by connecting to No. 16 / 4 / 5 holes of Godiag GT100 & to the OBD2 diagnostic interface of the car.
    Notice
    *Turn on the power switch of Godiag GT100.
    *Don't turn on the ignition switch, don't start the car.

    2). Then replace the brand-new battery B with the used battery in the car, which will ensure that the car has fully power to prevent data loss and audio lock-up or the malfunction due to lack of power to the ECU control module.

    8. The dedicated adapter will be released (help GT100 connect to the special ECU module)
    GODIAG GT100 AUTO TOOLS OBDII Break Out Box ECU Connector

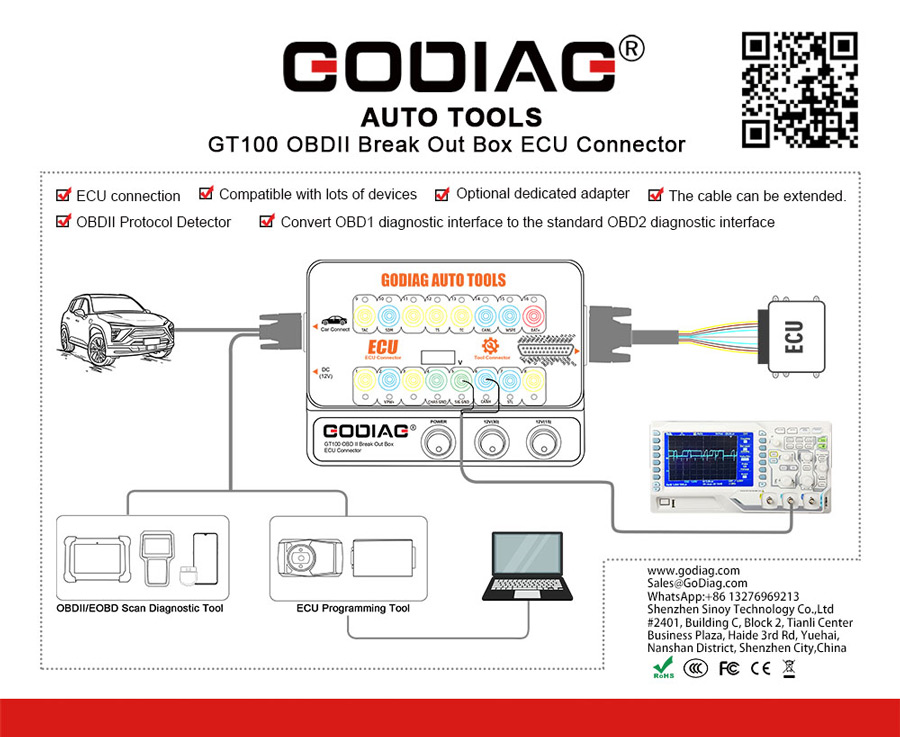

    Hardware Connection Diagram:
    GODIAG GT100 AUTO TOOLS OBDII Break Out Box ECU Connector



    Godiag GT100 Parameter


    Item Specification
    Diagnostic port OBDII
    Working voltage DC 9V-24V
    Work and power 0.5-0.6W
    Adapter power Input AC100v-240v, Output DC12V 1A
    Operating temperature range -20 to 70 °C ( -4 to 158 °F )
    Storage temperature range -40 to 85 °C ( -40 to 185 °F )
    Dimension L: 23cm, W:18cm, H:7cm

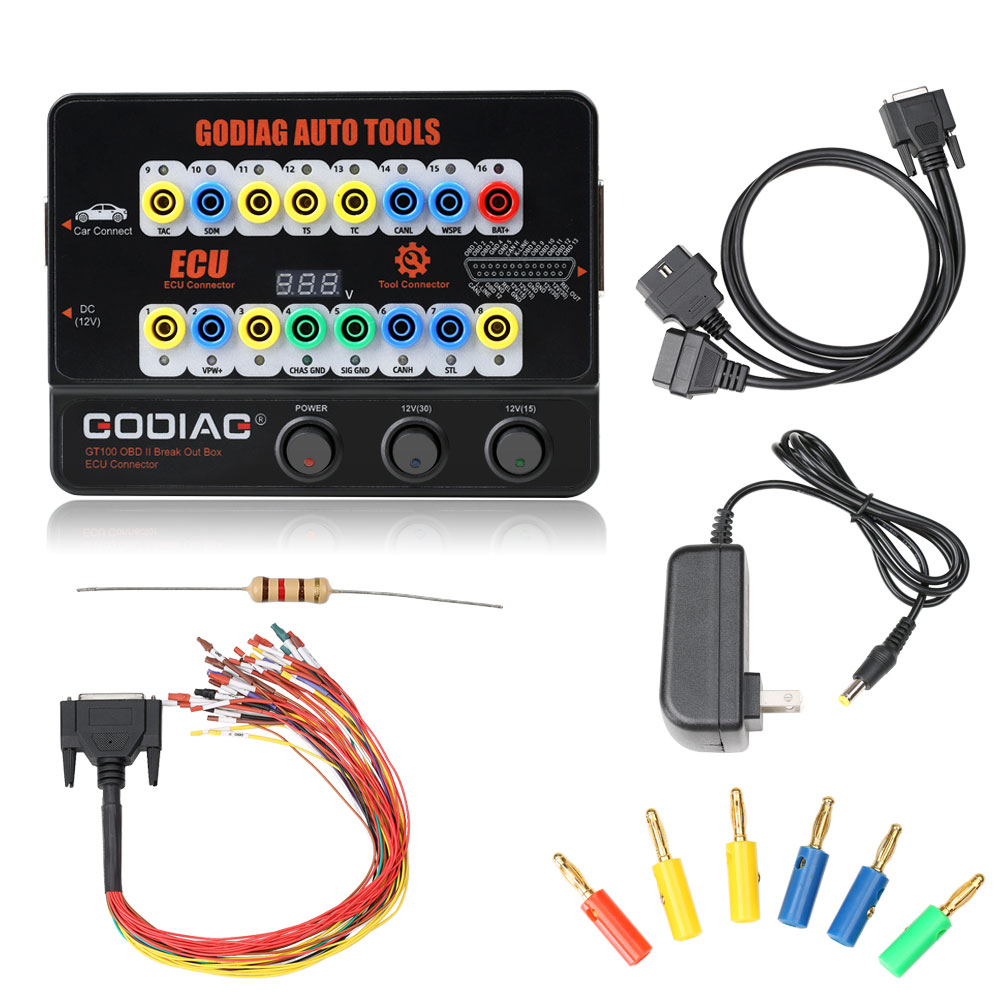

    Package includes:

    1pc x Host
    1pc xOBD 2-in-1 extension cable
    1pc xColored jumper cable
    1pc xPower supply 12V
    1pc xResistance 120 ohm
    6pcs xBanana plug
    24pcs xWire accessories, Dupont 2.54mm connector female pins
