Launch X431 HD Heavy Duty Adapter Box X431 HD Module Bluetooth Truck Diagnostic Adapter+Truck Software for X431 V+/PRO 3
  • Item NO. OBDAPK0696
  • Brand:Launch X431
  • History: 8 sold
  • Market price:USD$899.98
    Shop price:USD$749.99

    Quantity:

    Total:

  • Freight Inquiry

    Weight:8.0Kg

    Rank:comment rank 5




  • Goods Brief:

    Attribute

    Video

    Download

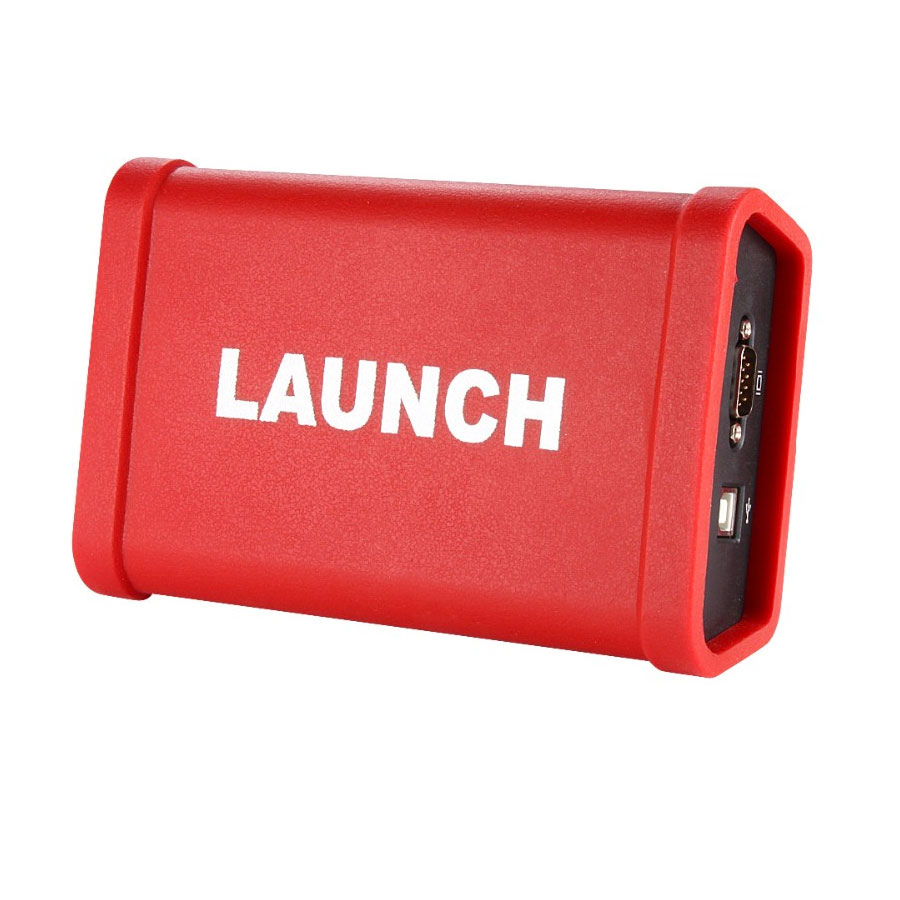

    X431 Heavy Duty HD Truck Diagnostic Model

    X431 HD Module highlights:
    1.Android heavy duty truck diagnostic modue

    2.Cummunicates with LAUNCH X431 V+ / X431 PRO3 / X431 PAD II(and it also works with other Andorid tablets, witch comes with ROM 4G, RAM 8G.)

    3.Wireless Bluetooth Trucks Diagnosis

    4. Support 79 trucks brands moles

    5.The heavy-duty kits include hardware and software(software update online,589USD/Year)


    X-431 Heavy Duty HD Truck Diagnostic Model Feature:
    Wireless Bluetooth Diagnosis
    Host machine and diagnostic connector adopt Bluetooth connection, making diagnosis more convenient.

    Support various car models
    34 car model software, support more than 60 car models. Moreover, the software is being continuously developed.

    Industrial shockproof design
    Industrial shockproof design is perfect for the working environment in repair shops.

    Various configurations are available for selection
    Suppose you are going to purchase heavy-duty truck diagnostic tool, you can choose X-431 V/V+ as host machine. If you have already bought X-431 V/V+ diesel configuration,
    now you want to test truck, just buy a heavy-duty truck module.
    Full comprehensive diagnostic software functions.

    Wide diagnostic software coverage.
    Accurate test data.
    Software based on Android, matching with more diagnostic hosts.
    Release new software version timely to let customers enjoy latest service.
    Able to test truck with 12V or 24V battery diesel engine. When testing 24V truck, battery conversion is not required.
    Diagnostic hardware is designed according to international standard, compatible with diagnostic interfaces of worldwide models.


    Supported Brands
    Europe
    MERCEDES-BENZ
    MAN
    VOLVO
    SCANIA
    IVECO
    DAF
    RENAULT

    USA
    FREIGHTLINER
    INTERNATIONAL
    KENWORTH
    PETERBILT
    STERLING
    WESTERN STAR
    MACK
    DETROIT ENGINE
    CUMMINS ENGINE

    Asia
    HINO
    FUSO
    ISUZU
    UD
    HYUNDAI
    Chinese Heavy duty Truck


    Launch X431 HD Technical Data:
    Working Temperature: -20°C ~ 70 °C
    Storage Temperature: -30°C ~ 80 °C
    Relative Humidity: 10% ~ 80%
    Working Voltage: 9-36V
    Product Size: 178 x 115 x 50.5 mm
    Product Weight: 487g
    Communication: USB, Bluetooth, Serial Port
    Standby Power Consumption: 1.44W


    Heavy Duty Truck Diagnostic Software Listing:
    1pc x Heavy-duty bluetooth module
    1pc x Demo V14.73
    1pc x JMC V12.35
    1pc x ASTRA V10.42
    1pc x BREMACH V10.06
    1pc x DAF V11.21
    1pc x ERF V10.05
    1pc x for FUSO V16.02
    1pc x for MACK V10.32
    1pc x for MAN V14.71
    1pc x for SCANIA V13.51
    1pc x WP Diesel Car V10.40
    1pc x X431 Diesel Car V1010
    1pc x X431,CREDO Heavy Duty V10.20
    1pc x X431,IRISBUS Heavy Duty V10.02
    1pc x X431,IRIZAR Heavy Duty V10.02
    1pc x X431,NEOPLAN Heavy Duty V10.04
    1pc x X431,SETRA Heavy Duty V11.00
    1pc x X431,SITCAR Heavy Duty V10.05
    1pc x X431,UD Truck 2F JP diesel V10.40
    1pc x X431, BONLUCK BUS V10.05
    1pc x X-431,DongFeng YUFeng V10.03
    1pc x X431, for Renault Truck V11.30
    1pc x X431, for SUNLONG BUS V10.10
    1pc x X431, for SUNWIN BUS V10.01
    1pc x X431,ZHONGTONG BUS V10.01
    1pc x for Merce.des Ben.z Heavy Duty V16.30
    1pc x for FOTON AUMAN V13.40
    1pc x for Volvo Heavy Duty V14.83
    1pc x for Cummins Engine V14.41
    1pc x for Hino Motors V16.50
    1pc x for Isuzu Heavy Duty V14.10
    1pc x for Hyundai Heav Duty V11.06
    1pc x for IVECO Heavy Duty V18.87
    1pc x China Heavy Duty V11.21
    1pc x Heavy Duty Standard Diagnostic V11.11


     How to Download and Install X-431 HD Module App?
    1. Visit the LAUNCH website and download the application corresponding to X-431 HD module;
    Note: If downloading using the diagnostic tool please make sure Wi-Fi has good or strong signals.
    2. Follow the on-screen instructions to install it. Once installation is complete, an application icon will appear on the HOME screen.

    How to Activate X-431 HD Module?
    After purchasing X-431 HD module, you have to activate it before use.
    Follow the steps below to proceed:
    1. Launch the application, and tap setting button to enter;
    2. Tap “Profile” from the pull-down menu, and then tap “Connector Activation”;
    Launch X431 HD Heavy Duty Adapter Box X431 HD Module Bluetooth Truck Diagnostic Adapter+Truck Software for X431 V+/PRO 3

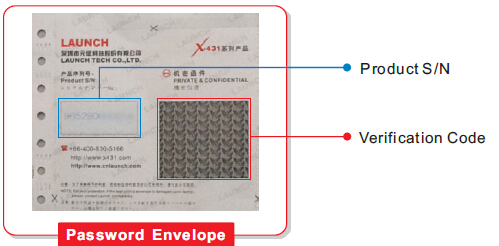

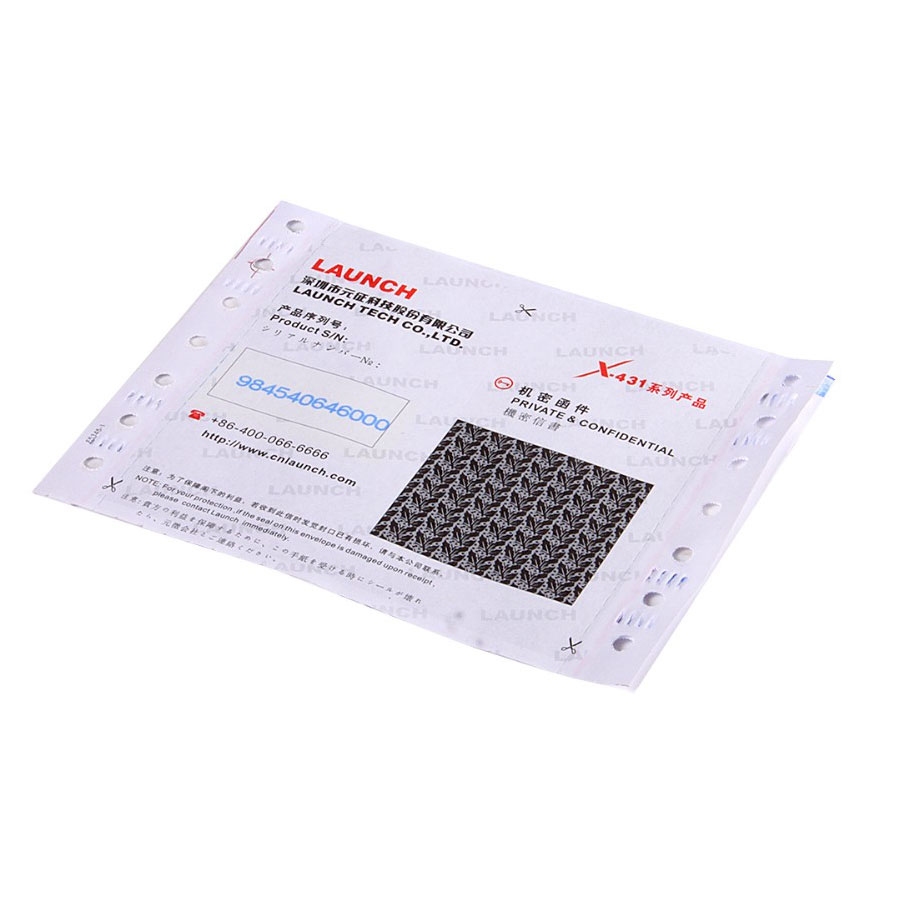

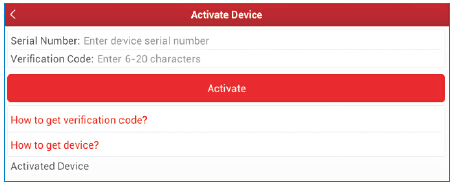

    3. Input the Serial Number and Verification Code, which can be found in the included password envelope. Tap “Activate”.

    Launch X431 HD Heavy Duty Adapter Box X431 HD Module Bluetooth Truck Diagnostic Adapter+Truck Software for X431 V+/PRO 3

    How to set up Launch X-431 HD Module Bluetooth?
    Before diagnosing a vehicle, you are suggested to make a Bluetooth pair between X-431 HD module and the diagnostic tool. Proceed as follows:
    1. Enter Bluetooth setting screen (“Settings” --> “Bluetooth”), slide the Bluetooth switch to ON and will start searching all available Bluetooth devices.
    2. Tap the desired one, then key in the PIN code (the default value is 0000) in the pop-up dialog box, and then tap “Pair”.

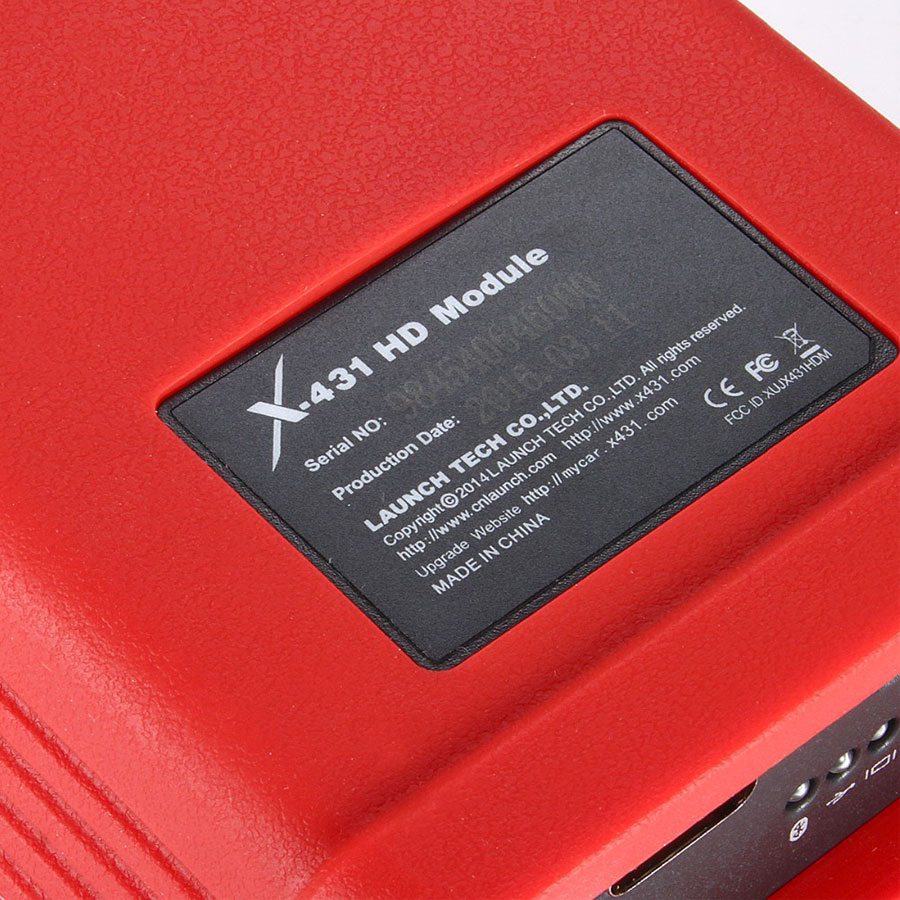

    By default, the Bluetooth name is 98454*****00 (where ***** stands for 5 digits.).
    3. Once it is paired successfully, it will appear in the paired devices list.
    Note: If no Bluetooth setting is done before diagnostic application is launched, you can also configure it while using the software.
