X431 PRO3 Launch X431 V+ Wifi/Bluetooth Global Version Full System Scanner

Top 9 Reasons to Get Launch X431 V+:

1. Supported Languages: English, Spanish, Arabic, French, Korean, Japanese, German, Russian
2. Wi-Fi: Supported

3. Bluetooth: Supported
4. Dealer Code: 86A or 86K
5. One click update: You do not have to download software to memory card anymore, can do one click update directly through your machine.

6. There is User Manual in the Multiplexer, you can check it when you use the device. It is in "cnlaunch" file

7. Two Years Free Update Online, After Two Years, It Cost 459usd/year,130USD/time,  if you don't want to update, the old software can still work too

8. Oversea full configuration contains total 59 softwares,See attached configuration Software List
9. No Software download IP limitation: Oversea download and update available

Notice:
When you receive the device, contact our customer sevice and advise the Serial number of your device, also the language and country you want to open authorization,after authorization finished, then you can log on Launch DBSCar Website to register CC account and download software you want


What are the advantanges of X431 V+?



1. HUAWEI HiSilicon Quod-core 1.2G HZ, speed faster.

2. 1GB memory and 8GB storage for data.

3. Contain 72 car brand from USA, European, Asia and so on.

4. Support wifi/bluetooth and one click update, make your update job much easier.

5. 6600mAh Li battery can let you continue work 8 hours.

6. HUAWEI HiSilicon Quod-core 1.2G HZ, speed faster.

7. Original goods with full time technical service and guarantee.
8. 10.1 inch multi touch capacitor screen give you better view for diagnose and data stream.


X-431 V+ Description:



X-431 V+ is taking the advantage of mobile internet, can share maintenance data and case library, provide instant maintenance information, and build public and private maintenance social circle,etc.,thus lead to wide car diagnostic community.

It is a typical diagnostic device contributed by Launch to diagnostic industry concerning internet application.



X-431 V+ Product Features:



Panel PC: High configuration of hardware , fast running speed

Capacitor Screen: Multi-touch capacitor screen, more smooth operation

WIFI Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth

Portable: Reasonable PDA design, small size for easy carry

Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier

Wifi communication: Support WIFI network

Android System: Users can install and Android software

Numerous Additional Functions: Photo, video, multimedia, other software application,etc.



X-431 V+ Product Parameters:



Pannel Computer Parameters:

CPU: HUAWEI HiSilicon Quod-core 1.2G HZ

Screen:10.1 inch Multi touch capacitor Screen

Screen Resolution:1280X800

Operation system:Android4.0

Memory:1G

Storage:8GB

Battery:Polymer Lithium-ion battery, 6600mAh

Camera :0.3M pixels front , rear 3.2M pixels

Operating Temperature :0°C~+45°C

Storage Temperature :-10°C~+45°C



DBSCar Connector Parameters:



Connection: Standard OBDII Interface, Micro USB 2.0

Typical Power Consumption:(12V)Static current 25 mA,

overall unit average current 35 mA

Working Temperature: - 20 °C~6 0°C

Storage Temperature: -30°C~70°C

Working Voltage: powered by vehicle battery, DC 9V-15V

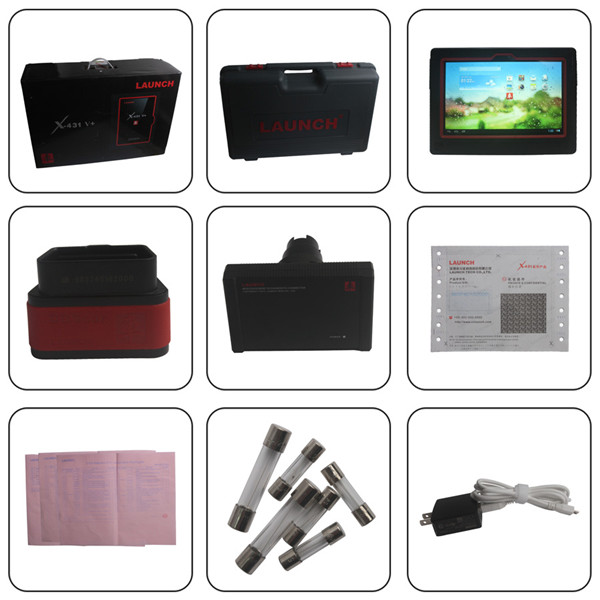

Package List:



Main Unit:



1pc x X431 V+ American host, RoHS



Connectors:



1pc x Android edition diagnostic connector (10 meters Bluetooth)

1pc x BENZ-38 diagnostic connector

1pc x DAEWOO-12 diagnostic connector integrated

1pc x AUDI-4 diagnostic connector linear

1pc x BENZ-14 diagnostic connector linear

1pc x BMW-20 diagnostic connector integrated

1pc x CHRYSLER-6 diagnostic connector integrated

1pc x DAIHATSU-4 diagnostic connector linear

1pc x FIAT-3 diagnostic connector linear

1pc x FORD-6+1 diagnostic connector integrated

1pc x GAZ diagnostic connector linear

1pc x GEELY-22 diagnostic connector integrated

1pc x GM/VAZ-12 diagnostic connector integrated

1pc x HONDA-3 diagnostic connector integrated

1pc x KIA-20 diagnostic connector integrated

1pc x MAZDA-17 diagnostic connector integrated

1pc x MITSUBISHI/HYUNDAI-12+16 diagnostic connector

1pc x NISSAN-14+16 diagnostic connector

1pc x SSANGYONG-14 diagnostic connector linear

1pc x SSANGYONG-20 diagnostic connector integrated

1pc x SUBARU-9 diagnostic connector integrated

1pc x SUZUKI-3 diagnostic connector linear

1pc x TOYOTA-17 diagnostic connector integrated

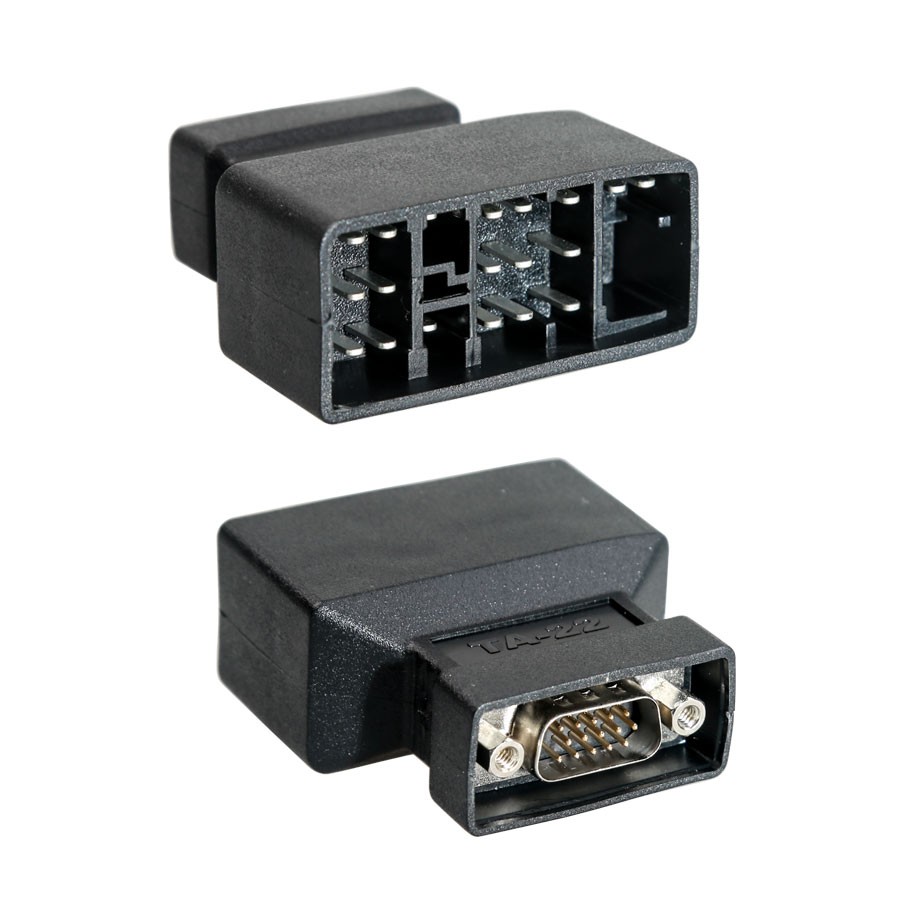

1pc x TOYOTA-22 diagnostic connector integrated

1pc x UNIVERSAL-3 diagnostic connector linear



Test Cable:



1pc x OBDII -16 extension 135mm, RoHS

1pc x OBD I Adaptor BOX switch wiring

1pc x LIGHTER

1pc x CLIPPER



Accessories:



1pc x MicroSD card, SanDisk 32G capacity, RoHS

1pc x X431 PIN envelope

4pcs x Clipper fuse 5*20mm

2pcs x Lighter fuse 6*30mm
