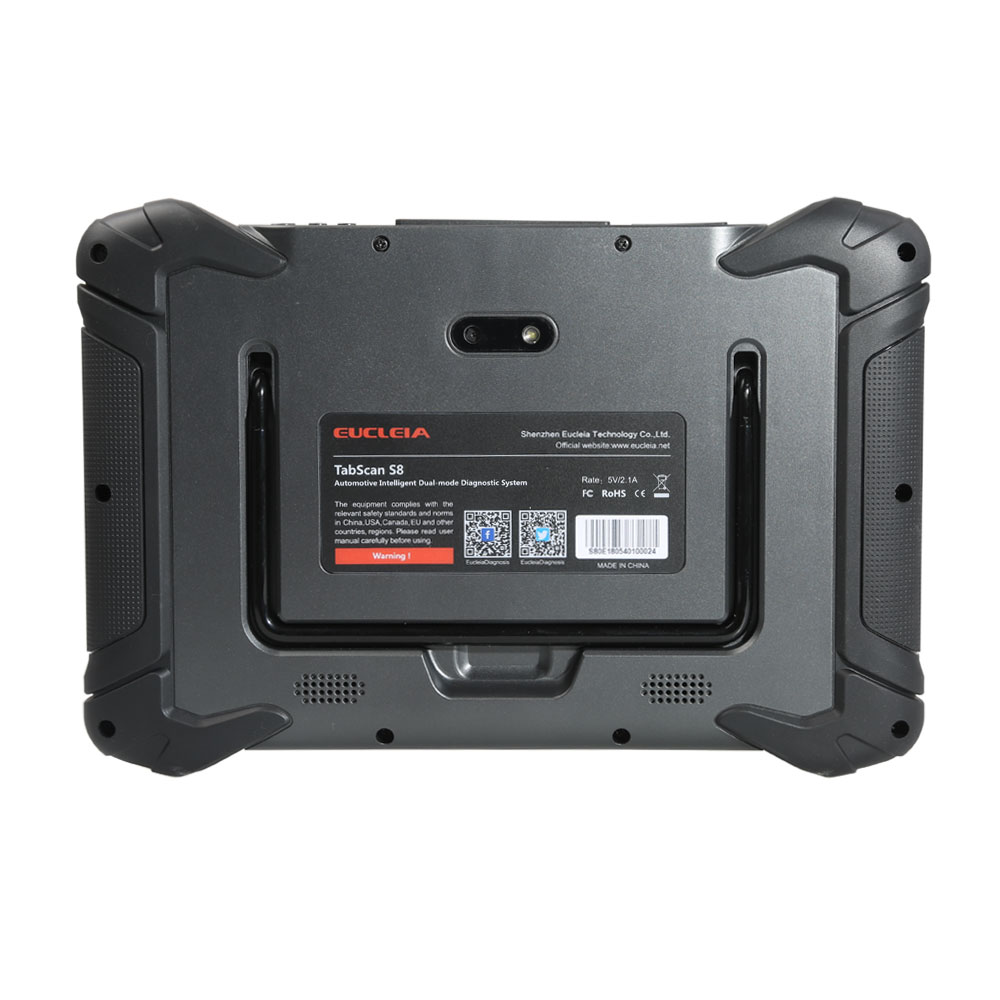

EUCLEIA TabScan S8 Automotive Intelligent Dual-mode Diagnostic System

Breakthrough into the age of high-end dual-mode:

High-end Dual-mode: Perfect adapt with software ,more powerful in universal and original manufacturer diagnosis.
Multi-purpose: The wiScan T6 VCI can be connected with tablet, PC and phone App to achieve multi-purpose.
Built with RK3288( Cortex-A17 1.8GHz CPU), 4G RAM,32G ROM, and 8" capacitive HD touch screen, Tabscan S8 efficiently provides comprehensive vehicle diagnosis and analysis.

EUCLEIA TabScan S8 Features And Advantages:


●Rk3288 tablet solution: Cortex-A17 1.8GHz CPU ,Faster Booting in 10 Seconds, Fast Loading Apps Without Delay, Webpage Speedy Loading

●Extending J2534: More PDU protocols and access were added，support programing voltage .
●Unique patent: Intelligent searching patent, tenfold faster than normal diagnosis.
●Humanity button: Real-time voltage and connection dispaly, one-click reading VIN code.
●Convenient application: Provide PCBU Query, remote assistance, workshop management and other convenient service.
● Easier assistance: Feedbacks automatically send to server which makes service more easier.

EUCLEIA TabScan S8 Functions:

Diagnosis function: Read and clear DTC, live data, active test, ECU information, freeze frame etc.

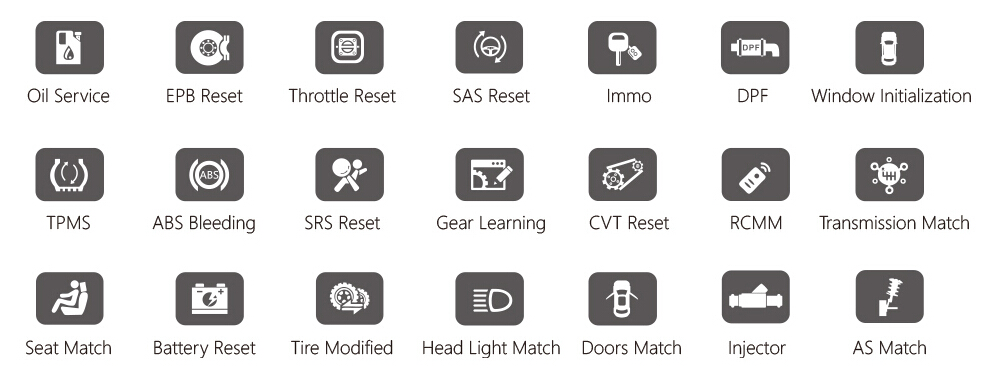

Service functions: ABS Bleeding, EPB Reset, Service Reset, CKP Learning, Throttle Reset, SAS Reset, Battery Reset, CVT Reset, TPMS, etc.
Coding function: Brush hiding functions (VW, Audi, Skoda,Seat and constantly adding)
System functions: The system also includes the most recent auto-VIN technology that identifies vehicles with one touch and exclusive auto-scan function. One-click clear DTCs, one-click update, data record and replay, workshop manager, database query, repair video research, vehicle data manager, etc.



EUCLEIA TabScan S8 Mode Two: Original Manufacturer Diagnosis
Numerous brands, accurate diagnosis, coding ,on-line programming, date searching etc.



EUCLEIA TabScan S8 Models Supported Car Models:



Models	Software
Toyota, Lexus, Scion	TIS
Honda, Acura	HDS
Volvo	VIDA
VW, Audi, Seat, Skoda, Bentley, Lamborghini	ODIS
Jaguar, Land Rover	SDD
Ford	For  IDS
Mazda	FORScan
GM	GDS2
Smart, Maybach, Benz, Sprinter	Xentry Passthru
BMW, Mini	ISTA/D/P


Eucleia TabScan S8 Support Protocols:

  Compatible SAE-J2534-1&SAE-J2534-2
  ISO-9141 K-Line
  ISO-14230 K-Line
  ISO-15765 K-Line
  ISO-11898 DWCAN
  SAE-J1850-VPW（GM Class2）
  SAE-J1850-PWM（FORD SCP）
  SAE-J2411 Single Wire CAN（GMLAN）
  SAE-J2610 SCI（Chrysler）
  SAE-J2740 GM ALDL
  SAE-J2809 (HONDA DIAG-H)
  VAG TP16 CAN
  VAG TP20 CAN（SAE J2819）
  VAG KW81（SAE J2818）
  BMW DS2
  FORD UBP

Eucleia TabScan S8 Specifications:


CPU	1.8GHz quad-core
RAM	4GB
ROM	32GB
External Storage	Support 32GB,up to 64GB
Battery	7600mAh lithium battery
Screen	8-inch capacitive HD 1280x800pixels
Operation System	Android
Interface	Micro USB 2.0,HDMI,RJ45
WIFI	WIFI2.4/5G,FPC
Bluetooth	Bluetooth V4.0(Bluetooth low energy)
Connectivity	Bluetooth
Charging Method	Desktop charger and car charger
Diagnostic Connector	7 connectors
Product Size	265mm*175mm*27.5mm
Processor	ARM 32bit Cortex M3
Flash	512KB
RAM	128KB
Support OS	Windows Xp, win7, win8, win10
Communication Connector	DB15
Wired Connection	USB Type-B,USB 2.0
Wireless Connection	Bluetooth3.0/4.0
Connectivity	Bluetooth / Connect computer using USB cable

EUCLEIA TabScan S8 Package includes:

  1pc x TabScan s8
  1pc x wiScan T6
  1pc x Main Cable
  1pc x God Cup Chery changan Fiat3
  1pc x Nissan14
  1pc x KIA20
  1pc x Honda3
  1pc x Toyota17
  1pc x BMW20
  1pc x Mazda17
  1pc x BMW Eengineer Test Main Cable
  1pc x USB connector cable
  1pc x Dual USB charger
  1pc x AC/DC adapter
  1pc x Warranty card
  1pc x User manual
  1pc x Fitting box
